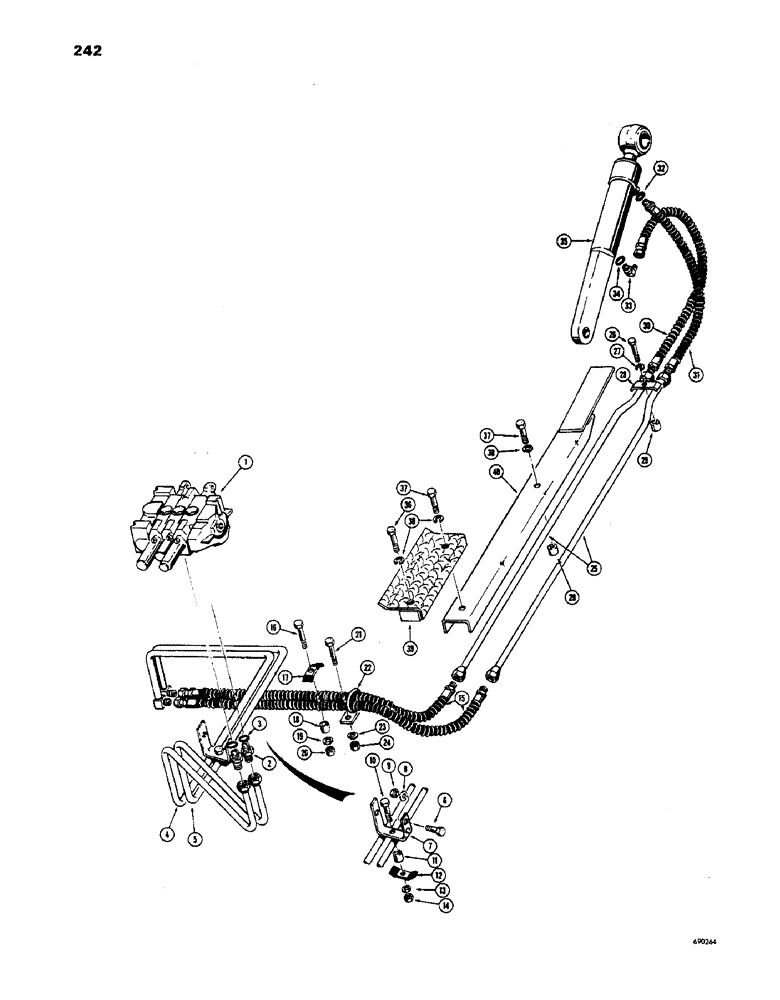

Запчасти Case 850 (242) - POWER TILT DOZER HYDRAULICS, TILT CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - dozer control (See figure 296 for valves)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D39838

TUBE - valve to tilt cylinder, closed end

1шт.

5

D39840

TUBE - valve to tilt cylinder, rod end

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

D39965

BRACKET - tube mounting

1шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

9

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

D36040

BUSHING

SPACER - tube clamp

1шт.

12

D40236

CLAMP

- tube

1шт.

13

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

15

D39842

HOSE - valve to tilt cylinder (55-1/2" long)

2шт.

16

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

17

D33316

CLAMP

- hose

1шт.

18

D36524

BUSHING

SPACER - hose clamp

1шт.

19

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

21

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

22

D40386

GUIDE - hose

1шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

25-1010

NUT,5/8"-11, G5

1шт.

25

D32815

TUBE ASSY.

TUBE - valve to tilt cylinder

2шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

28

36801

GEAR

CLAMP - tube

1шт.

29

D44696

BUSHING

SPACER - hose clamp

2шт.

30

D32809

HOSE ASSY.

HOSE - at tilt cylinder, closed end (22-1/2" long)

1шт.

31

D32811

HOSE

- at tilt cylinder, rod end (15" long), Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

R20839

FITTING

ELBOW - adjustable, 90deg. (Restrictor), Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

REF

INSTRUCTION

CYLINDER - tilt (See figure 306 for cylinders)

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

38

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

39

D32917

PLATE - step

1шт.

40

D32916

SCREW

GUARD - tube

1шт.
