Запчасти Case 850 (236) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

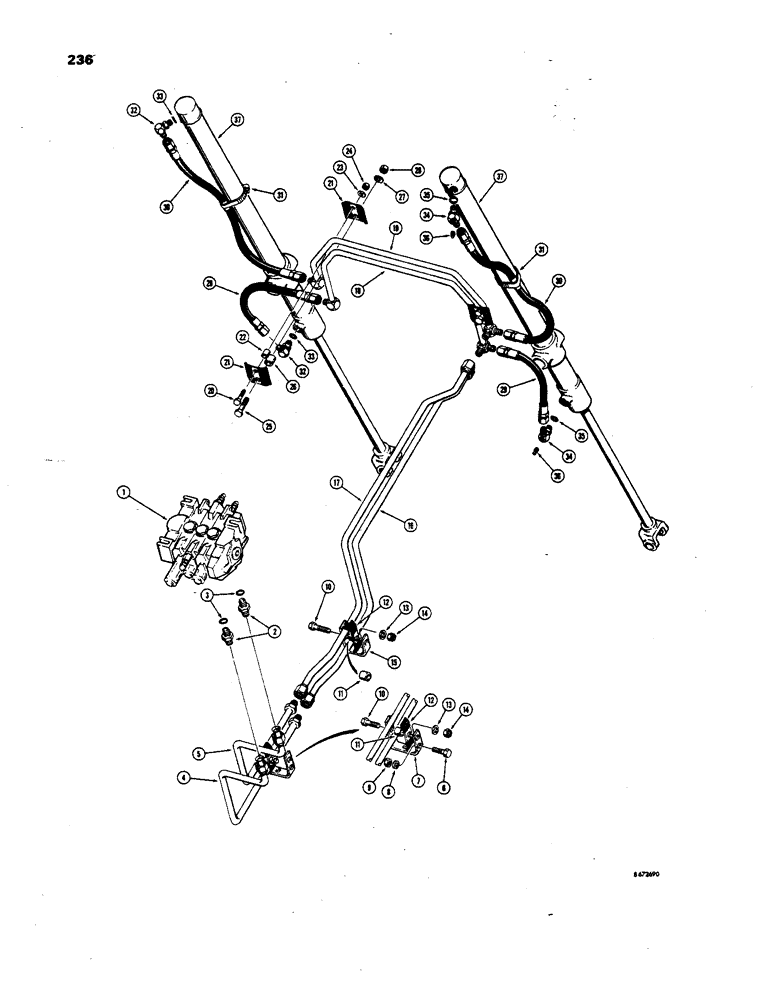

Схема запчастей Case 850 - (236) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM
32
2
10
35
9
11
31
37
28
10
4
22
32
20
25
11
13
19
5
29
18
33
1
7
29
12
37
14
24
16
23
34
36
14
30
34
35
33
8
21
21
31
26
27
36
13
12
15
30
6
3
17

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - dozer control (See figures 296 and 298 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

NLS

NO LONGER SERVICED

- valve to lift cylinder, rod end

1шт.

5

D39611

TUBE

- valve to lift cylinder, closed end

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

D39965

BRACKET - tube mounting

1шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

9

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

D36040

BUSHING

SPACER - tube clamp

2шт.

12

D40236

CLAMP

- tube

2шт.

13

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

15

D41389

BRACKET

- tube mounting

1шт.

16

D39613

TUBE

- valve to lift cylinder, rod end

1шт.

17

R32817

TUBE

- valve to lift cylinder, closed end

1шт.

18

D50753

TUBE

- valve to L.H. lift cylinder, rod end

1шт.

19

D50752

TUBE

- valve to L.H. lift cylinder, closed end

1шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

21

R21853

CLAMP

- tube

4шт.

22

D33552

BUSHING

SPACER - tube clamp, upper

2шт.

23

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

26

D35228

SPACER

- tube clamp, lower

2шт.

27

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

28

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

29

D28524

HOSE

- lift cylinder, rod end (21" long) All models except Power Tilt Dozer

2шт.

29

D28117

HOSE

- lift cylinder, rod end (23-1/2" long) Power Tilt dozer only

2шт.

30

D39601

HOSE

- lift cylinder, closed end (30" long) All models except Power Tilt Dozer

2шт.

30

NLS

NO LONGER SERVICED

- lift cylinder, closed end (27-1/2" long) Power Tilt Dozer only

2шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 deg. (L.H. lift cylinder), Incl. Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

R19576

FITTING

ELBOW - adjustable, 90deg. (R.H. lift cylinder), Includes: Ref. 35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

2шт.

37

REF

INSTRUCTION

CYLINDER - lift (See figure 304 for cylinders)

2шт.

Выбрано товаров: 39
