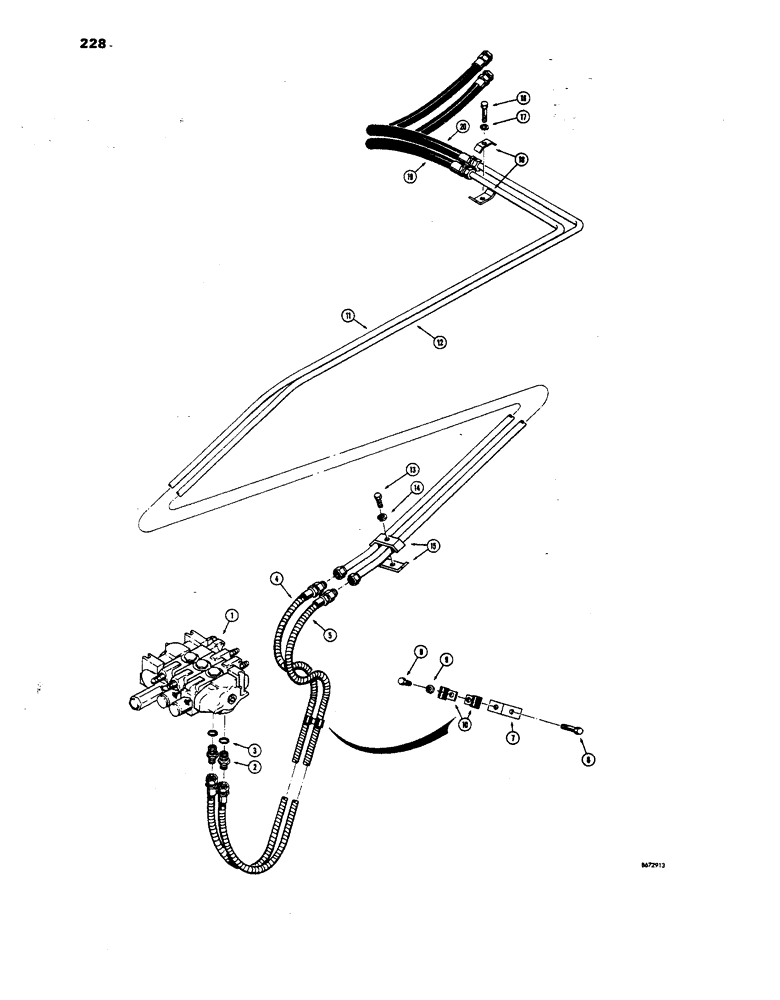

Запчасти Case 850 (228) - LOADER OPTIONAL HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 292 thru 298 for proper valves)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D42512

HOSE

- rear port to clam cylinder, closed end (76-1/2" long)

1шт.

5

D42511

HOSE

- front port to clam cylinder, open end (72" long)

1шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

D42510

BRACKET

- hose

1шт.

8

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

10

R21385

CLAMP

- hose

2шт.

11

D42508

TUBE

- valve to clam cylinder, closed end

1шт.

12

D42506

TUBE

- valve to clam cylinder, rod end

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

15

D42504

CLAMP

- tube

2шт.

16

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

18

D42504

CLAMP

- tube

2шт.

19

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- to clam cylinder, closed end (40" long)

1шт.

20

D23030

HOSE

- to clam cylinder, rod end (36-1/2" long)

1шт.
