Запчасти Case 850 (222) - LOADER DUMP AND HYDRA - LEVELING, HYDRAULICS (07) - HYDRAULIC SYSTEM

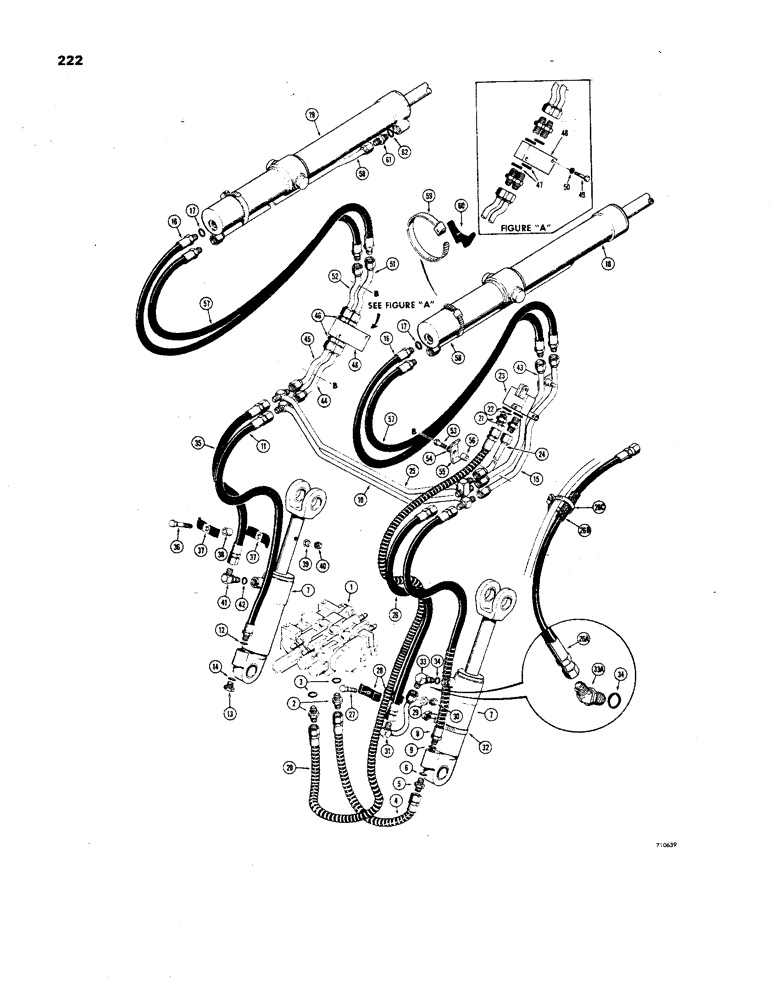

Схема запчастей Case 850 - (222) - LOADER DUMP AND HYDRA - LEVELING, HYDRAULICS (07) - HYDRAULIC SYSTEM
27
46
54
58
51
33a
37
26
60
25
16
11
35
24
10
12
22
30
34
16
7
5
28
45
43
3
14
15
29
6
61
48
7
17
49
39
26b
57
27
38
37
52
32
47
26a
41
59
36
58
18
20
55
31
1
23
53
34
8
62
57
33
50
42
17
2
9
4
26c
44
13
19
56
48
40

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 292 thru 298 for proper valve), Includes: Ref. 2 - 62

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D43612

HOSE

- R.H. leveling cylinder, eye end (31" long)

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- tube, straight, Incl. Ref. 6 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

REF

INSTRUCTION

CYLINDER - Hydra-Leveling (See figure 302 for cylinders)

2шт.

8

D39806

HOSE

- R.H. leveling cylinder, eye end (37-1/2" long), Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

D39807

TUBE

- crossover, lower

1шт.

11

D40723

HOSE

- L.H. leveling cylinder, eye end (37-1/2" long), Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Hydraulic, Includes: Ref. 14 Hex Hd, 1 1/16"-12 ORB

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

15

D41347

TUBE

- crossover to closed end R.H. dump cylinder

1шт.

16

D39801

HOSE

- tube to closed end dump cylinder (33-1/2" long), Includes: Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

REF

INSTRUCTION

CYLINDER - bucket, R.H. (See Figure 302 for cylinders)

1шт.

19

REF

INSTRUCTION

CYLINDER - bucket, L.H. (See Figure 302 for cylinders)

1шт.

20

D42709

HOSE

- loader control valve to hydraulic lock valve (90" long)

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- tube, straight, Incl. Ref. 22 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

D41050

VALVE

- hydraulic lock (See parts list Figure 218)

1шт.

24

D42637

TUBE

- lock valve to upper crossover

1шт.

25

D45329

TUBE

- crossover, upper

1шт.

26

D42969

HOSE

- R.H. leveling cylinder, rod end (36" long) Used before tractor sn. 7073534

1шт.

26a

D42401

HOSE

- R.H. leveling cylinder, rod end (27-1/2" long) Used on tractor sn. 7073534 and after

1шт.

26b

D95251

TUBE

GUARD - D42401 hose

1шт.

26c

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

27

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

Early Production models use 5/16" dia. hardware and Late Production Models use 3/8" dia. hardware.

1шт.

27

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

Early Production models use 5/16" dia. hardware and Late Production Models use 3/8" dia. hardware.

1шт.

28

R15257

CLAMP

- hose

4шт.

29

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

29

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

30

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

2шт.

30

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

31

D43132

TUBE

- R.H. leveling cylinder, rod end (Used before tractor sn. 7073534)

1шт.

32

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - D43132 tube

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable (D43132 tube), Incl. Ref. 34 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

33a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 45 deg. (D48432 hose), Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

35

D42401

HOSE

- upper crossover to rod end port L.H. Hydra-Leveling cylinder (27-1/2" long)

1шт.

36

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

Early Production models use 5/16" dia. hardware and Late Production Models use 3/8" dia. hardware.

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

Early Production models use 5/16" dia. hardware and Late Production Models use 3/8" dia. hardware.

1шт.

37

D33316

CLAMP

- hose, use 5/16" dia. bolt

2шт.

37

D40236

CLAMP

- hose, use 3/8" dia. bolt

2шт.

38

D33554

BUSHING

SPACER - clamp

1шт.

39

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

40

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock 5/16" - 18 NC)

1шт.

40

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

41

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 42 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

43

D42693

TUBE

- upper crossover to rod end port R.H. dump cylinder

1шт.

44

D46848

TUBE

- lower manifold to relief valve, L.H. side

1шт.

45

D46920

TUBE

- upper manifold to relief valve, L.H. side

1шт.

46

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 47 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

4шт.

47

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

48

D46850

VALVE

- relief (Parts list figure 236)

1шт.

49

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

50

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

51

D46844

TUBE

- lower, relief valve to dump cylinder (Closed end)

1шт.

52

D46846

TUBE

- upper, relief valve to dump cylinder (Rod end)

1шт.

53

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

4шт.

Early Production models use 5/16" dia. hardware and Late Production Models use 3/8" dia. hardware.

1шт.

53

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

Early Production models use 5/16" dia. hardware and Late Production Models use 3/8" dia. hardware.

1шт.

54

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

54

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

55

D33316

CLAMP

- tube, use 5/16" dia. bolt

4шт.

55

D40236

CLAMP

- tube, use 3/8" dia. bolt

4шт.

56

D36040

BUSHING

SPACER - clamp

4шт.

57

D39802

TUBE

HOSE - tube to rod end port, dump cylinder (32-1/2" long)

2шт.

58

D39813

TUBE

- hose to rod end port, dump cylinder

2шт.

59

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

60

D38648

BLOCK

SADDLE -, Serial Range: tube-cylinder

2шт.

61

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube, straight, Includes: Ref. 62

2шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Выбрано товаров: 81
