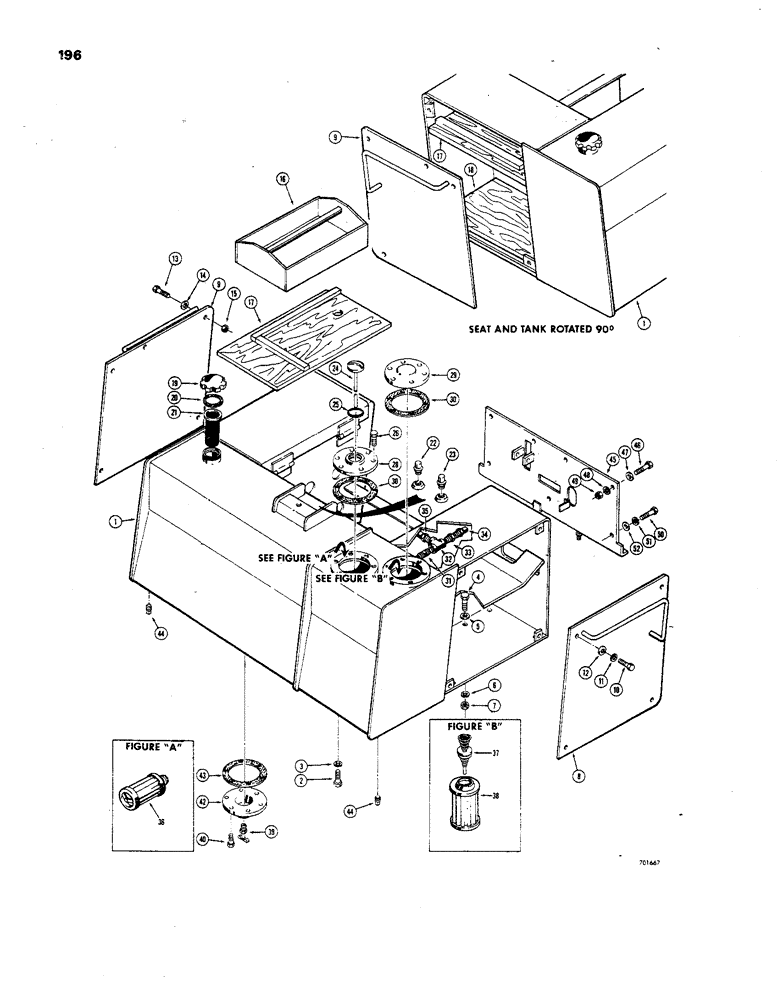

Запчасти Case 850 (196) - FUEL AND HYDRAULIC TANK ASSEMBLY (07) - HYDRAULIC SYSTEM

1

R31451

SEAT AND TANK - crawler

1шт.

2

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

6шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

4

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

6шт.

5

195-41

WASHER,5/8"

- plain () 5/8"

6шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

25-1010

NUT,5/8"-11, G5

6шт.

8

D39636

PLATE

- side, 3 spool valve and linkage (R.H.)

1шт.

8

D52037

PLATE - side, 4 spool valve and linkage (R.H.)

1шт.

9

D39638

PLATE - side, battery and tool tray (L.H.)

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

12

195-33

WASHER,1/2"

- plain () 1/2"

6шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

14

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

15

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

16

D50765

TOOL

TRAY - tool, models with 4 batteries

1шт.

16

R31452

TRAY - tool, models with 2 batteries (Not shown)

1шт.

17

D39654

BOARD - D50767 tray support

1шт.

17

R30284

BOARD - R31452 Tray support (Not shown)

1шт.

18

D39653

BOARD - 4 batteries models

1шт.

19

D31747

COVER

CAP - fuel tank

1шт.

20

D34975

GASKET

- fuel cap

1шт.

21

D36346

STRAINER ELEMENT

STRAINER - fuel

1шт.

22

D33027

BREATHER

VALVE - air inlet, fuel tank

1шт.

23

D33028

VALVE

- relief, fuel tank

1шт.

24

D39640

DIPSTICK

- hydraulic oil level indicator

1шт.

25

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "O" ring, dipstick

1шт.

26

D50550

BOLT

- special

12шт.

28

D34977

CAP

COVER - hydraulic reservoir

1шт.

29

D34976

COVER - hydraulic reservoir

1шт.

30

D50547

GASKET,1.52mm Thk

- reservoir cover

2шт.

31

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe (1/4" NPT x 7/8") If required

1шт.

32

221-431

TEE

- pipe, female (If required)

1шт.

33

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

REDUCER BUSHING - pipe (If required)

1шт.

34

R15536

VALVE

- relief, hydraulic reservoir (1/8" NPT)

1шт.

35

R15538

VALVE

- air inlet, hydraulic reservoir (3/8" NPT)

1шт.

36

D33557

FILTER, ELEMENT

FILTER - hydraulic reservoir, suction line

1шт.

37

L51620

VALVE

- pressure relief

1шт.

38

D35995

STRAINER ELEMENT

FILTER - hydraulic reservoir, return line

1шт.

39

217-81

VALVE

DRAIN COCK - fuel tank

1шт.

40

D50550

BOLT

- special

6шт.

42

D34979

COVER

- fuel tank

1шт.

43

D50547

GASKET,1.52mm Thk

- fuel tank cover

1шт.

44

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT)

2шт.

45

D39670

PLATE - heel (Non-power Angle Tilt Pitch Dozers)

1шт.

45

D52290

PLATE - heel (Power angle Tilt Pitch Dozers)

1шт.

46

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

47

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

48

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

49

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

50

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

51

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

52

195-33

WASHER,1/2"

- plain () 1/2"

2шт.
