Запчасти Case 850 (142) - BASIC TRACTOR HYDRAULICS, CONVERTER TO TRANSMISSION (07) - HYDRAULIC SYSTEM

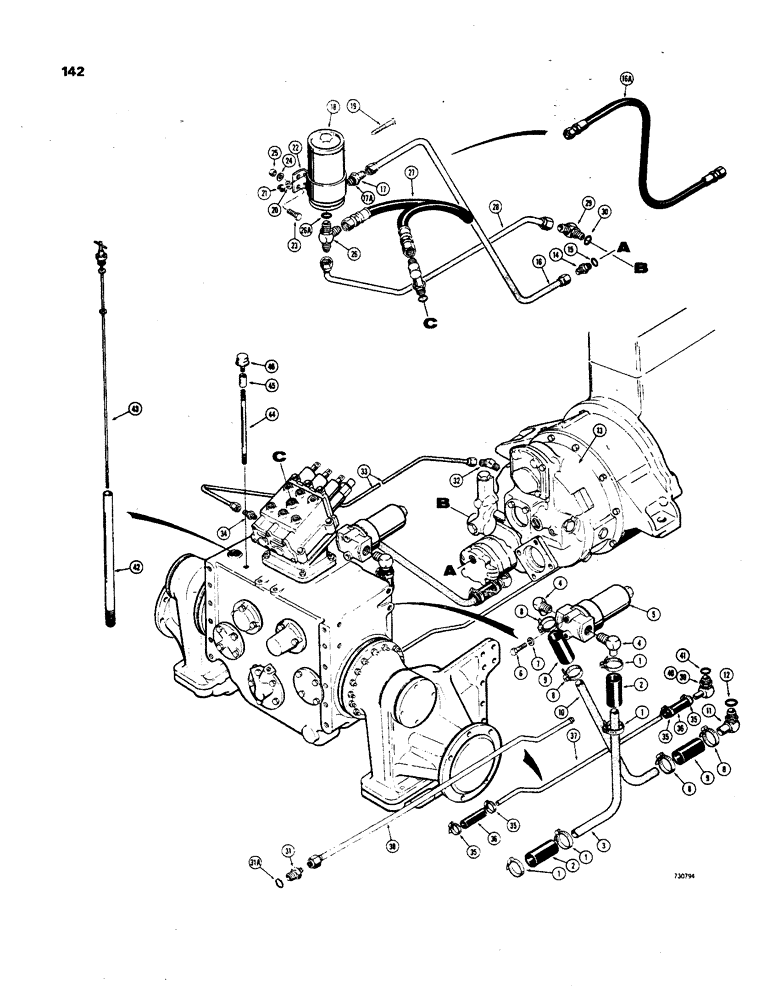

Схема запчастей Case 850 - (142) - BASIC TRACTOR HYDRAULICS, CONVERTER TO TRANSMISSION (07) - HYDRAULIC SYSTEM
13
17
10
45
18
35
11
8
1
14
30
37
16
19
36
9
39
29
12
1
9
33
31
34
24
25
4
2
7
8
44
8
40
41
16a
38
31a
27
28
1
36
1
21
46
22
42
26a
4
5
35
35
23
43
17a
3
32
20
26
15
35
8
6
2

Артикул

Название

Примечание

Количество

1

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

D39846

TUBE

-, Serial Range: transmission-filter

1шт.

4

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

STEM - hose, 90deg.

2шт.

5

D43639

FILTER, ENGINE OIL

FILTER - transmission hydraulic oil (Parts list Figure 146)

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

9

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

10

D39848

TUBE

- filter to torque converter pump

1шт.

11

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

STEM - hose, 90deg., Includes: Ref. 12

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

REF

INSTRUCTION

TORQUE CONVERTER - see figure 102 for proper converter

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - tube, straight (D44094 pump), Includes: Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" RING

1шт.

14

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight (D49432 pump), Incl. Ref. 15 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

16

D39860

TUBE

- torque converter pump to filter (Use 36942 pump)

1шт.

16a

36942

HOSE

- pump to filter, 44" long (If used)

1шт.

17

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 17A

1шт.

17a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

NLS

NO LONGER SERVICED

FILTER - transmission hydraulic oil (Parts list Figure 146)

1шт.

19

75-544

RHMS - 5/16" - NC x 2-3/4"

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

22

D31217

BRACKET

- filter

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

25

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

26

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- male, adjustable, Includes: Ref. 26A

1шт.

26a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

D28117

HOSE

- filter to transmission control valve (23 - 1/2" long)

1шт.

28

D39856

TUBE

- filter to torque converter

1шт.

29

R19576

FITTING

ELBOW - adjustable, 90deg. (Special), Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight (D49420 tube), Incl. Ref. 31A 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

31a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45 deg.

1шт.

33

D39850

TUBE

- torque converter to transmission control valve

1шт.

34

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

35

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2-4шт.

36

R24723

HOSE

- low pressure, 3" long x 5/8" I.D.

1-2шт.

37

D39847

TUBE

- return (Without flared fitting and nut), 1/2"

1шт.

38

D49420

TUBE

- return (With flared fitting and nut), 5/8"

1шт.

39

R19864

SUN VISOR

ELBOW - hose, 90deg. (Special) D39847 tube

1шт.

40

217-350

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90deg. hose stem, D49420 tube, Includes: Ref. 41

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (R19864 and D49424 elbows)

1шт.

42

R25550

TUBE - gauge guide

1шт.

43

R25549

GAUGE - oil level, transmission

1шт.

44

A8288

PIPE - 1/4" NPT x 10-7/16"

1шт.

45

221-327

X

COUPLING - 1/4" NPT

1шт.

46

A27173

BREATHER

- transmission

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

31a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

Выбрано товаров: 53
