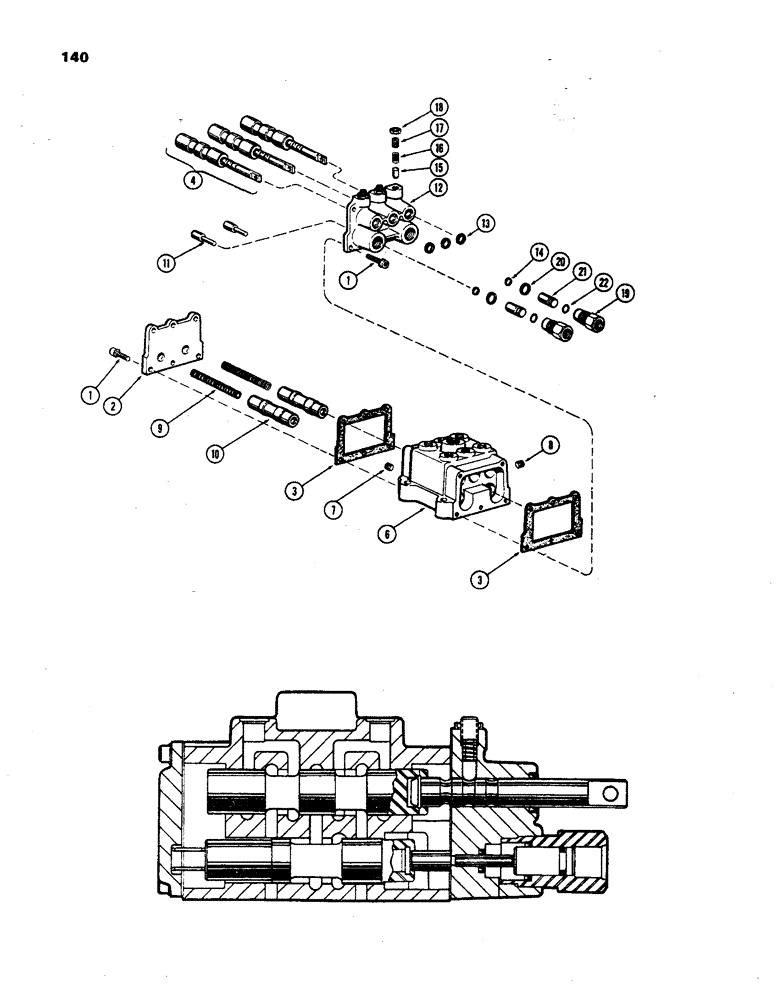

Запчасти Case 850 (140) - CONTROL VALVE (07) - HYDRAULIC SYSTEM

R20724

VALVE

ASSY. - control, transmission (3 spool), Includes: Ref. 1 - 22

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - (1/4 x 2-5/8" N.F. Sems)

11шт.

2

R21384

COVER

- valve, rear

1шт.

3

35665

GASKET

- cover, front & rear

2шт.

4

71146

HOSE

ASSY. - valve shift

3шт.

6

NSS

NOT SOLD SEPARAT

BODY - control valve (Order R20724)

1шт.

7

221-42

X,Sltd, 1/4" NPT

PLUG - (1/4" P.T. slotted headless)

1шт.

8

221-1849

PLUG

- (1/8" P.T., hex. socket head)

2шт.

9

71125

SPRING

- brake valve

2шт.

10

74916

SPOOL

ASSY. - brake valve

2шт.

11

71141

ROD

- push, brake valve

2шт.

12

R13941

COVER ASSY

. - valve front, Includes: Ref. 13 and 14

1шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft (5/8 x 13/16 x 3/32")

3шт.

14

71133

PIN

- shaft (1/4 x 1/2 x 1/8")

2шт.

15

71120

VALVE

DETENT - valve shift

3шт.

16

71119

SPRING

- detent

3шт.

17

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set (3/8 x 1/2" N.C. hex. socket headless)

3шт.

18

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

19

A50455

HOUSING

ASSY. - brake valve piston, Includes: Ref. 20

2шт.

20

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- housing (5/8 x 13/16 x 3/32")

1шт.

21

A50457

PISTON

- brake valve (1-19/32" long)

2шт.

22

71131

RING

- quad (27/64 x 5/8 x 7/64" long)

2шт.
