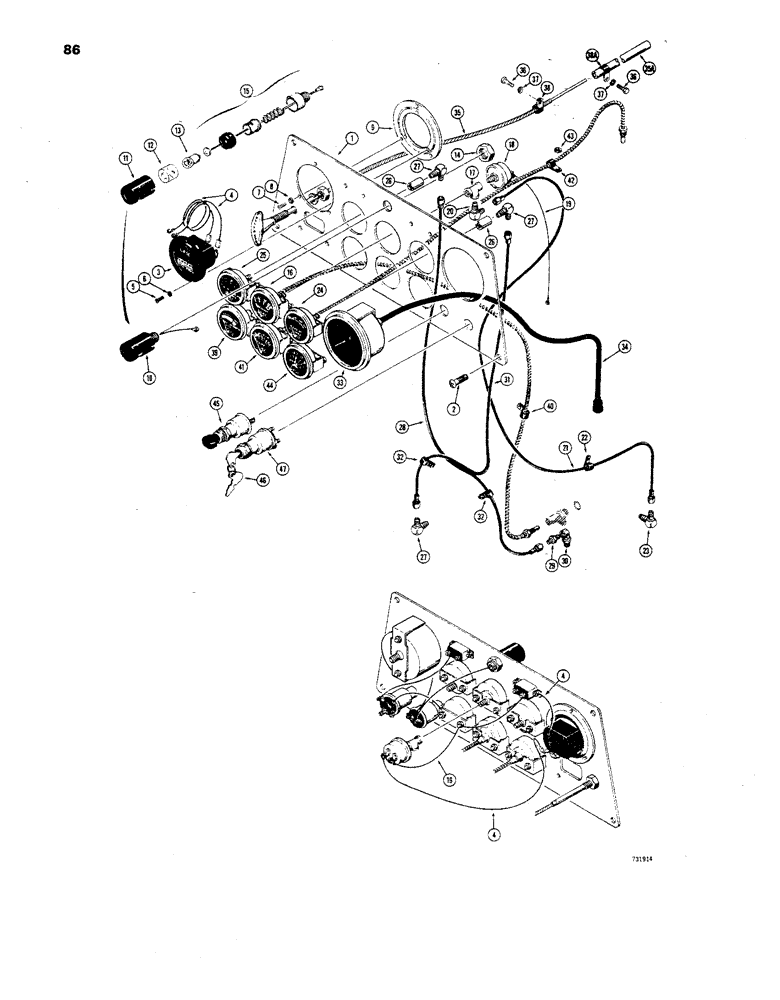

Запчасти Case 850 (086) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

1

D41010

PANEL

- instrument

1шт.

2

174-221

RHMS - 5/16" - 24 NF x 1"

4шт.

3

R24646

ELECTRICAL GAUGE

METER - engine hour

1шт.

4

D39285

ELECTRICAL WIRE

WIRE - hourmeter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware, Includes: Ref. 5 and 6

1шт.

5

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

6

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2" (Zinc plated)

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

3шт.

9

D35079

DAMPER

DAMPENER - vibration

1шт.

10

D35815

LAMP

- dash, Includes: Ref. 11 - 15

1шт.

11

D37918

COVER

- lamp

1шт.

12

D37919

LENS

- lamp

1шт.

13

R19897

BULB

- lamp

1шт.

14

D39095

NUT

- hex., special

1шт.

15

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp

1шт.

16

D22583

GAUGE - engine oil pressure

1шт.

17

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, female (1/8" NPT)

1шт.

18

D28798

SWITCH

- pressure, Includes: Ref. 19

1шт.

19

D28797

ELECTRICAL WIRE

WIRE - switch

1шт.

20

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90deg., male

1шт.

21

D95116

HOSE

- oil pressure, engine

1шт.

22

49836

CLAMP

- hose

1шт.

23

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90deg., male

1шт.

24

D29570

GAUGE

- transmission oil pressure

1шт.

25

R15953

GAUGE

- torque converter oil pressure

1шт.

26

221-335

COUPLING,Pipe, 1/8" NPT

COUPLER - female

2шт.

27

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90deg., male

3шт.

28

D95113

HOSE

- oil pressure, torque converter

1шт.

29

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male

1шт.

30

D48854

FITTING

ELBOW - 90deg., male

1шт.

31

D95114

HOSE

- oil pressure, transmission

1шт.

32

49838

CLAMP

- hose

2шт.

33

D38122

TACHOMETER

- engine, R.P.M.

1шт.

34

D48095

CABLE

- tachometer

1шт.

35

R30305

CABLE

CONTROL - fuel shut-off

1шт.

35a

F19416

TUBE

- guide, fuel shut-off

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- cable, fuel shut-off

1шт.

38a

49838

CLAMP

- cable, fuel shut-off

1шт.

39

D44005

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

40

49851

SHIELD

- tube

1шт.

41

10838

ELECTRICAL GAUGE

GAUGE - water temperature, engine

1шт.

42

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tube

1шт.

43

195-29

WASHER,7/16"

- flat

1шт.

44

R18748

AMMETER

GAUGE - ammeter

1шт.

45

D35065

SWITCH

- light

1шт.

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 46 and 47

1шт.

46

D36822

KEY

- switch, set two

1шт.

47

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.
