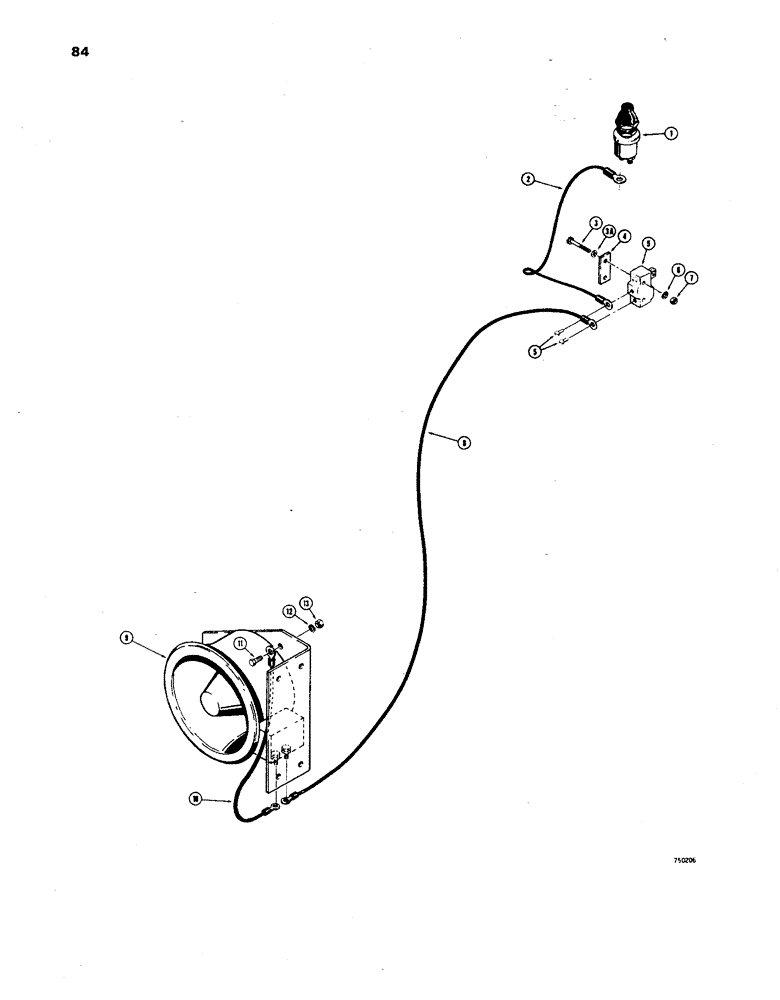

Запчасти Case 850 (084) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- starter, push button

1шт.

2

R34959

WIRE - starter switch to alarm switch

1шт.

3

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- fillister head, slotted (#6 - 32 NC x 1-1/4")

2шт.

3a

195-7

WASHER,#6

- plain, #6

2шт.

4

R31181

PLATE

SPACER - plate

1шт.

5

D40921

SWITCH

- alarm

1шт.

6

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER - med. sect. lock (#6)

2шт.

7

129-15

NUT,#6-32

2шт.

8

R33549

BOLT

WIRE - alarm, Serial Range: switch-alarm

1шт.

9

S223033

BUZZER

ALARM - back-up

1шт.

10

R34956

ELECTRICAL WIRE

WIRE - ground, alarm

1шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

13

25-104

NUT,1/4"-20, G5

3шт.
