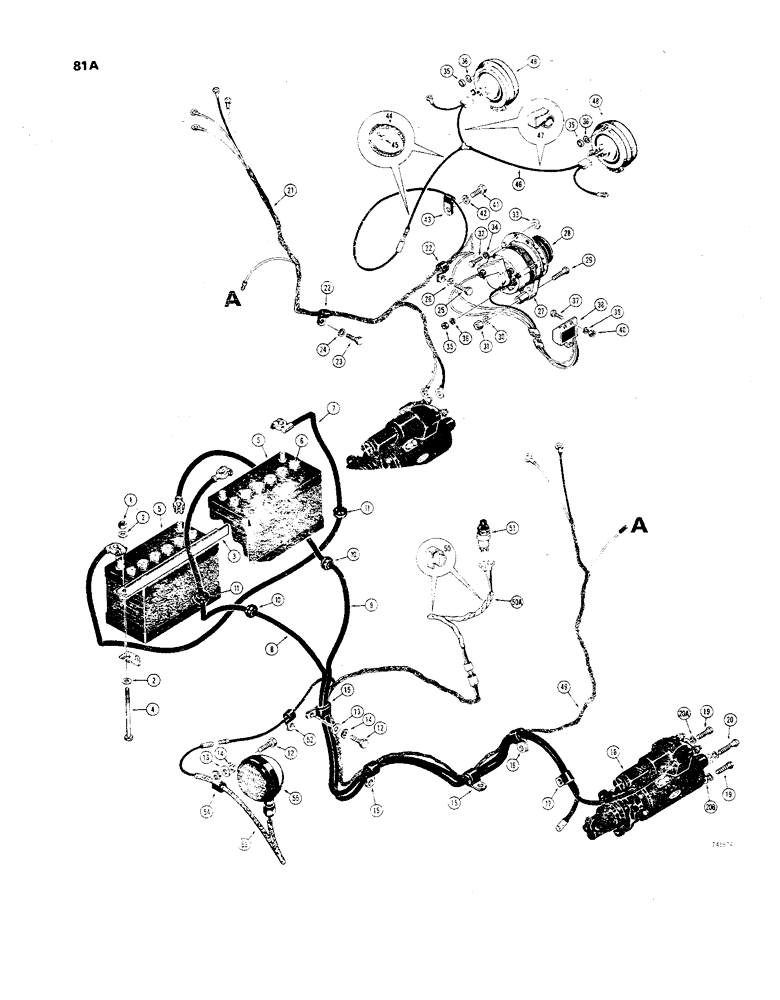

Запчасти Case 850 (081A) - ELECTRICAL SYSTEM - 2 BATTERY MODELS (06) - ELECTRICAL SYSTEMS

1

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

4шт.

2

195-21

WASHER,5/16"

WASHER - plain () 5/16"

8шт.

3

R31073

SPARE PART HOLDDOWN - battery (Angle)

2шт.

4

15-5128

HHCS - 5/16" - 18 NC x 8"

4шт.

5

A60878

BATTERY

BATTERY - 12 volt (Dry charge), Includes: Ref. 6

2шт.

Battery available for service A38411.

1шт.

6

A60553

CAP

CAP - battery, non-spill

6шт.

7

A10143

SPARE PART CABLE - jumber

1шт.

8

A32375

CABLE - battery, ground (Negative)

1шт.

9

D35910

CABLE

CABLE - battery, hot (Positive)

1шт.

10

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - battery cable

2шт.

11

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - harness

2шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

13

195-33

WASHER,1/2"

WASHER - plain () 1/2"

2шт.

14

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

15

NLS

NO LONGER SERVICED

- cable

3шт.

16

R14668

CLAMP

CLAMP - cable

1шт.

17

49838

CLAMP

CLAMP - cable, at torque converter

1шт.

18

R26136

STARTER MOTOR

STARTER - Delco Remy #1113393 (Parts list Figure 54 and 56)

1шт.

18

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

18

RC46156

CORE-STARTER

Return Number

1шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

2шт.

20

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

20a

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

20b

R24323

WASHER

WASHER - hardened

3шт.

21

D47562

HARNESS

HARNESS - wire, main

1шт.

22

49838

CLAMP

CLAMP - harness, main

2шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3/4"

1шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

27

A41360

ALTERNATOR

ALTERNATOR - electrical (Parts list Figure 52) For adjusting strap, see Figure 78 and mounting parts page 41

1шт.

28

A41361

PULLEY

PULLEY - alternator

1шт.

29

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3"

1шт.

30

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

31

25-104

NUT,1/4"-20, G5

NUT - hex. (5/16" - 18 NC)

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

33

A27343

BUSHING

WASHER - special (5/16")

1шт.

34

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

35

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

9шт.

36

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

9шт.

37

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

38

A75072

REGULATOR

REGULATOR - voltage

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

40

25-224

SQUARE NUT,Sq, 1/4"-20

NUT - hex. (1/4" - 20 NC)

3шт.

41

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

42

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

43

49857

CLAMP

- cable

1шт.

44

D41077

STRAP

STRAP - retainer, head light

2шт.

45

D41075

STUD

STUD - strap mounting

2шт.

46

D35912

ELECTRICAL WIRE

WIRE WIRE - head light

1шт.

47

NLS

NO LONGER SERVICED

CLAMP - wire

2шт.

48

D41701

LAMP

HEADLIGHT - 24 volt (Parts list Figure 82)

2шт.

49

D48256

HARNESS

HARNESS - wire, tail light and starter button

1шт.

50

49874

ROD

CLIP - wire, starter button

2шт.

50a

D39130

ELECTRICAL WIRE

WIRE HARNESS - push button switch

1шт.

51

D34924

SWITCH

SWITCH - push button starter

1шт.

52

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLAMP - wire, tail light

1шт.

53

NLS

NO LONGER SERVICED

BUSHING,LARGE WIRE - tail light

1шт.

54

49832

CLAMP

CLAMP - wire, tail light

1шт.

55

D35913

LAMP

TAIL LIGHT - 24 volt (Parts list Figure 82)

1шт.
