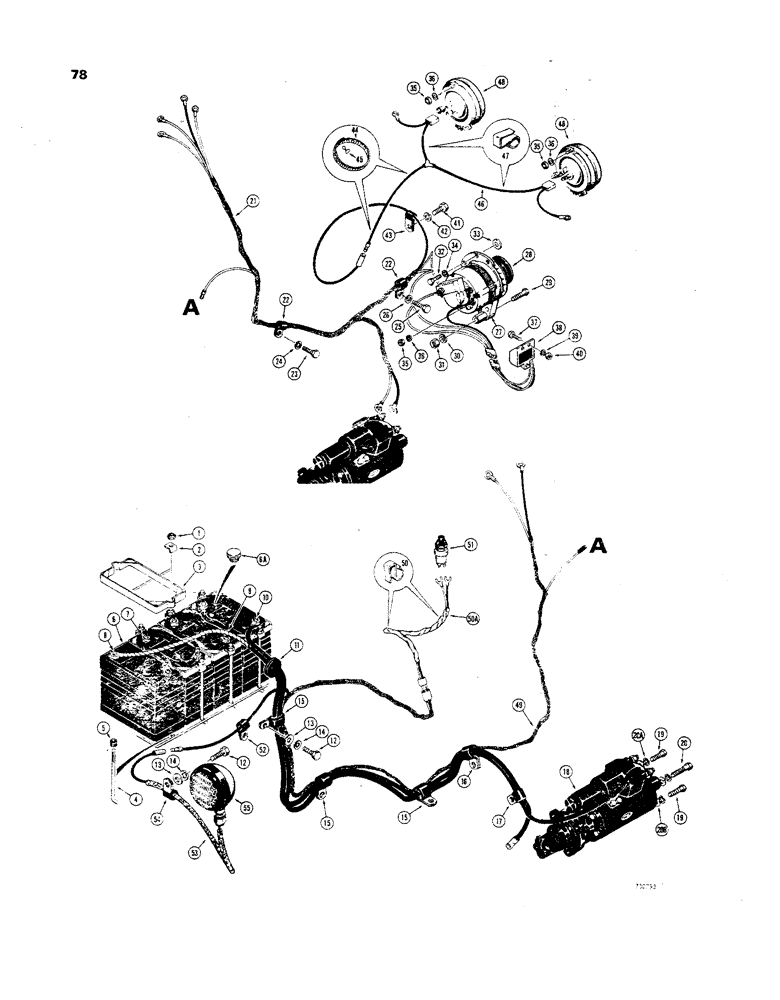

Запчасти Case 850 (078) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

8шт.

2

D29453

CLIP

CLIP - hold down

8шт.

3

D41571

NO LONGER SERVICED

FRAME - battery hold down

4шт.

4

D39624

STUD

STUD - battery hold down

8шт.

5

G46096

RETAINER

RETAINER - stud, rubber

8шт.

6

D44313

SPARE PART BATTERY - 6 volt, dry type (Without Tilt-Tite caps)

4шт.

6

R26458

SPARE PART BATTERY - 6 volt, dry type (With Tilt-Tite caps)

4шт.

6a

A60553

CAP

CAP - battery, non-spill

12шт.

7

72176

CABLE

CABLE - battery, jumper

3шт.

8

32375

CABLE

SPARE PART CABLE- battery, ground (Negative)

1шт.

9

D39621

NO LONGER SERVICED

WRAP - ground cable

1шт.

10

D35910

CABLE

CABLE - battery, hot (Positive)

1шт.

11

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - battery cable

1шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

13

195-33

WASHER,1/2"

WASHER - plain () 1/2"

2шт.

14

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

15

49891

CLAMP

- cable

3шт.

16

R14668

CLAMP

CLAMP - cable

1шт.

17

49838

CLAMP

CLAMP - cable, at torque converter

1шт.

18

R20745

SPARE PART STARTER - Delco Remy 1113371 (Before crawler Sn. 7074489) Service with R26136 starter, 13-848 bolt, (2) 13-832 bolts and (3) 92-8 lockwashers

1шт.

18

A15485

STARTING MOTOR

STARTER - Delco Remy 1113370 (Before Sn. 7074489) Service with R26136 starter, 13-848 bolt, (2) 13-838 bolts, (3) 92-8 lockwashers and (3) R24323 washers (Parts list Figure 58 and 60)

1шт.

18

R26136

STARTER MOTOR

STARTER - Delco Remy #1113393 (Sn. 7074489 and after) Parts list Figures 54 and 56

1шт.

18

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

18

RC46156

CORE-STARTER

Return Number

1шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

2шт.

20

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

20a

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

20b

R24323

WASHER

WASHER - hardened

3шт.

21

D47562

HARNESS

HARNESS - wire, main

1шт.

22

49838

CLAMP

CLAMP - harness, main

2шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3/4"

1шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

27

A41360

ALTERNATOR

ALTERNATOR - electrical (Parts list Figure 52) For adjusting strap, see Figure 78 and mounting parts page 41

1шт.

28

A41361

PULLEY

PULLEY - alternator

1шт.

29

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3"

1шт.

30

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

31

25-104

NUT,1/4"-20, G5

NUT - hex. (5/16" - 18 NC)

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

33

A27343

BUSHING

WASHER - special (5/16")

1шт.

34

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

35

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

9шт.

36

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

9шт.

37

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

38

A75072

REGULATOR

REGULATOR - voltage

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

40

25-224

SQUARE NUT,Sq, 1/4"-20

NUT - hex. (1/4" - 20 NC)

3шт.

41

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

42

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

43

NLS

NO LONGER SERVICED

- cable

1шт.

44

D41077

STRAP

STRAP - retainer, head light

2шт.

45

D41075

STUD

STUD - strap mounting

2шт.

46

D35912

ELECTRICAL WIRE

WIRE WIRE - head light

1шт.

47

F43611

CLIP

CLAMP - wire

2шт.

48

D41701

LAMP

HEADLIGHT - 24 volt (Parts list Figure 82)

2шт.

49

D48256

HARNESS

HARNESS - wire, tail light and starter button

1шт.

50

F43611

CLIP

CLIP - wire, starter button

2шт.

51

D34924

SWITCH

SWITCH - push button starter

1шт.

52

49853

TOOL

CLAMP - wire, tail light

1шт.

53

D35906

BUSHING,LARGE WIRE - tail light

1шт.

54

49832

CLAMP

CLAMP - wire, tail light

1шт.

55

D35913

LAMP

TAIL LIGHT - 24 volt (Parts list Figure 82)

1шт.
