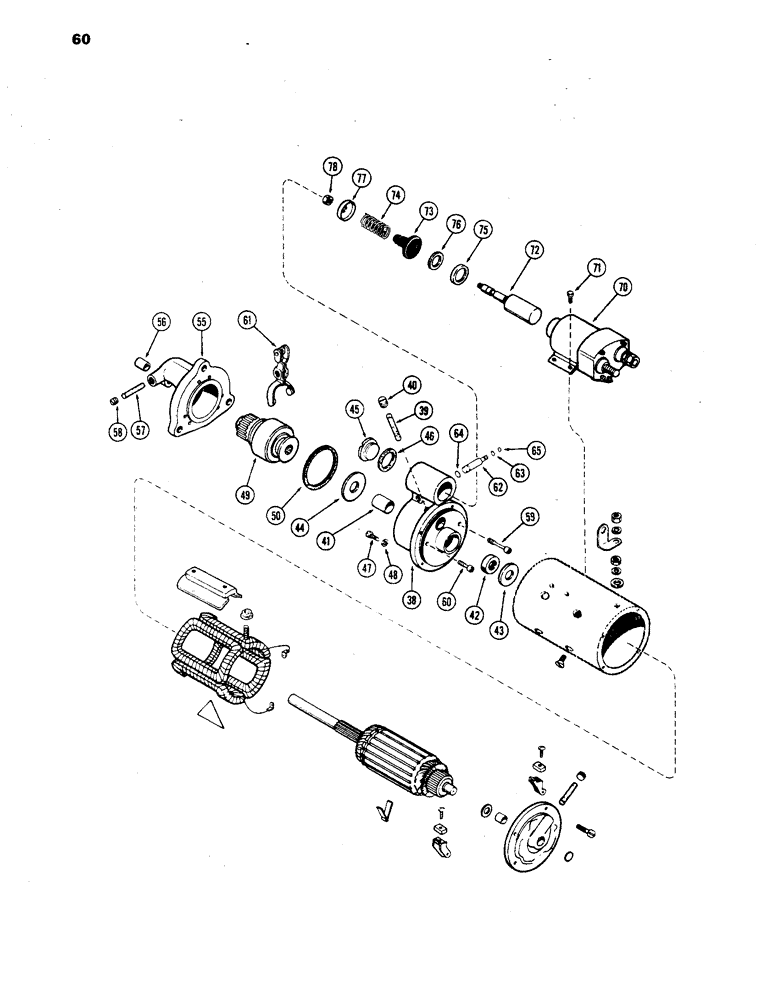

Запчасти Case 850 (060) - A15485 STARTER, USED PRIOR TO TRAC. SER. NO. 7074489 (06) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

STARTER ASSY. - (Continued from Figure 58), Includes: Ref. 38 - 78

1шт.

38

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 39 - 43

1шт.

39

R15023

WICK

- oil

1шт.

40

221-1041

PLUG

- oil wick hole (1/8" P.T., headless, sltd.)

1шт.

41

R21580

BUSHING

- (13/16 x 1 x 1-1/4")

1шт.

42

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 13/32")

1шт.

43

R15145

DISC

WASHER - brake (27/32 x 1-29/32 x 3/16")

1шт.

44

R21583

WASHER

- thrust, drive end (27/32 x 1-23/32 x 1/8")

1шт.

45

R21587

PLUG

- lever housing

1шт.

46

A41924

GASKET

- plug

1шт.

47

R21578

SCREW

- lever hsg. to frame (1/4 x 1" N.F. hex.)

4шт.

48

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

49

A42397

DRIVE

ASSY. - pinion (Replaces R21589)

1шт.

50

R21562

GASKET

- drive hsg. to lever hsg

1шт.

55

A40283

HOUSING

ASSY. - drive end, Includes: Ref. 56 - 58

1шт.

56

A40893

BUSHING

- (5/8 x 3/4 x 25/32")

1шт.

57

R15023

WICK

- oil

1шт.

58

221-1041

PLUG

- oil wick hole (1/8" P.T., headless, sltd.)

1шт.

59

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing (5/16 x 1-1/2" N..C. sckt. hd.)

1шт.

60

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing (5/16 x 7/8" N.C. sckt. hd.)

1шт.

61

D32547

LEVER

- shift control

1шт.

62

A42199

PIN

SHAFT - shift lever pivot (Replaces R21564)

1шт.

63

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - shaft (1/4 x 3/8 x 1/16")

1шт.

64

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - shaft (3/8 x 1/2 x 1/16")

1шт.

65

A40422

RING

- snap, shaft retaining

1шт.

70

A42376

SWITCH

SOLENOID ASSY. - (Replaces A15358) (See Figure 62)

1шт.

71

R15139

WASHER

SCREW - solenoid mtg. (1/4 x 3/8" N.F. hex.)

4шт.

72

A42309

PLUNGER

- solenoid (Replaces R21568)

1шт.

73

A42308

BOOT

- plunger (Replaces R21576)

1шт.

74

A41242

SPRING

- plunger return

1шт.

75

A41922

WASHER

- spring seat (13/16 x 1-3/8 x 1/32")

1шт.

76

A43380

BACK-UP RING

RETAINER - plunger spring, inner (1-3/16" hole)

1шт.

77

A43419

SEAT

RETAINER - plunger spring, outer (13/32" hole)

1шт.

78

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever (5/16" N.F. hex., jam)

1шт.
