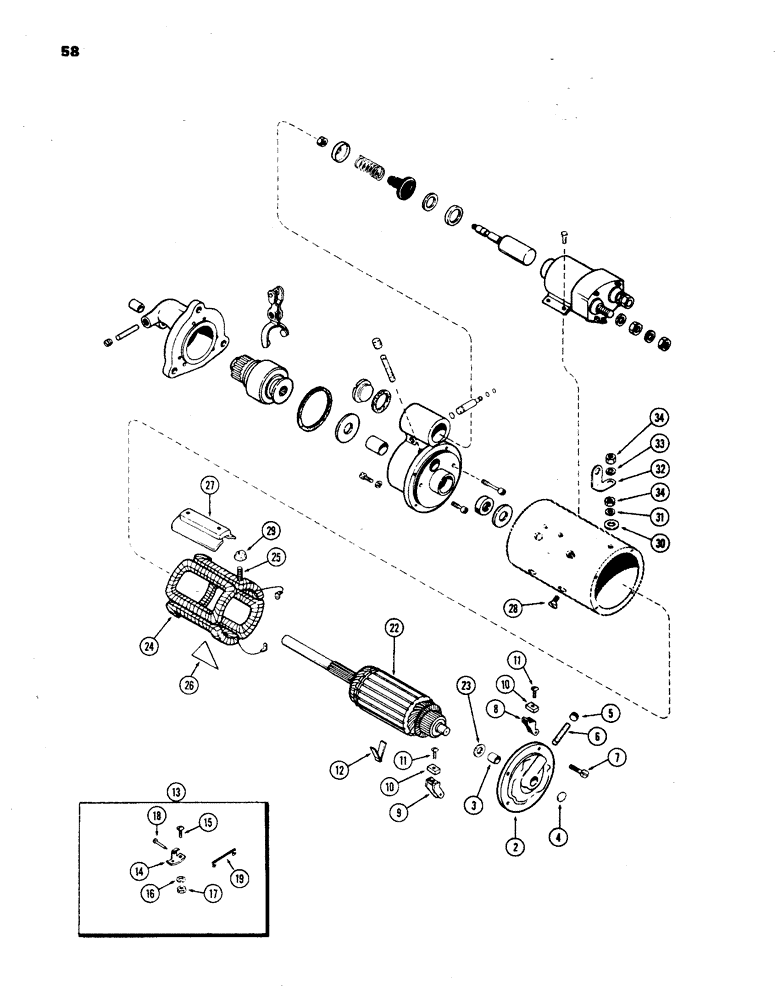

Запчасти Case 850 (058) - A15485 STARTER, USED PRIOR TO TRAC. SER. NO. 7074489 (06) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

STARTER ASSY. - (Delco #1113370) (Replaces R20745), Includes: Ref. 2 - 34

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

2

R21559

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING - (9/16 x 11/16 x 25/32")

1шт.

4

R15021

PLUG

PLUG - (3/4" expansion)

1шт.

5

221-1041

PLUG

PLUG - oil wick hole (1/8" P.T., headless., sltd.)

1шт.

6

R15023

WICK

WICK -oil

1шт.

7

R21578

SCREW

BOLT - (#32 x 5/8" ctsk. hex. hd.)

4шт.

8

R15027

HOLDER

HOLDER - brush, insulated

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (#8-32 x 13/16" self-tapping)

4шт.

12

R15025

SPRING

SPRING - brush tension

2шт.

13

R15029

BRUSH

BRUSH SUPPORT KIT, Includes: Ref. 14 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

15

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - support (#10-24 x 3/4" rd. hd.)

2шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

17

R15032

X

NUT - (#10-24 hex.)

2шт.

18

R15035

PIN

PIN - brush holder

1шт.

19

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

22

A40909

ARMATURE

ARMATURE

1шт.

23

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, commutator end (9/16 x 1 x 1/16")

1шт.

24

R21557

COIL ASSY.

COIL ASSY. - field, Includes: Ref. 25

1шт.

25

A40896

STUD

STUD - field terminal

1шт.

26

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

27

R15115

SHOE

SHOE - pole

4шт.

28

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.F., flat hd., sltd.)

8шт.

29

R15010

BUSHING

BUSHING - insulating, terminal stud, inner

1шт.

30

A42010

WASHER

INSULATOR - terminal, stud, outer (3/8 x 7/8 x 3/32")

1шт.

31

R15013

WASHER

WASHER - terminal stud (3/8 x 11/16 x 3/32")

1шт.

32

D32480

SPARE PART CONNECTOR - terminal, Serial Range: stud-solenoid

1шт.

33

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, , Terminal stud Jam, 1/2"-13, G5

2шт.
