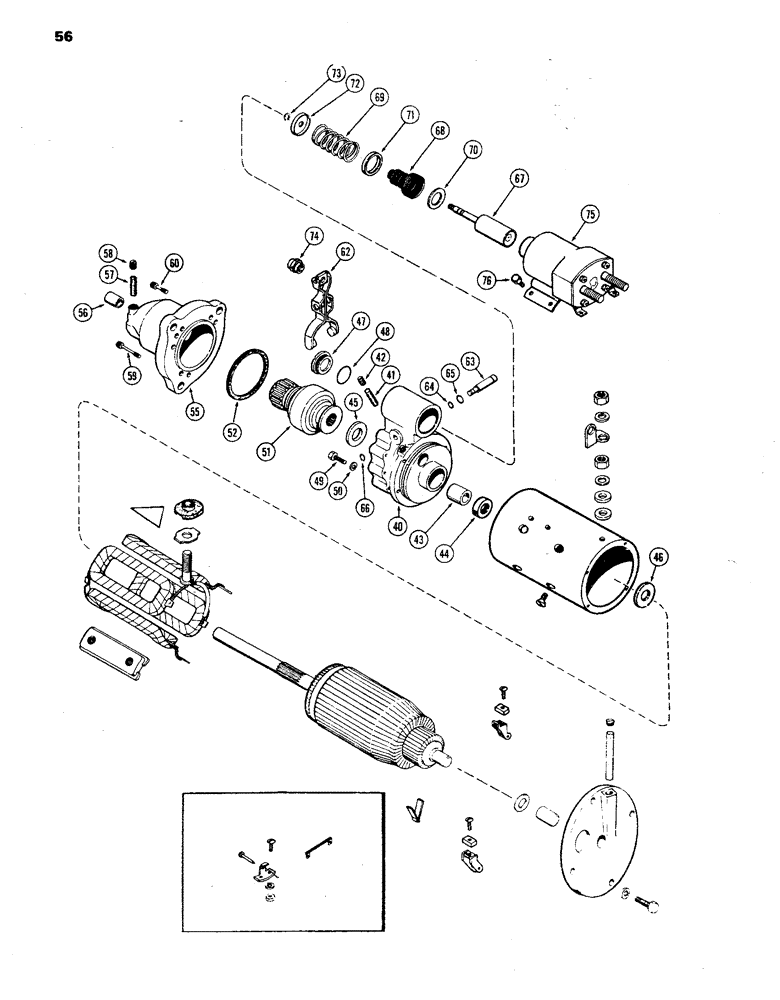

Запчасти Case 850 (056) - R26136 STARTER, 1ST USED TRAC. SER. NO. 7074489 (06) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSY. - (Continued from Figure 54), Includes: Ref. 40 - 76

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

40

R21579

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 41 - 45

1шт.

41

R15023

WICK

WICK - oil

1шт.

42

221-1041

PLUG

PLUG - (1/8" P.T., headless, sltd.)

1шт.

43

R21580

BUSHING

BUSHING - (13/16 x 1 x 1-1/4")

1шт.

44

R21582

OIL SEAL

SEAL - oil (13/16 x 1-3/8 x 13/32")

1шт.

45

R15145

DISC

WASHER - brake (27/32 x 1-29/32 x 3/16")

1шт.

46

A40892

WASHER

WASHER - thrust, drive end (27/32 x 1-3/4 x 3/16")

1шт.

47

R21587

PLUG

PLUG - housing

1шт.

48

A41924

GASKET

GASKET - plug

1шт.

49

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Housing to frame Hex, 1/4"-28 x 1", G5

5шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

51

A42397

DRIVE

DRIVE ASSY. - starter pinion

1шт.

52

R21562

GASKET

GASKET - drive hsg. to drive end

1шт.

55

A44340

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 56 - 58

1шт.

56

A40893

BUSHING

BUSHING - (5/8 x 3/4 x 25/32")

1шт.

57

R15023

WICK

WICK - oil

1шт.

58

221-1041

PLUG

PLUG - 1/8" P.T., headless, sltd.)

1шт.

59

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing (5/16 x 1-1/2" N.C., sckt. hd.)

1шт.

60

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW housing (5/16 x 7/8" N.C., sckt. hd.)

1шт.

62

D32547

LEVER

LEVER - shifter control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - shaft (1/4 x 3/8 x 1/16")

1шт.

65

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - shaft (3/8 x 1/2 x 1/16")

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

67

A42309

PLUNGER

PLUNGER - solenoid

1шт.

68

A42308

BOOT

BOOT - plunger (rubber)

1шт.

69

A41242

SPRING

SPRING - plunger return

1шт.

70

A41922

WASHER

WASHER - spring seat (13/16 x 1-3/8 x 1/32")

1шт.

71

A43380

BACK-UP RING

RETAINER - plunger spring, inner (1-3/16" hole)

1шт.

72

A43419

SEAT

RETAINER - plunger spring, outer (13/32" hole)

1шт.

73

G46146

SNAP RING,#37, Ext

Ring, Snap, , retainer to plunger #37, Ext

1шт.

74

A43856

NUT

NUT - plunger to lever (5/16" N.F. spec.)

1шт.

75

A42376

SWITCH

SOLENOID ASSY. (See Figure 62)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid mtg. (1/4 x 3/8" N.F. hex.)

4шт.
