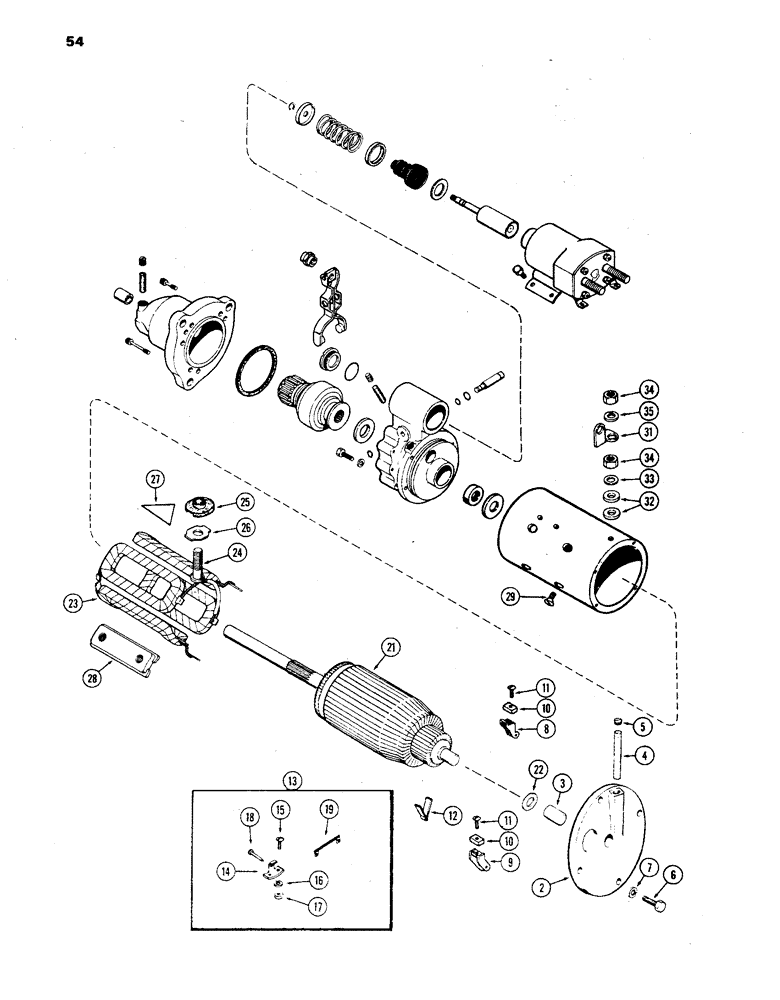

Запчасти Case 850 (054) - R26136 STARTER, 1ST USED TRAC. SER. NO. 7074489 (06) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSY. - (Delco-remy #1113403), Includes: Ref. 2 - 35

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

2

NLS

NO LONGER SERVICED

FRAME ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

A42323

BUSHING

BUSHING - shaft (9/16 x 11/16 x 25/32")

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1849

PLUG

PLUG (1/8" P.T., sckt. hd.)

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

R21590

HOLDER

HOLDER - brush, insulated

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (#8-32 x 13/16" self tapping)

4шт.

12

R15025

SPRING

SPRING - brush tension

2шт.

13

R15029

BRUSH

BRUSH SUPPORT KIT, Includes: Ref. 13 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - (Order R15029)

1шт.

15

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - support to frame (#10 x 3.4" N.F., truss hd.)

2шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

17

R15032

X

NUT - #10 N.F. hex.

2шт.

18

R15035

PIN

PIN - brush holder

1шт.

19

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

21

A40909

ARMATURE

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, comm. end (9/16 x 1 x 1/16")

1шт.

23

A43860

COIL

COIL ASSY. - field, Includes: Ref. 24

1шт.

24

A40896

STUD

STUD - field terminal

1шт.

A41925

BUSHING

BUSHING ASSY. - inner, terminal insulating, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

26

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

27

A41977

RUBBER INSULATOR

INSULATION - field coil

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes (3/8 x 5/8" N.F., flat sltd. hd)

8шт.

31

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

32

D30005

INSULATOR

INSULATOR - field stud, outer (1/2 x 1 x 3/32")

2шт.

33

D30006

WASHER

WASHER - term. stud (1/2 x 7/8 x 1/32")

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, , Terminal stud Jam, 1/2"-13, G5

2шт.

35

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.
