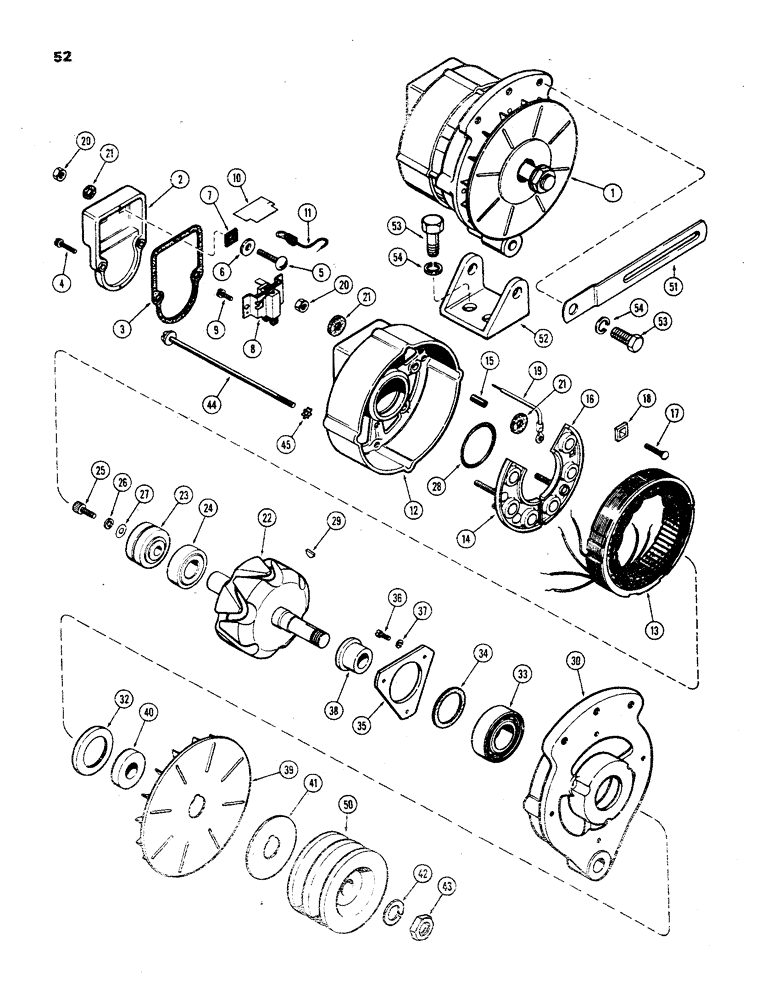

Запчасти Case 850 (052) - A41360 ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

A41360

ALTERNATOR

ALTERNATOR ASSY. - (35 amp.) (Motorola #MH24N-901), Includes: Ref. 2 - 54

1шт.

1

87297298

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297299

CORE-ALTERNATOR

Return Number

1шт.

1

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

1

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VoltT, 40 Amp Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 40 Amp Alternator

1шт.

1a

D51998

SPARE PART MILITARY ALTERNATOR - not illustrated

1шт.

2

A41435

COVER ASSY

COVER - rear housing

1шт.

3

A41341

GASKET

GASKET -, Serial Range: cover-body

1шт.

4

187-482

SPARE PART SCREW - (#8 x 3/4" hex. self-tapping)

2шт.

5

A41036

SCREW

BOLT - field wire (#10-24 rd. hd.)

1шт.

6

G49045

WASHER

WASHER - field bolt (1/4 x 5/8" x 16 gauge)

1шт.

7

A41041

INSULATOR

INSULATOR - field bolt

1шт.

8

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER ASSY. - brush

1шт.

9

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - holder (#8 x 1/2" hex. hd., self-tapping)

2шт.

10

A41042

INSULATOR

INSULATOR - brush shunt lead

1шт.

11

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

1шт.

12

A41045

COVER

HOUSING - rear

1шт.

13

A42809

STATOR

STATOR ASSY. - (Replaces A41441)

1шт.

14

A42808

DIODE

PLATE ASSY. - negative (w/3 diodes) (black color code)

1шт.

15

A41040

INSULATOR

SLEEVE - nylon (3/16 x 1/4 x 68") (cut as req'd)

1шт.

16

A41443

DIODE ELEMENT

PLATE ASSY. - positive (w/3 diodes) (red color code)

1шт.

17

A41436

SCREW

STUD - positive plate

1шт.

18

A41041

INSULATOR

INSULATOR - positive plate stud

1шт.

19

A41432

CABLE PULLING GRIP

CABLE - phase tap

1шт.

20

A41060

LOCK NUT

LOCKNUT ASSY. - w/washers (Pkg. of 7)

1шт.

21

A41038

WASHER

WASHER - insulation (3/16 x 3/4 x 1/16")

7шт.

22

A42807

ROTOR

ROTOR ASSY. - (Replaces A41442), Includes: Ref. 23 - 27

1шт.

23

A41032

SLIP RING

RING - slip, Includes: Ref. 24

1шт.

24

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - sealed (21/32 x 1-9/16 x 15/32")

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - (#10 x 5/8" N.C. sckt. hd.)

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A42811

SPARE PART INSULATOR - wire (on slip ring)

1шт.

28

A42806

RING

"O" RING - rear brg. (Replaces A41049) (1-9/16 x 1-13/16 x 1/8")

1шт.

29

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

30

A41437

HOUSING

HOUSING - front

1шт.

32

A41047

SEAL ASSY.

SEAL - bearing, front housing

1шт.

33

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - sealed, front (1 x 2 x 5/8")

1шт.

34

A41039

RETAINER

WASHER - thrust, front brg. (1-1/4 x 1-5/8 x 3/32")

1шт.

35

A41050

SPARE PART RETAINER - front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - (#8 x 3/8" N.C. slotted hd.)

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

3шт.

38

A41052

SLEEVE

SLEEVE - shaft

1шт.

39

A42431

FAN

FAN - ventilating

1шт.

40

A42432

SPACER

SPACER - fan

1шт.

41

A41051

SPACER

SPACER - pulley

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

43

A41035

NUT

NUT - pulley mounting (5/8" - 18 hex.)

1шт.

44

A41037

BOLT

BOLT - thru

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, , thru bolt Ext-Int Tooth, #8

4шт.

50

A41361

PULLEY

PULLEY - alternator

1шт.

51

A62429

STRAP

STRAP - alternator adjusting (Replaces A34548)

1шт.

52

A38492

BRACKET

BRACKET - alternator mounting

1шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

54

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.
