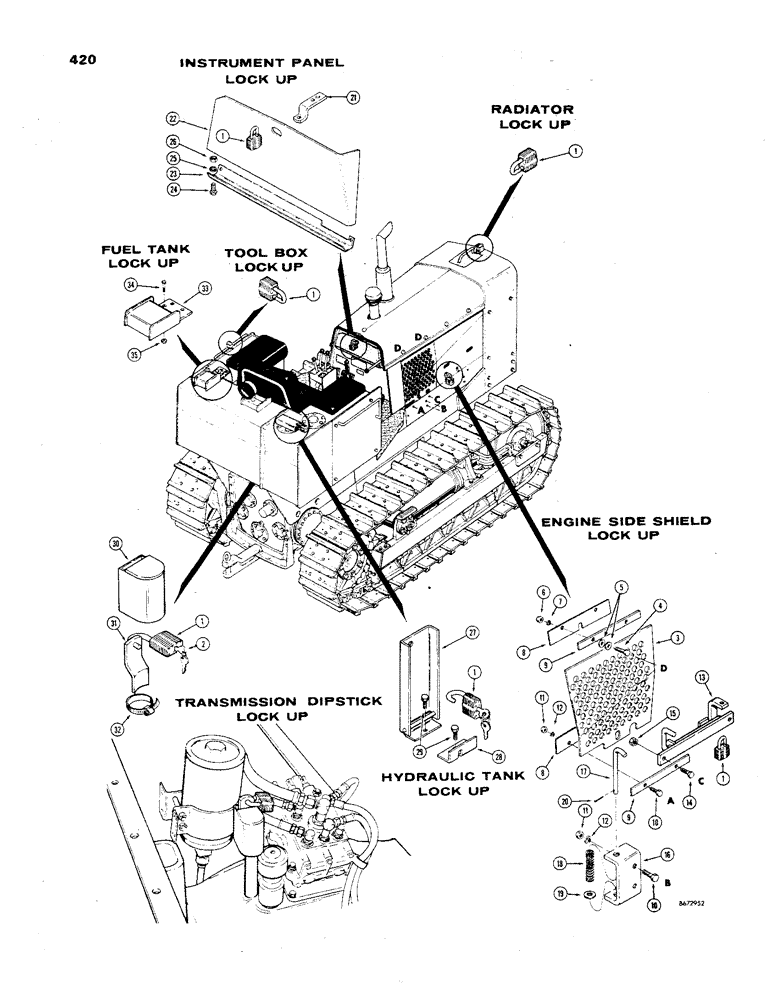

Запчасти Case 850 (420) - LOCK UP PARTS, PAD LOCK AND KEY (05) - UPPERSTRUCTURE CHASSIS

1

D40678

LOCK

PAD LOCK - tractor lock up (Master #X 2138)

7шт.

2

D40679

KEY

- D40678 pad lock, Master #X 2138 (Set of two)

1шт.

1

R29554

LOCK

PAD LOCK - tractor lock up (Master #500)

7шт.

2

R29555

KEY

- R29554 pad lock, no master no. (Set of two)

1шт.

3

D41342

GUARD

- brush, engine rear (R.H.), side shield lock up

1шт.

3

D41341

GUARD

- brush, engine rear (L.H.) Not illustrated, side shield lock up

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Engine side shield lock up Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

5

195-25

WASHER,3/8"

- plain (), engine side shield lock up 3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), engine side shield lock up

4шт.

7

92-6

LOCK WASHER,3/8"

med. sect., engine side shield lock up 3/8"

4шт.

8

D41344

RETAINER

- engine side shield lock up

4шт.

9

D41343

BUSHING

SPACER - retainer, engine side shield lock up

4шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Engine side shield lock up Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), engine side shield lock up

4шт.

12

92-6

LOCK WASHER,3/8"

med. sect., engine side shield lock up 3/8"

8шт.

13

D41726

LOCK ASSY

LOCK - engine side shield lock up

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Engine side shield lock up Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

15

131-179

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), engine side shield lock up

4шт.

16

D41345

BRACKET

- latch mounting, engine side shield lock up

2шт.

17

D41346

LATCH

- shield or guard, engine side shield lock up

2шт.

18

A31171

SPRING

- latch, engine side shield lock up

2шт.

19

195-33

WASHER,1/2"

- plain (), engine side shield lock up 1/2"

2шт.

20

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), , Engine side shield lock up 5/32" x 3/4"

2шт.

21

D41733

WASHER

TAB - locking, instrument panel

1шт.

22

D41729

GUARD ASSY.

GUARD - instrument panel lock up

1шт.

23

D41728

BRACKET

- instrument panel guard, lock up

1шт.

24

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Instrument panel, lock up Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Instrument panel lock up 1/4"

1шт.

26

25-104

NUT,1/4"-20, G5

Instrument panel lock up 1/4"-20, G5

1шт.

27

D41245

GUARD

- hydraulic tank lock up

1шт.

28

223-31

FUSE,10 Amp, Type 3AG

- hydraulic tank lock up

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hydraulic tank lock up Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

30

D41240

CAP

- transmission dipstick lock up

1шт.

31

D41253

STRAP

- locking, transmission dipstick

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - dipstick lock, transmission

1шт.

33

D41224

GUARD

- fuel cap, tank lock up

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fuel tank lock up Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

35

131-179

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), fuel tank

2шт.
