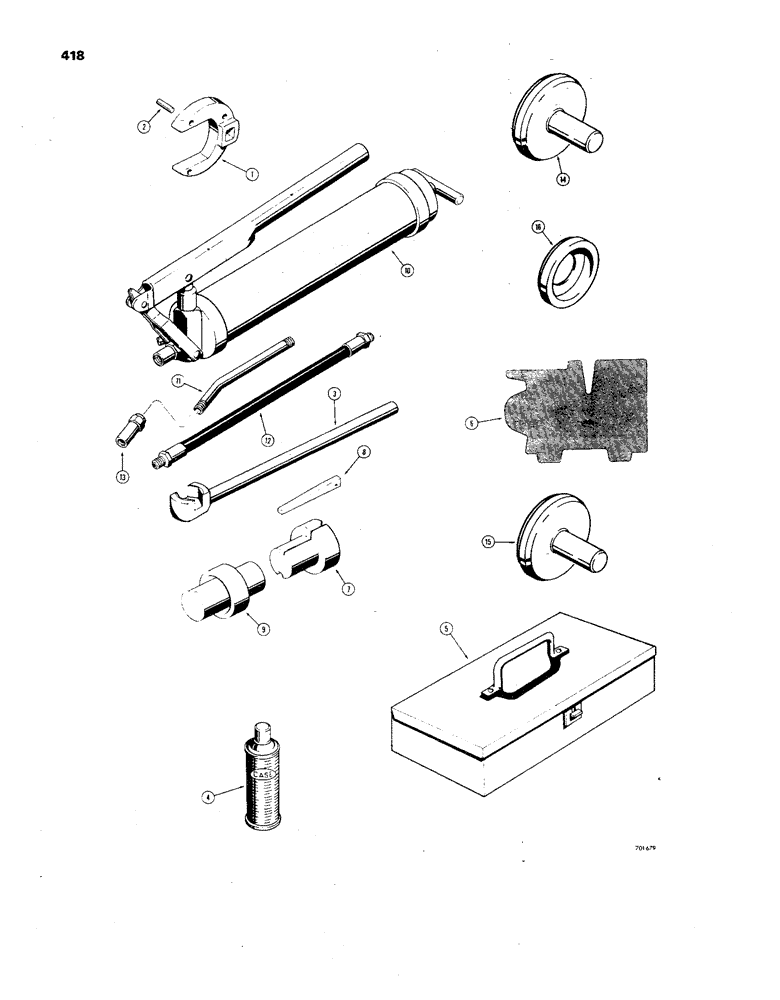

Запчасти Case 850 (418) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders), Includes: Ref. 1 - 16

1шт.

1

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods, Includes: Ref. 2

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod, Includes: Ref. 2

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod, Includes: Ref. 2

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" piston rod, Includes: Ref. 2

1шт.

2

D30107

PIN

- spanner wrench, for 2-1/2" I.D. thru 4" I.D. cylinders

3шт.

D44118

SPARE PART

PIN - spanner wrench, for 4-1/2" I.D. cylinders

3шт.

1

G33234

OPEN END WRENCH

WRENCH - spanner, for 4' I.D. cylinders with 2' thru 2-1/2" dia. piston rods, Includes: Ref. 2

1шт.

1

G33235

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/4" thru 3" dia. piston rods, Includes: Ref. 2

1шт.

2

G34596

PIN - spanner wrench, 4" and 4-1/2" I.D. cylinders

3шт.

3

R21610

TOOL

WRENCH - track bolt

1шт.

4

B17072

START SPRAY FLUID

ETHER CAN - cold starting aid

1шт.

5

73200

1шт.

TOOL KIT - optional, includes 1-6" slip joint plier, 1-5/16" x 4" screwdriver, 1-5/16" x 6" screwdriver, 1-1/2" ball peen hammer, 1 - set of 7 double open end wrneches (3/8" to 1-1/8"), 1 - 12" adjustable wrench, 1 - taper punch, 1-1/2" cut chisel, 1 - 18" jimmy bar, 1 - set of 5 Allen style wrenches (3/8" to 1") 1- socket drive adapter (3/8" female x 1/2" male), 1- 8-1/4" T-flex handle (3/8" drive), 1 - 17" sliding T-handle (3/4" drive), 1 - set of 12 point 3/4" drive sockets (1-1/16" to 1-7/8"), 1

1шт.

6

R24730

ELECTRICAL GAUGE

GAUGE - wear, track components

1шт.

D43421

TOOL KIT - service, equipment pump, Includes: Ref. 7 - 9

1шт.

7

D43423

TOOL - special, bushing removal

1шт.

8

D43424

KEY - special, bushing removal

1шт.

9

D43422

TOOL - special, bushing installation

1шт.

219-101

GUN, GREASE

GREASE GUN ASSEMBLY - crawler, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

BARREL AND LEVER - grease gun

1шт.

11

D28956

CABLE EXTENSION

EXTENSION - nozzle

1шт.

12

D28957

HOSE

- flex (12" long)

1шт.

13

D28958

COUPLING, QUICK, FEM

COUPLING - hydraulic

1шт.

14

A43008

TOOL

DRIVER - spacer, use with A50555 final drive seal kit

1шт.

15

A43007

TOOL

DRIVER - spacer, use with A50555 final drive seal kit

1шт.

16

A50387

DRIVER - seal, use with A50244 or A50245 final drive seal kits

1шт.
