(412) - D66212 4-IN-1 BUCKET OR, DOZER TILT AND ANGLE PITCH SECTION, ( CS&S # WM1030)

Запчасти Case 850 (412) - D66212 4-IN-1 BUCKET OR, DOZER TILT AND ANGLE PITCH SECTION, ( CS&S # WM1030) (05) - UPPERSTRUCTURE CHASSIS

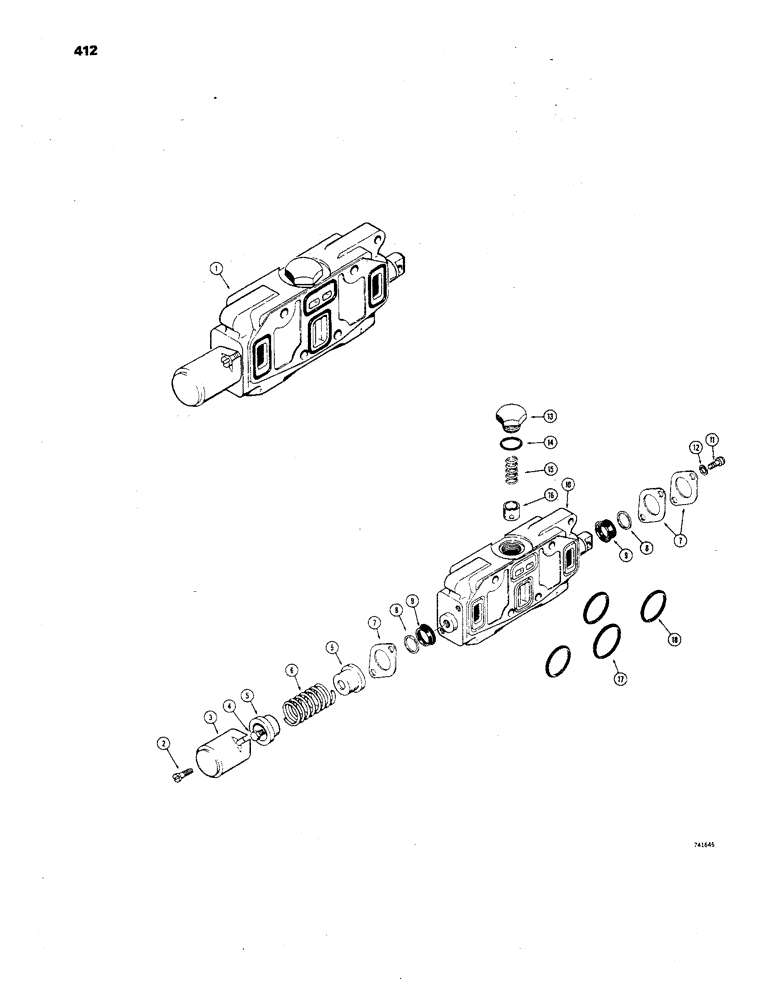

Схема запчастей Case 850 - (412) - D66212 4-IN-1 BUCKET OR, DOZER TILT AND ANGLE PITCH SECTION, ( CS&S # WM1030) (05) - UPPERSTRUCTURE CHASSIS
8
16
7
15
3
14
11
17
13
8
5
9
2
7
9
10
12
6
4
18
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D66212

VALVE

4-IN-1 BUCKET, TILT AND ANGLE PITCH SECTION - valve, Includes: Ref. 2 - 18

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHCS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - valve section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D66214

VALVE SPRING

SPRING - centering

1шт.

7

D32456

PLATE

- retaining

3шт.

8

D66216

RING

- backup

2шт.

9

D66215

SEAL

- wiper

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

11

71-58

FHCS - 5/16" - 18 NC x 1/2"

2шт.

12

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

13

39007

CAP

- check valve

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

15

R15308

VALVE SPRING

SPRING - check valve

1шт.

16

D45694

SPOOL

POPPET - check valve

1шт.

17

L32985

GASKET

- quad ring

1шт.

18

L35522

O-RING

SEAL - quad ring

3шт.
