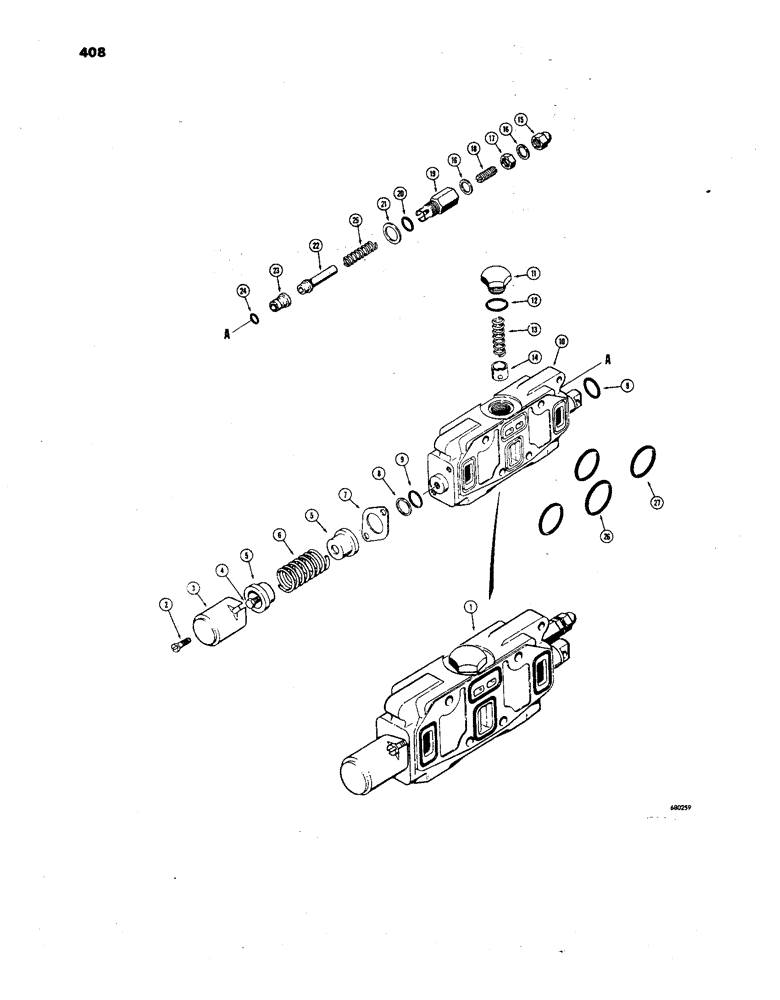

Запчасти Case 850 (408) - D41533 4-IN-1 BUCKET, DUAL PULL BEHIND AND, RIPPER SECTION, ( CS&S # A35-XDA1384) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D41533
VALVE
DUAL PULL BEHIND AND RIPPER OR 4-IN-1 BUCKET SECTION - equipment control valve, Includes: Ref. 2 - 27
1шт.
2
71-512
SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"
FHMS - 5/16" - 18 NC x 3/4"
2шт.
3
D32221
COVER
CAP - valve section
1шт.
4
D32128
BOLT (SPREADER)
BOLT - stripper
1шт.
5
D32130
GUIDE
- spring
2шт.
6
D32129
SPRING
- centering
1шт.
7
R20556
PLATE - retaining
1шт.
8
D32215
RING
- backup
1шт.
9
A27352
O-RING,0.859" ID x 1.137" OD x 0.139"
SEAL - " O" ring, 7/8" I.D. x 1-1/8" O.D.
2шт.
10
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - valve section
1шт.
11
39007
CAP
- check valve
1шт.
12
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.
1шт.
13
R15308
VALVE SPRING
SPRING - check valve
1шт.
14
D45694
SPOOL
POPPET - check valve
1шт.
D42866
VALVE
CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve, Includes: Ref. 15 - 25
1шт.
15
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
16
23150
WASHER
GASKET - copper
2шт.
17
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., lock (3/8" - 24 NF)
1шт.
18
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - set, special
1шт.
19
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
20
D26872
O-RING
SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.
1шт.
21
D31450
WASHER
- gasket
1шт.
D42865
VALVE POPPET
KIT - seat and poppet, Includes: Ref. 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
23
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
24
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
25
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)
1шт.
26
L32985
GASKET
- quad ring, 1-13/16" I.D. x 2" O.D.
1шт.
27
905952R1
COTTER PIN,M3.2 x 50
SEAL - quad ring, 1-9/16" I.D. x 1-3/4" O.D
3шт.
Выбрано товаров: 29
