(406) - D32123 4-IN-1 BUCKET OR, DOZER ANGLE, TILT AND ANGLE PITCH SECTION ( CS&S # A35-80)

Запчасти Case 850 (406) - D32123 4-IN-1 BUCKET OR, DOZER ANGLE, TILT AND ANGLE PITCH SECTION ( CS&S # A35-80) (05) - UPPERSTRUCTURE CHASSIS

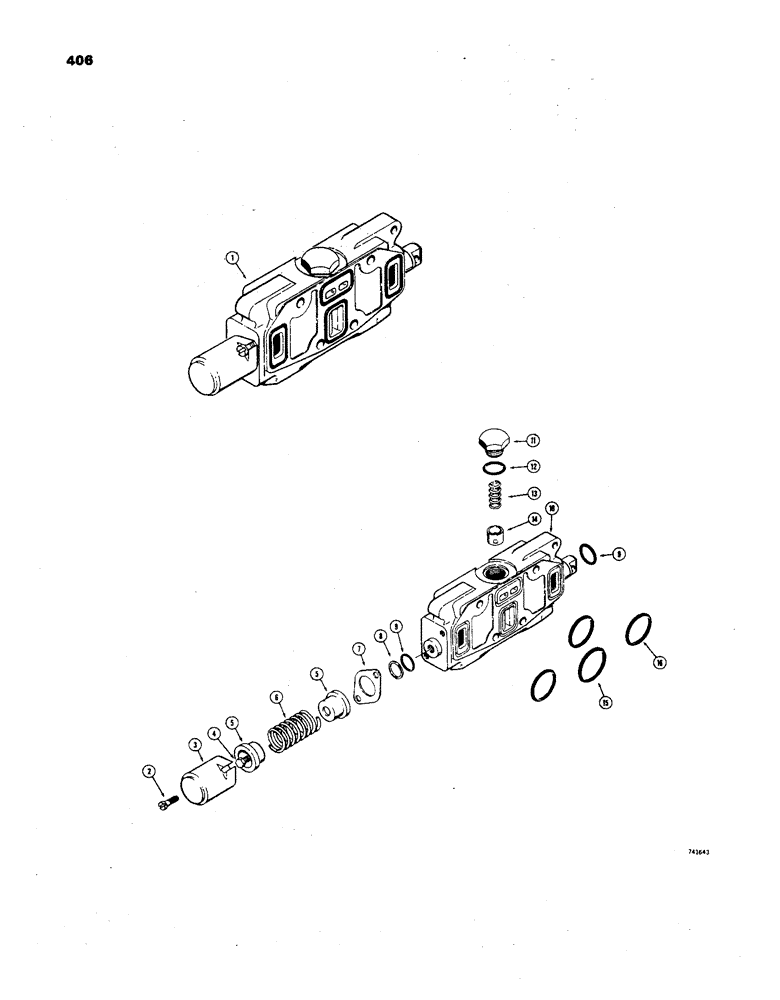

Схема запчастей Case 850 - (406) - D32123 4-IN-1 BUCKET OR, DOZER ANGLE, TILT AND ANGLE PITCH SECTION ( CS&S # A35-80) (05) - UPPERSTRUCTURE CHASSIS
3
1
15
9
5
14
13
11
16
12
9
5
7
6
2
4
16
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D32123

KNIFE SECTION

VALVE SECTION - loader and dozer control valve, Includes: Ref. 2 - 16

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - clam section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D32129

SPRING

- centering

1шт.

7

D32456

PLATE

- retaining

1шт.

8

D32215

RING

- backup

1шт.

9

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D.

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

11

39007

CAP

- check valve

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

13

R15308

VALVE SPRING

SPRING - check valve

1шт.

14

D45694

SPOOL

POPPET - check valve

1шт.

15

L32985

GASKET

- quad ring, 1-13/16" I.D. x 2" O.D.

1шт.

16

905952R1

COTTER PIN,M3.2 x 50

SEAL - quad ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.
