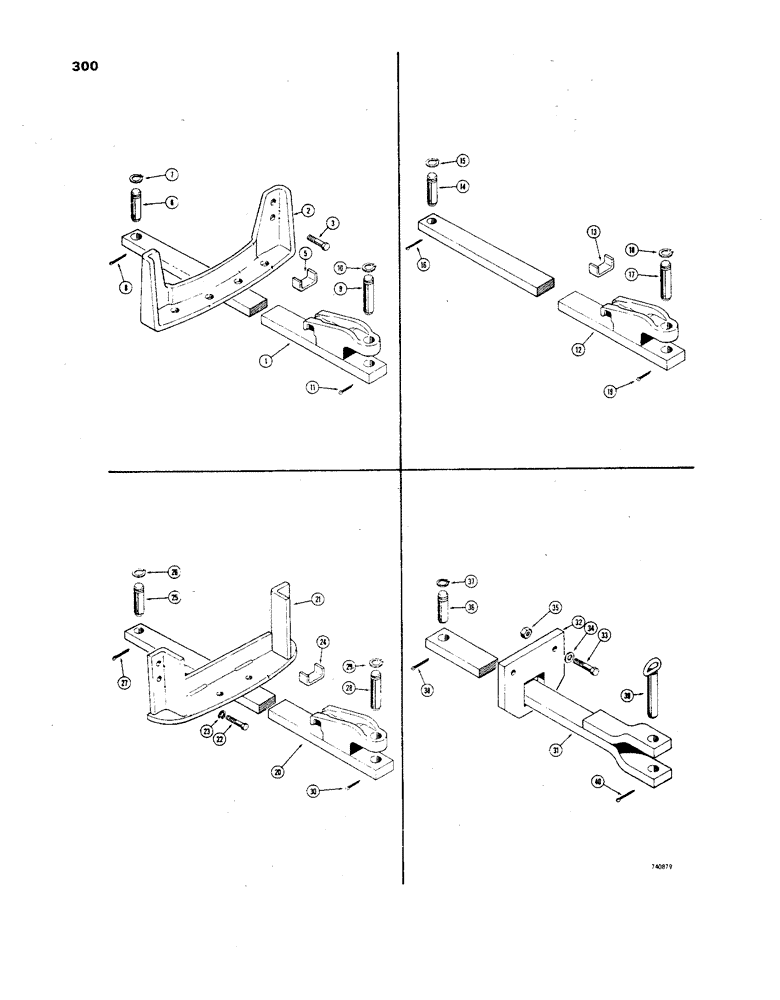

Запчасти Case 850 (300) - DRAWBARS, STANDARD DRAWBAR WITHOUT RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

NLS

NO LONGER SERVICED

DRAWBAR - standard

1шт.

2

R30272

GUIDE

- drawbar

1шт.

3

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(Guide mounting) Hex, 3/4"-10 x 1 3/4", G5

4шт.

5

R21902

PLATE

- wear

1шт.

6

R21978

PIN

- mounting, drawbar, Includes: Ref. 7

1шт.

7

R21976

RING

- snap

1шт.

8

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

9

R21979

PIN

- hitch, drawbar, Includes: Ref. 10

1шт.

10

R21976

RING

- snap

1шт.

11

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

12

D30455

DRAWBAR - standard, used with ripper

1шт.

13

R21902

PLATE

- wear, drawbar used with ripper

1шт.

14

R21978

PIN

- mounting, drawbar used with ripper, Includes: Ref. 15

1шт.

15

R21976

RING

- snap, drawbar used with ripper

1шт.

16

132-154

COTTER PIN,1/4" x 2"

n, Split (Cotter), , Drawbar used with ripper 1/4" x 2"

1шт.

17

R21979

PIN

- hitch, drawbar used with ripper, Includes: Ref. 18

1шт.

18

R21976

RING

- snap, drawbar used with ripper

1шт.

19

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Drawbar used with ripper 1/4" x 2"

1шт.

20

D33312

DRAWBAR

- winch

1шт.

21

D32635

GUIDE

- drawbar used with winch

1шт.

22

14-1448

BOLT,Hex, 7/8" - 14 x 3", Gr 5

HHCS - 7/8" - 14 NF x 3" (Guide mounting ) E30SG Winch, drawbar

4шт.

22

123-1448

HHCS - 7/8" - 9 NC x 3" (Guide mounting) 19 Winch, drawbar

4шт.

23

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Drawbar used with winch 7/8"

4шт.

24

R21902

PLATE

- wear, drawbar used with winch

1шт.

25

R21978

PIN

- mounting, drawbar, used with winch, Includes: Ref. 26

1шт.

26

R21976

RING

- snap, drawbar used with winch

1шт.

27

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Drawbar used with winch 1/4" x 2"

1шт.

28

R21979

PIN

- hitch, drawbar used with winch, Includes: Ref. 29

1шт.

29

R21976

RING

- snap, drawbar used with winch

1шт.

30

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Drawbar used with winch 1/4" x 2"

1шт.

31

D41083

DRAWBAR - backhoe

1шт.

32

D41082

BRACKET - support, drawbar used with backhoe

1шт.

33

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

HHCS - 1" - 8 NC x 3", drawbar used with backhoe

2шт.

34

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, drawbar used with backhoe

2шт.

35

25-1016

NUT,1"-8, G5

Drawbar used with backhoe 1"-8, G5

2шт.

36

R21978

PIN

- mounting, drawbar, used with backhoe, Includes: Ref. 37

1шт.

37

R21976

RING

- snap, drawbar used with backhoe

1шт.

38

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Drawbar used with backhoe 1/4" x 2"

1шт.

39

R24105

DRAWBAR

PIN - hitch, drawbar used with backhoe

1шт.

40

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Drawbar used with backhoe 1/4" x 2"

1шт.
