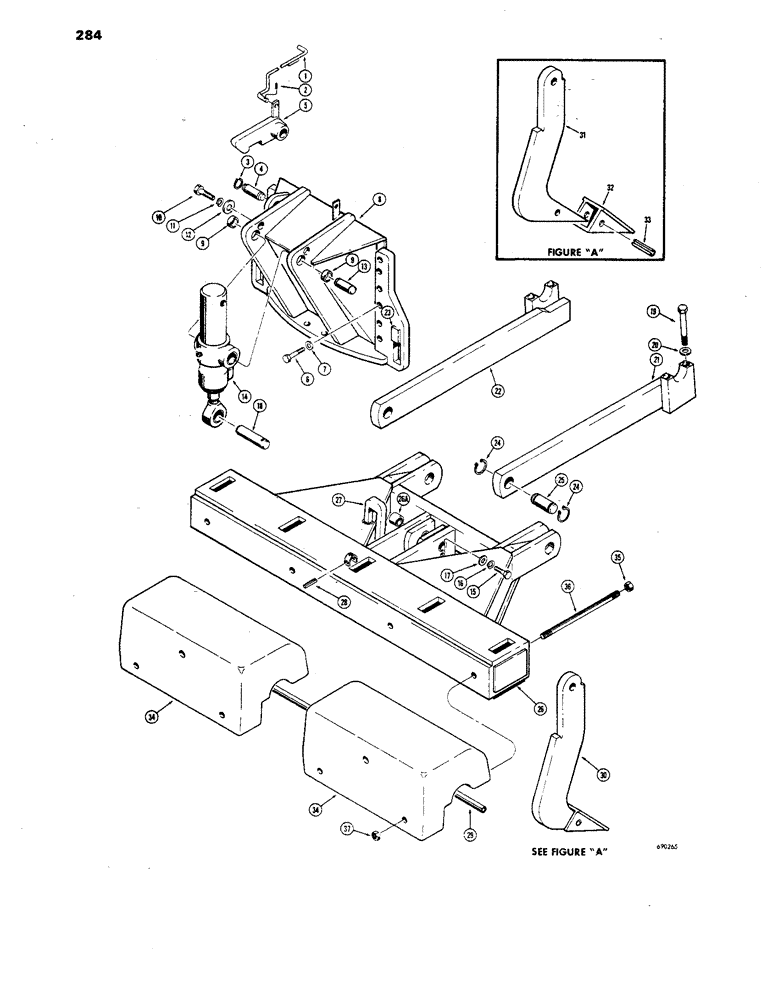

Запчасти Case 850 (284) - RIPPER - MECHANICAL (05) - UPPERSTRUCTURE CHASSIS

1

D40212

LEVER

ROD - ripper catch control

1шт.

2

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

3

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

4

D34315

PIN

- ripper catch to mounting frame

1шт.

5

D40208

HOOK

CATCH - ripper

1шт.

6

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

12шт.

8

D40166

FRAME - ripper mounting, Includes: Ref. 9

1шт.

9

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- frame

2шт.

10

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

13

D40220

PIN

- ripper cylinder to mounting frame

2шт.

14

REF

INSTRUCTION

CYLINDER - ripper (See figure 306 for cylinders)

1шт.

15

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

17

D25022

WASHER

- special, pin retaining

2шт.

18

D40223

AXLE PIN

PIN - ripper cylinder to ripper tooth mounting frame

1шт.

19

13-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

HHCS - 7/8" - 9 NC x 7"

4шт.

20

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

21

D40169

ARM

SUPPORT ARM - ripper, R.H.

1шт.

22

D40168

ARM

SUPPORT ARM - ripper, L.H.

1шт.

23

D41018

BRACE - support arm

2шт.

24

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.

25

D40218

PIN

- support arm to ripper tooth mounting frame

2шт.

26

D40224

FRAME - ripper tooth mounting, Includes: Ref. 26A

1шт.

26a

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- frame

2шт.

27

D40204

CATCH

BUCKET - ripper

1шт.

28

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

29

R21067

ROD

- tooth retaining

1шт.

30

R18255

TOOTH

ASSEMBLY - ripper, Includes: Ref. 31 - 33

3-5шт.

31

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly

1шт.

32

74172

TOOTH

- shank

1шт.

33

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

PIN, 1/2" x 2 1/4", Slotted

1шт.

34

70885

WEIGHT

- ripper, 875 lbs

2шт.

35

25-1016

NUT,1"-8, G5

4шт.

36

D35937

STUD

- 1" - 8 NC x 15-1/2"

4шт.

37

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.
