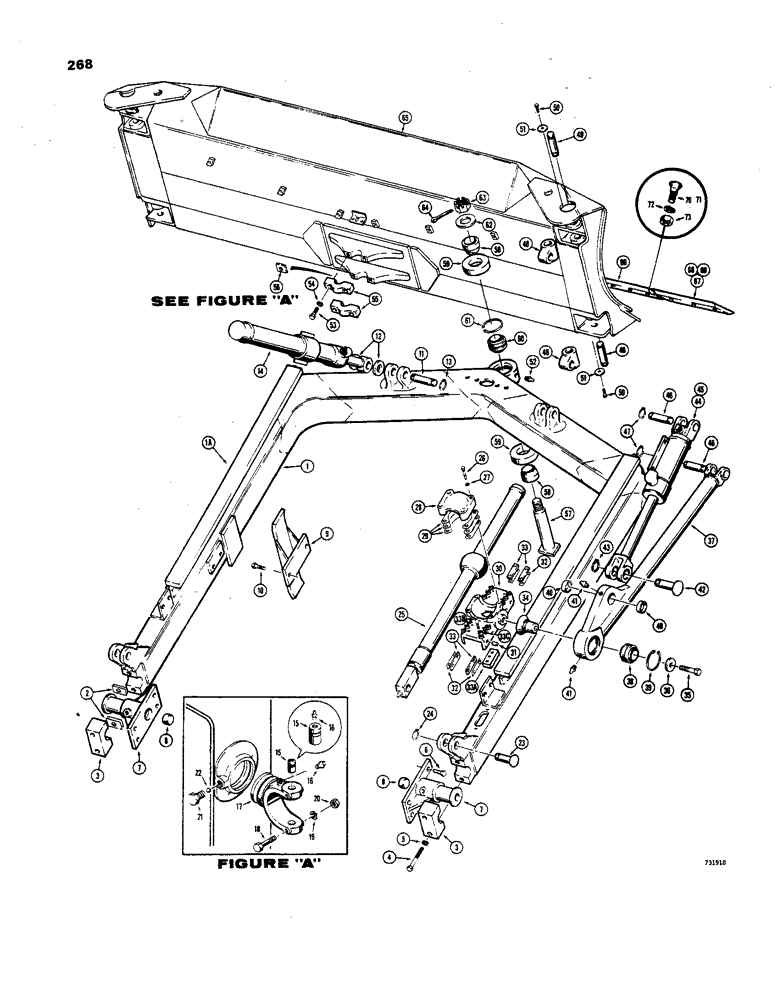

Запчасти Case 850 (268) - PWR ANGLE TILT PITCH DOZER-MECHANICAL, USED TRAC. SN7075226 & AFT. OR MODELS W/ R31619 MOLDBOARD (05) - UPPERSTRUCTURE CHASSIS

1

R30110

"C" FRAME - Angle Tilt Dozer, Includes: Ref. 1A

1шт.

R29559

SLIDE

KIT - slide rail, Includes: Ref. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

RAIL - slide

2шт.

2

D52400

SHIM - 1/32" thick

1шт.

3

D52387

CAP

- "C" frame

2шт.

4

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

R30117

KIT

TRUNNION ASSEMBLY - push, Includes: Ref. 7 and 8

2шт.

7

R30118

TRUNNION

- push

1шт.

8

D51043

DOWEL - pin

1шт.

9

D52397

BRACKET

- rub

2шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

11

D32930

PIN,38.1mm OD x 127mm L

- lift cylinder

2шт.

12

D52375

SPACER - cylinder

4шт.

13

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

14

G33713

CYLINDER - lift (See Figure 304 for cylinders)

2шт.

15

D28482

PIN

- trunnion mounting

4шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

17

D24497

TRUNNION

- lift cylinder

2шт.

18

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

D28481

PLUG

- special

2шт.

22

211-7

BALL,1/4" Dia

- steel, trunnion retaining 1/4" Dia

38шт.

23

R30298

PIN - mounting, angle cylinder

2шт.

24

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

25

REF

INSTRUCTION

CYLINDER - angle (See figure 304 for cylinders)

2шт.

26

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

28

D51009

CAP

- slide

2шт.

29

D51024

SHIM,.030" Thk

1шт.

30

R30998

BRACKET

- slide

2шт.

31

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Taper, half length 5/16" x 1", Type B, Hardened

32шт.

32

R31721

SHIM,.016" Thk

1шт.

33

R30874

SPACER

STRIP - wear

16шт.

33a

R30999

BLOCK

- slide

4шт.

33b

26-846

BOLT,Hex, 1/2" - 13 x 2-7/8", Gr 8

HHCS - 1/2" - 13 NC x 2-7/8" (Grade 8)

24шт.

33c

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

24шт.

34

D51015

PIN

- strut mounting

2шт.

35

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

HHCS - 1" - 8 NC x 4-1/2" (Grade 8)

2шт.

36

D51030

WASHER

- special

2шт.

R30092

STRUT

ASSEMBLY - lower, Includes: Ref. 37 - 41

2шт.

37

NSS

NOT SOLD SEPARAT

STRUT - lower

1шт.

38

D23601

HOUSING

BUSHING - self-aligning

1шт.

39

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

40

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- press in

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

42

D52386

PIN

- tilt cylinder mounting

2шт.

43

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

44

G33715

CYLINDER - tilt, L.H. (See Figure 306 for cylinders)

1шт.

45

G33714

CYLINDER - tilt, R.H. (See Figure 306 for cylinders)

1шт.

46

D32932

PIN,31.75mm OD x 112.78mm L

- mounting, strut and tilt cylinder

4шт.

47

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

48

D35443

UNIVERSAL JOINT

UNIVERSAL

4шт.

49

D95311

PIN

- mounting

4шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

51

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

53

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

HHCS - 5/8" - 11 x 2-3/4" (Grade 8)

4шт.

54

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

55

R30235

CAP

- pivot, blade

2шт.

56

R30239

SPACER - cap

4шт.

57

R30236

PIN

- mounting, blade

1шт.

58

D52378

SPACER

- pivot

2шт.

59

D52379

GASKET

- pivot

2шт.

60

D23601

HOUSING

BUSHING - self-aligning

1шт.

61

NLS

NO LONGER SERVICED

3.156", Int, #315, bushing

1шт.

62

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- special

1шт.

63

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex., slotted (1/2" - 6 NC)

1шт.

64

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

65

R31619

MOLDBOARD - dozer

1шт.

66

D52377

EDGE

BLADE - center, 87.88" 6" Center 15 Holes

1шт.

67

D48041

EDGE, CUTTING

BIT - end, standard

2шт.

68

D51100

EDGE, CUTTING

BIT - end, cast (R.H.)

1шт.

69

D51101

EDGE, CUTTING

BIT - end, cast (L.H.)

1шт.

70

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4" (15 for D52377 blade and 10 for cast bits)

25шт.

71

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4" (D48041 bit)

6шт.

72

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

25шт.

73

25-1010

NUT,5/8"-11, G5

25шт.
