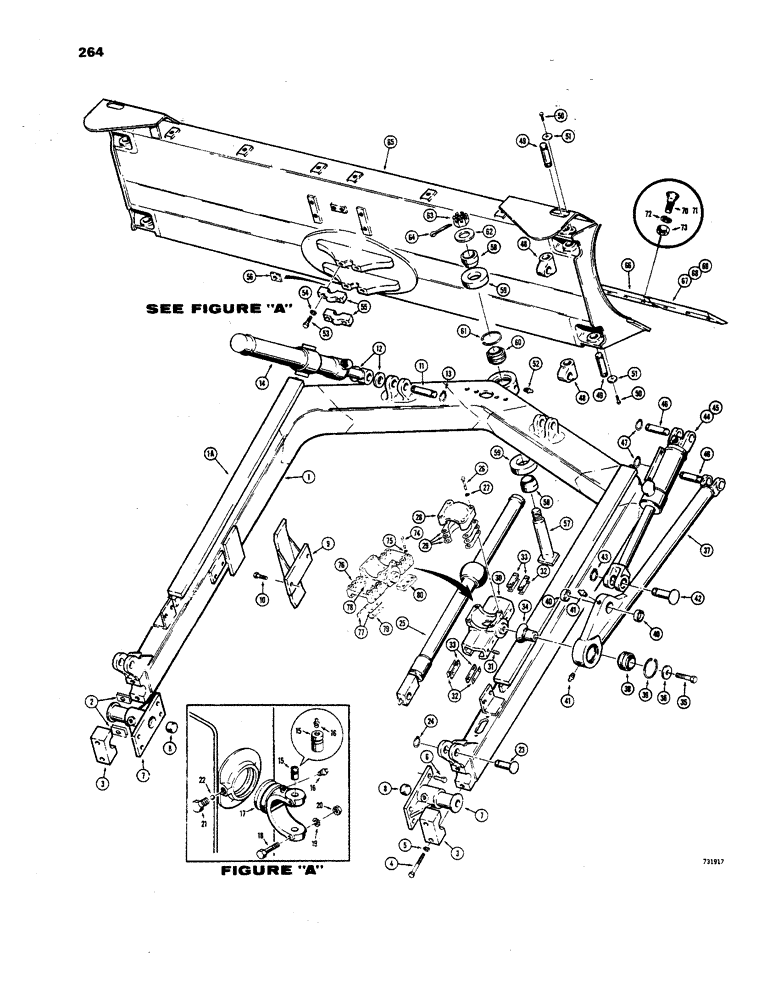

Запчасти Case 850 (264) - PWR ANGLE TILT PITCH DOZER-MECHANICAL, USED TRAC. SN. 7074906-7075225 &/OR MODELS W/R30230 MOLDBOARD (05) - UPPERSTRUCTURE CHASSIS

1

R30110

"C" FRAME - Angle Tilt Dozer, Includes: Ref. 1A

1шт.

R29559

SLIDE

KIT - slide rail

1шт.

1a

NSS

NOT SOLD SEPARAT

RAIL - slide

2шт.

2

D52400

SHIM - 1/32" thick

1шт.

3

D52387

CAP

- "C" frame

2шт.

4

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

R30117

KIT

TRUNNION ASSEMBLY - push, Includes: Ref. 7 and 8

2шт.

7

R30118

TRUNNION

- push

1шт.

8

D51043

DOWEL - pin

1шт.

9

D52397

BRACKET

- rub

2шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

11

D32930

PIN,38.1mm OD x 127mm L

- lift cylinder

2шт.

12

D52375

SPACER - cylinder

4шт.

13

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

14

REF

INSTRUCTION

CYLINDER - lift (See figure 304 for cylinders)

2шт.

15

D28482

PIN

- trunnion mounting

4шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

17

D24497

TRUNNION

- lift cylinder

2шт.

18

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

D28481

PLUG

- special

2шт.

22

211-17

BALL,3/4" Dia

- steel, trunnion retaining

38шт.

23

R30298

PIN - mounting, angle cylinder

2шт.

24

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

25

REF

INSTRUCTION

CYLINDER - angle (See figure 304 for cylinders)

2шт.

26

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

28

D51009

CAP

- slide

2шт.

29

D51024

SHIM,.030" Thk

1шт.

30

R30998

BRACKET

- slide (Use R31079 kit) Parts list Figure 264

2шт.

31

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Taper, half length (R30998 bracket) 5/16" x 1", Type B, Hardened

32шт.

32

D51025

SHIM,.015" Thk

Slide (R30998 bracket) .015" Thk

1шт.

33

R27926

STRIP

- wear (R30998 bracket)

16шт.

34

D51015

PIN

- strut mounting

2шт.

35

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

HHCS - 1" - 8 NC x 4-1/2" (Grade 8)

2шт.

36

D51030

WASHER

- special

2шт.

R30092

STRUT

ASSEMBLY - lower, Includes: Ref. 37 - 41

2шт.

37

NSS

NOT SOLD SEPARAT

STRUT - lower

1шт.

38

D23601

HOUSING

BUSHING - self-aligning

1шт.

39

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

40

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- press in

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

42

D52386

PIN

- tilt cylinder mounting

2шт.

43

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

44

G33715

CYLINDER - tilt, L.H. (See Figure 306 for cylinders)

1шт.

45

G33714

CYLINDER - tilt, R.H. (See Figure 306 for cylinders)

1шт.

46

D32932

PIN,31.75mm OD x 112.78mm L

- mounting, strut and tilt cylinder

4шт.

47

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

48

D35443

UNIVERSAL JOINT

UNIVERSAL

4шт.

49

D95311

PIN

- mounting

4шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

51

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

53

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

HHCS - 5/8" - 11 NC x 2-3/4" (Grade 8)

4шт.

54

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

55

R30235

CAP

- pivot, blade

2шт.

56

R30239

SPACER - cap

4шт.

57

R30236

PIN

- mounting, blade

1шт.

58

D52378

SPACER

- pivot

2шт.

59

D52379

GASKET

- pivot

2шт.

60

D23601

HOUSING

BUSHING - self-aligning

1шт.

61

49477

RING, SNAP

3.156", Int, #315, bushing

1шт.

62

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

- special

1шт.

63

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex., slotted (1/2" - 6 NC)

1шт.

64

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

65

R30230

MOLDBOARD

- dozer (Service with R31692 kit)

1шт.

If part no. R31619 appears on plate, upper R.H. of moldboard, use Figures 268, 270, 280 and 282 when ordering parts.

1шт.

66

D52377

EDGE

BLADE center, is 87.88" with 6" centers, 15 holes

1шт.

67

D48041

EDGE, CUTTING

BIT - end, standard

2шт.

68

D51100

EDGE, CUTTING

BIT - end, cast (R.H.)

1шт.

69

D51101

EDGE, CUTTING

BIT - end, cast (L.H.)

1шт.

70

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4" (15 for D52377 blade and 10 for cast bits)

25шт.

71

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4" (D48041 bit)

6шт.

72

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

25шт.

73

25-1010

NUT,5/8"-11, G5

25шт.

R31079

KIT

- slide, bracket, Includes: Ref. 74 - 80

1шт.

74

26-846

BOLT,Hex, 1/2" - 13 x 2-7/8", Gr 8

HHCS - 1/2" - 13 NC x 2-7/8" (Grade 8), R31079 slide bracket kit

12шт.

75

92-8

LOCK WASHER,1/2"

med. sect., R31079 slide bracket kit 1/2"

12шт.

76

R30998

BRACKET

- slide, R31079 kit

1шт.

77

R31721

SHIM,.016" Thk

R31079 Slide bracket kit .016" Thk

1шт.

78

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered, R31079 slide bracket kit 5/16" x 1", Type B, Hardened

16шт.

79

R30874

SPACER

STRIP - wear, R31079 slide bracket kit

8шт.

80

R30999

BLOCK

- R31079 slide bracket kit

4шт.
