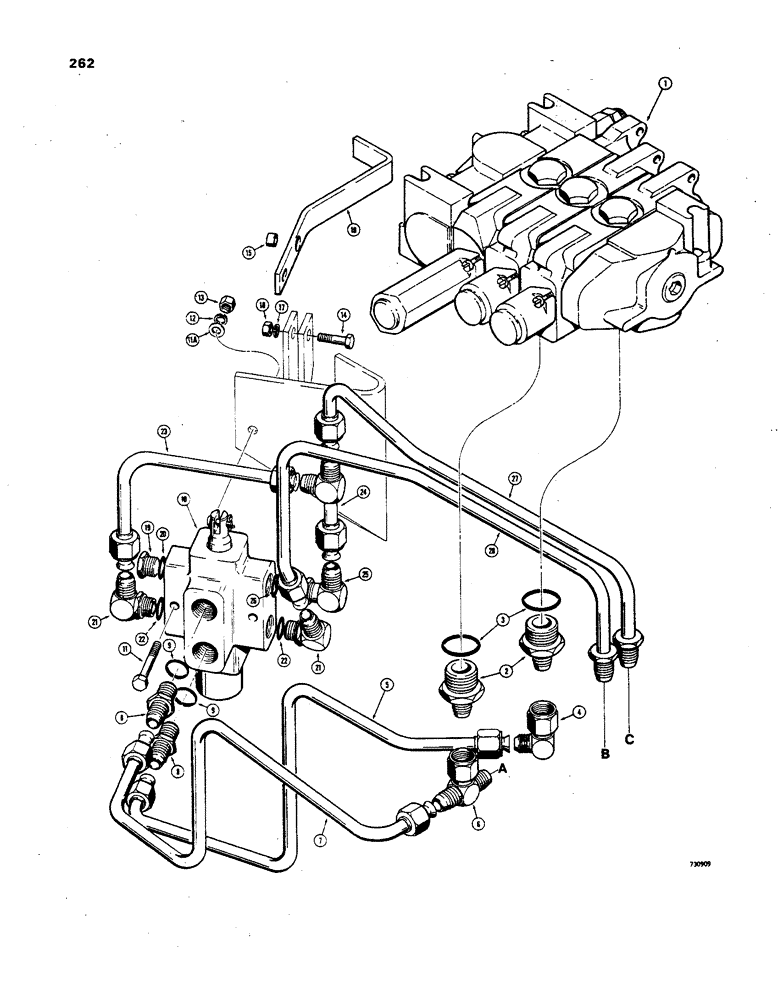

Запчасти Case 850 (262) - POWER ANGLE TILT PITCH DOZER HYDRAULICS, TILT AND PITCH CIRCUIT, CONTROL VALVE TO DIVERSION VALVE (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

VALVE - equipment control (See figures 296 and 298 for proper valve)

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 deg., adjustable

1шт.

5

R24815

TUBE - hydraulic, equipment valve to diversion valve

1шт.

6

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- adjustable (A connects to A, Figure 262)

1шт.

7

R24813

TUBE - hydraulic, equipment valve to diversion valve

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 9 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

R24819

VALVE

- diversion (Parts list Figure 274)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

11a

195-25

WASHER,3/8"

-flat

2шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

15

R24807

BUSHING

- .275" wide

1шт.

16

R24806

LEVER

- control, diversion valve

1шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

19

214389

PLUG,3/4" - 16 ORB

Includes Ref. 20 Hex Hd, 3/4"-16 ORB

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 22 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

R24012

TUBE - crossover

1шт.

24

R24014

TUBE - tee

1шт.

25

R24011

ELBOW - special, Includes: Ref. 26

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

R24811

TUBE - hydraulic (C connects to C, Figure 262)

1шт.

28

R24809

TUBE - hydraulic (B connects to B, Figure 262)

1шт.
