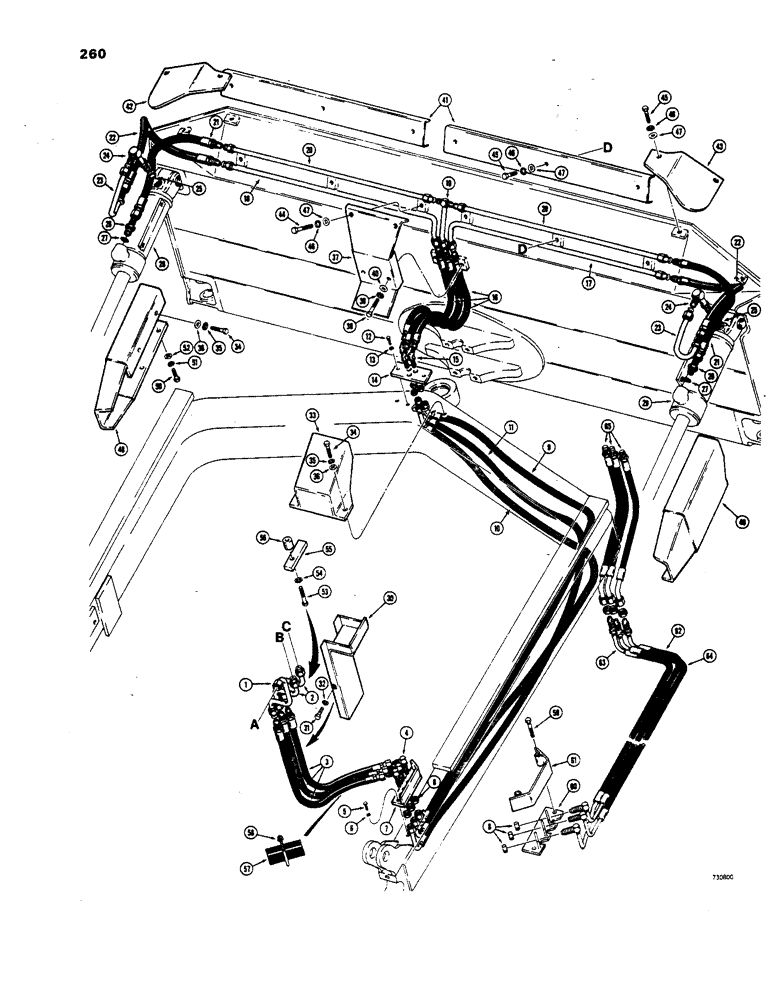

Запчасти Case 850 (258) - PWR ANGLE TILT PITCH DOZER HYD, TILT & PITCH CIRCUIT-CONTROL VALVE TO CYL, USED BEF. TRAC S/N7074906 (05) - UPPERSTRUCTURE CHASSIS

1

D52117

TUBE - hydraulic (A connects to A, figure 262)

1шт.

2

D52119

TUBE - hydraulic (B connects to B, C connects to C, figure 262)

2шт.

3

D52121

SUPPORT

HOSE - Hydraulic, 47" long

3шт.

4

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

(Before tractor S/N 7074688) 90º Blkhd, 9/16"-18, 37º x 9/16"-18, 37º

3шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(D52122 bracket) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

7

D52122

BRACKET - bulkhead, Before tractor Sn. 7074688

3шт.

8

218-1277

BHD LOCK NUT,Blkhd, 9/16"-18

NUT - special

6шт.

9

D52123

HOSE

ASSEMBLY - upper, before tractor Sn. 7074688 (Service with R30114 kit)

1шт.

10

D52124

HOSE ASSEMBLY - middle, before tractor Sn. 7074688 (Service with R30114 kit)

1шт.

11

D52125

HOSE ASSEMBLY - lower, before tractor Sn. 7074688 (Service with R30114 kit)

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

14

D52268

BRACKET - bulkhead

1шт.

15

218-714

ELBOW,45 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 45 deg. bulk head, male (Before tractor Sn. 7074688)

3шт.

16

D52126

HOSE - hydraulic ( 20 - 1/2" long)

3шт.

17

D52129

PIPE

TUBE - hydraulic, lower R.H.

1шт.

18

D52130

PIPE

TUBE - hydraulic, lower L.H.

1шт.

19

D52127

PIPE

TUBE - hydraulic, tee

1шт.

20

D52132

PIPE

TUBE - hydraulic, upper

2шт.

21

D52134

HOSE

- at cylinder, lower (16" long)

2шт.

22

D52138

HOSE

- at cylinder, upper (24" long)

2шт.

23

D52135

TUBE

- hydraulic, closed end of cylinder

2шт.

24

D52137

FITTING

ELBOW - special, 90 deg., Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- male, straight, Incl. Ref 27 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

REF

INSTRUCTION

CYLINDER - tilt and pitch, L.H. (See figure 306 for cylinders)

1шт.

29

REF

INSTRUCTION

CYLINDER - tilt and pitch, R.H. (See figure 306 for cylinders)

1шт.

30

D52348

GUARD - tube, rear

1шт.

31

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

33

D52344

GUARD - hose, pivot

1шт.

34

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

35

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

36

195-33

WASHER,1/2"

- flat () 1/2"

6шт.

37

D52340

GUARD - tube, pivot

1шт.

38

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

39

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

40

195-33

WASHER,1/2"

- flat () 1/2"

2шт.

41

D51168

GUARD - tube, moldboard

2шт.

42

D51168

GUARD - tilt cylinder, L.H. upper

1шт.

43

D52339

GUARD - tilt cylinder, R.H. upper

1шт.

44

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

46

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

10шт.

47

195-33

WASHER,1/2"

- flat () 1/2"

10шт.

48

R24831

GUARD - tilt cylinder, L.H. lower

1шт.

49

R24832

GUARD - tilt cylinder, R.H. lower

1шт.

50

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

51

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

52

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

53

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

54

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

55

R25524

CLAMP - tube

1шт.

56

D33551

BUSHING

SPACER - clamp

1шт.

58

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- screw type #36, 1.81/2.75 Type F Worm

1шт.

59

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used trac. S/N 7074688 & after/ also as service replacement Hex, 3/8"-16 x 2", G5

2шт.

Part of Hose Replacement Kit P/N R30114

1шт.

60

R30029

BRACKET

- hose, used trac. serial no. 7074688 & after/ also as service replacement

1шт.

Part of Hose Replacement Kit P/N R30114

1шт.

61

R30032

GUARD

- hose, used trac. serial no. 7074688 & after/ also as service replacement

1шт.

Part of Hose Replacement Kit P/N R30114

1шт.

62

R30023

LARGE HOSE

HOSE ASSEMBLY - hydraulic, top, used trac. serial no. 7074688 & after/ also as service replacement

1шт.

Part of Hose Replacement Kit P/N R30114

1шт.

63

R30024

HOSE

ASSEMBLY - hydraulic, middle, used trac. serial no. 7074688 & after/ also as service replacement

1шт.

Part of Hose Replacement Kit P/N R30114

1шт.

64

R30025

HOSE

ASSEMBLY - hydraulic, lower, used trac. serial no. 7074688 & after/ also as service replacement

1шт.

Part of Hose Replacement Kit P/N R30114

1шт.

65

R29999

LARGE HOSE

HOSE ASSEMBLY - to blade, used trac. serial no. 7074688 & after/ also as service replacement

3шт.

R30114

KIT

- hose replacement, Includes: Ref. 59 - 65, used trac. serial no. 7074688 & after/ also as service

1шт.
