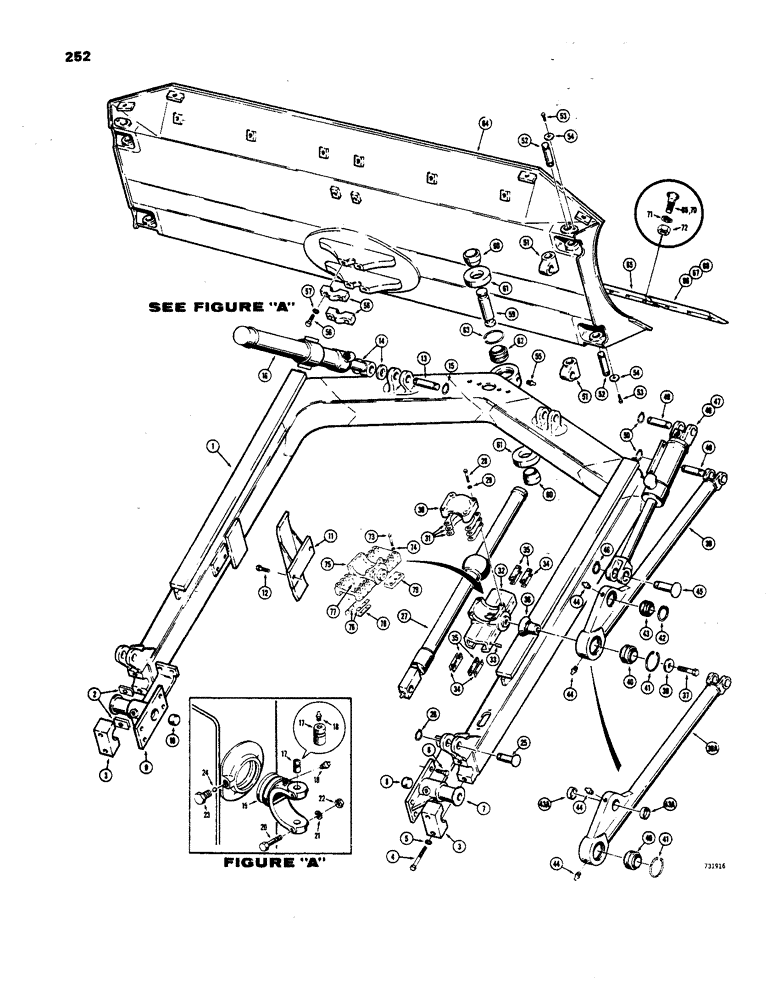

Запчасти Case 850 (252) - POWER ANGLE TILT PITCH DOZER - MECHANICAL, USED BEFORE TRAC. S/N 7074906 (05) - UPPERSTRUCTURE CHASSIS

1

D52354

"C" FRAME - Angle Tilt Dozer, Includes: Ref. 1A

1шт.

D49603

SERVICE KIT

KIT - slide rail, Includes: Ref. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

RAIL - slide

2шт.

2

D52400

SHIM - 1/32" thick

1шт.

3

D52387

CAP

- "C" frame

2шт.

4

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

D52388

TRUNNION

ASSEMBLY - push, R.H., Includes: Ref. 7 and 8

1шт.

7

D52391

TRUNNION

- push

1шт.

8

D51043

DOWEL - pin

1шт.

D52389

TRUNNION

ASSEMBLY - push, L.H., Includes: Ref. 9 and 10

1шт.

9

D52390

TRUNNION

- push

1шт.

10

D51043

DOWEL - pin

1шт.

11

D52397

BRACKET

- rub

2шт.

12

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

13

D32930

PIN,38.1mm OD x 127mm L

- lift cylinder

2шт.

14

D52375

SPACER - cylinder

4шт.

15

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

16

G33713

CYLINDER - lift (See Figure 304 for cylinders)

2шт.

17

D28482

PIN

- trunnion mounting

4шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

19

D24497

TRUNNION

- lift cylinder

2шт.

20

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

23

D28481

PLUG

- special

2шт.

24

211-17

BALL,3/4" Dia

- steel, trunnion retaining

38шт.

25

D52399

PIN - mounting, angle cylinder

2шт.

26

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

27

G33712

CYLINDER BLOCK

CYLINDER - angle (See Figure 304 for cylinders)

2шт.

28

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

29

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

30

D51009

CAP

- slide

2шт.

31

D51024

SHIM,.030" Thk

1шт.

32

R29500

BRACKET

- slide (Use R31079 kit - parts list Figure 252)

2шт.

33

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Taper, half length (R29500 bracket only) 5/16" x 1", Type B, Hardened

32шт.

34

D51025

SHIM,.015" Thk

Slide (R29500 bracket only) .015" Thk

1шт.

35

R27926

STRIP

- wear (R29500 bracket only)

16шт.

36

D51015

PIN

- strut mounting

2шт.

37

113-912

X

HHCS - 1" - 8 NC x 4-1/2"

2шт.

38

D51030

WASHER

- special

2шт.

D52380

STRUT

ASSEMBLY - lower (Two self-aligning bushings), Includes: Ref. 39 - 44

2шт.

R30092

STRUT

ASSEMBLY - lower (One self-aligning bushing)

2шт.

39

D52381

STRUT

- D52380 strut assembly

1шт.

39a

NSS

NOT SOLD SEPARAT

STRUT - R30092 strut assembly

1шт.

41

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

40

D23601

HOUSING

BUSHING - self-aligning

1шт.

41

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

42

49477

RING, SNAP

3.156", Int, #315, D52380 strut assembly

1шт.

43

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- self-aligning, D52380 strut assembly

1шт.

43a

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- press in, R30092 strut assembly

2шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

45

D52386

PIN

- tilt cylinder mounting

2шт.

46

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

47

G33715

CYLINDER - tilt, L.H. (See Figure 306 for cylinders)

1шт.

48

G33714

CYLINDER - tilt, R.H. (See Figure 306 for cylinders)

1шт.

49

D32932

PIN,31.75mm OD x 112.78mm L

- mounting, strut and tilt cylinder

4шт.

50

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

51

D35443

UNIVERSAL JOINT

UNIVERSAL -

4шт.

52

D95311

PIN

- mounting

4шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

54

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

56

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

57

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

58

NLS

NO LONGER SERVICED

- pivot, blade

2шт.

59

D52376

PIN

- mounting. blade

1шт.

60

D52378

SPACER

- pivot

2шт.

61

D52379

GASKET

- pivot

2шт.

62

D23601

HOUSING

BUSHING - self-aligning

1шт.

63

NLS

NO LONGER SERVICED

3.156", Int, #315, bushing

1шт.

64

D51142

MOLDBOARD - dozer

1шт.

65

D52377

EDGE

BLADE - center, 87.88" with 15 holes on 6" centers.

1шт.

66

D48041

EDGE, CUTTING

BIT - end, standard

2шт.

67

D51100

EDGE, CUTTING

BIT - end, cast, R.H.

1шт.

68

D51101

EDGE, CUTTING

BIT - end, cast, L.H.

1шт.

69

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4" (15 for D52377 blade and 10 for cast bits)

25шт.

70

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

BOLT - plow, 5/8" - 11 NC x 2-1/4" (D48041 bit)

6шт.

71

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

25шт.

72

25-1010

NUT,5/8"-11, G5

25шт.

R31079

KIT

- slide bracket, Includes: Ref. 73 - 79

2шт.

73

26-846

BOLT,Hex, 1/2" - 13 x 2-7/8", Gr 8

HHCS - 1/2" - 13 NC x 2-7/8" (Grade 8), R31079 slide bracket kit

12шт.

74

92-8

LOCK WASHER,1/2"

med. sect., R31079 slide bracket kit 1/2"

12шт.

75

R30998

BRACKET

- slide, R31079 slide bracket kit

1шт.

76

R31721

SHIM,.016" Thk

R31079 Slide bracket kit .016" Thk

1шт.

77

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered, R31079 slide bracket kit 5/16" x 1", Type B, Hardened

16шт.

78

R30874

SPACER

STRIP - wear, R31079 slide bracket kit

8шт.

79

R30999

BLOCK

- R31079 slide bracket kit

4шт.
