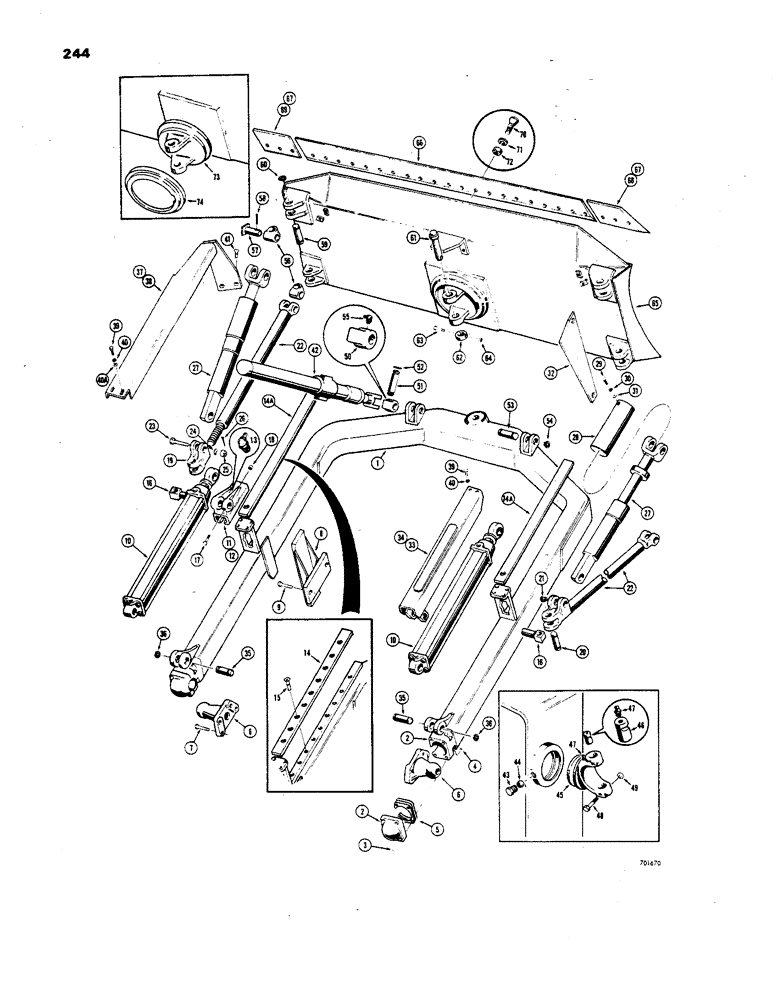

Запчасти Case 850 (244) - POWER ANGLE TILT DOZER - MECHANICAL (05) - UPPERSTRUCTURE CHASSIS

1

D29600

"C" FRAME - Angle-Tilt Dozer, Includes: Ref. 2 - 5

1шт.

70396

KIT

- pivot bracket, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - "C" frame

1шт.

3

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

4шт.

4

131-1137

NUT,5/8"-11, GC

- hex., lock (5/8" - 11 NC) If used

4шт.

5

D49981

SHIM,1/32" Thk

1шт.

6

R18645

TRUNNION

- push

2шт.

7

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

8

D44191

BRACKET

- rub

2шт.

9

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

10

R19345

CYLINDER

- angling (See Figure 304 for cylinders)

2шт.

11

D46832

BRACKET

- slide, L.H.

1шт.

12

D46831

BRACKET

- slide, R.H.

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

D46837

SLIDE

- bolt on (Service with D49603 kit if required)

2шт.

D49603

SERVICE KIT

KIT - slide (Service option), Includes: Ref. 14A

1шт.

14a

D49597

SLIDE VALVE

SLIDE - weld on (Used on tractor sn. 7073526 and after)

2шт.

15

164-135

HEX SOC SCREW,Flat Hd, 5/8" - 18 x 1 1/2"

- cap, hex., head socket (5/8" - 18 NF x 1-1/2")

20шт.

16

D45580

PIN

- strut bracket

2шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

2шт.

18

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

19

70316

BRACKET

- strut and cylinder

2шт.

20

D43733

PIN

- mounting

2шт.

21

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

22

D44280

STAY

STRUT - lower

2шт.

23

70378

STAY

BOLT - cylinder to strut bracket

2шт.

24

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- med. sect. lock (1")

2шт.

25

25-2316

SLOTTED NUT

- hex., castle (1" - 14 NF)

2шт.

26

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

27

REF

INSTRUCTION

CYLINDER - tilt (See figure 306 for cylinders)

2шт.

28

D42529

GUARD

- rod, tilt cylinder

2шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

6шт.

31

195-25

WASHER,3/8"

- plain () 3/8"

6шт.

32

D44277

GUARD

- hose, tilt cylinder

2шт.

33

70400

GUARD - angling cylinder, R.H. rear

1шт.

34

70401

GUARD - angling cylinder, L.H. rear

1шт.

35

D33769

PIN

- mounting, guard

2шт.

36

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

37

D46838

COVER

GUARD - angling cylinder, R.H. front

1шт.

38

D46839

GUARD

- angling cylinder, L.H. front

1шт.

39

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

8шт.

40

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

40a

95-8

WASHER,1/2"

- plain 1/2"

8шт.

41

164-83

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 2

SCREW - cap, flat hex. socket (5/8" - 18 NF x 2")

4шт.

42

REF

INSTRUCTION

CYLINDER - lift (See figure 304 for cylinders)

2шт.

43

D28481

PLUG

- special

2шт.

44

211-17

BALL,3/4" Dia

- steel, trunnion retaining

38шт.

45

D24497

TRUNNION

- lift cylinder

2шт.

46

D28482

PIN

- mounting

2шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

48

136-48

HHCS - 3/8" - 16 NC x 3"

4шт.

49

131-352

LOCK NUT,3/8"-16, GA

NUT - hex. (3/8" - 16 NC)

4шт.

50

D32926

UNIVERSAL JOINT

JOINT - universal, lift cylinder to "C" Frame

2шт.

51

D32932

PIN,31.75mm OD x 112.78mm L

- mounting, joint

2шт.

52

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

53

D33769

PIN

- mounting, joint

2шт.

54

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

55

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

56

70315

UNIVERSAL JOINT

JOINT - universal, moldboard to strut and tilt cylinder

4шт.

57

D41266

PIN

- mounting, joint

4шт.

58

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

59

D33769

PIN

- mounting, moldboard

4шт.

60

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

61

D37532

AXLE PIN

PIN - swivel

1шт.

62

D37529

COLLAR

- pin

1шт.

63

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

1шт.

64

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex., lock (5/8" - 11 NC)

1шт.

65

D48942

MOLDBOARD - dozer

1шт.

66

R22981

BLADE

- cutting, center, 87- 7/8" 22 hole 4" Centers

1шт.

67

D48041

EDGE, CUTTING

BLADE - cutting, end (Standard)

2шт.

68

D51100

EDGE, CUTTING

BLADE - cutting, R.H. (Cast - optional)

1шт.

69

D51101

EDGE, CUTTING

BLADE - cutting, L.H. (Cast - optional)

1шт.

70

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8" - 11 NC x 2-1/4"

28шт.

71

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.

72

25-1010

NUT,5/8"-11, G5

28шт.

R2594

PIVOT

KIT - swivel, Includes: Ref. 73 and 74

1шт.

73

NSS

NOT SOLD SEPARAT

SWIVEL - pilot

1шт.

74

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.
