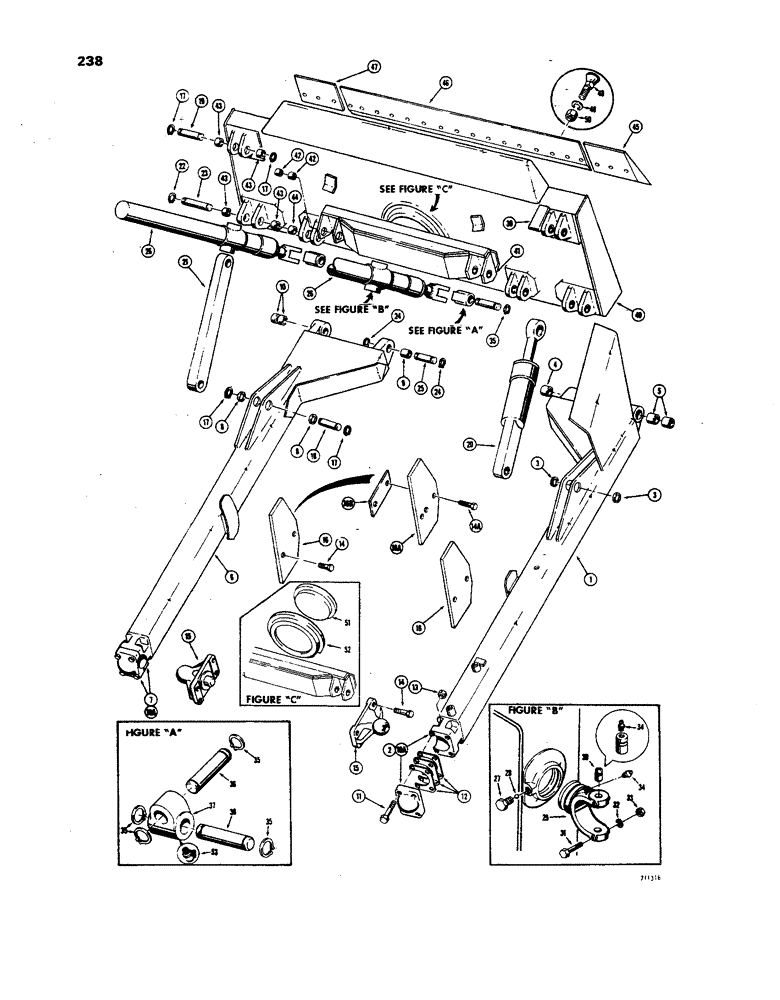

Запчасти Case 850 (238) - POWER TILT DOZER - MECHANICAL (05) - UPPERSTRUCTURE CHASSIS

1

D39584

PUSH BEAM - dozer, R.H., Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push beam, included in D32855 kit

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- tilt cylinder lug

2шт.

4

D32786

BUSHING,31.98mm ID x 41.27mm OD x 47.5mm L

- push beam at moldboard, inner

1шт.

5

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- push beam at moldboard, outer

2шт.

6

D39583

PUSH BEAM - dozer, L.H., Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push beam, included in D32855 kit

1шт.

8

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- strut lug

2шт.

9

D32786

BUSHING,31.98mm ID x 41.27mm OD x 47.5mm L

- push beam at moldboard, inner

1шт.

10

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- push beam at moldboard, outer

2шт.

D32855

KIT - pivot bracket (Included in D39584 and D39583), Includes: Ref. 10A - 13

2шт.

10a

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push beam (See ref. no. 2 and 7)

1шт.

11

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

4шт.

12

D49981

SHIM,1/32" Thk

Push trunnion 1/32" Thk

1шт.

13

131-656

LOCK NUT,5/8"-11, GB

NUT - hex., lock (5/8" - 11 NC)

4шт.

14

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

12шт.

14a

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(R24829 plate) Hex, 3/4"-10 x 1 3/4", G5

4шт.

15

D32920

TRUNNION - push

2шт.

16

D39581

PLATE - rub, two hole plate

2шт.

16a

R24829

PLATE - rub, three hole plate

2шт.

16b

R24828

SPACER - R24829 plate

2шт.

17

D25279

SNAP RING,M35, Int

RING - snap

8шт.

18

D25078

PIN

- tilt cylinder and strut at push beam

2шт.

19

D32930

PIN,38.1mm OD x 127mm L

- tilt cylinder and strut at moldboard

2шт.

20

REF

INSTRUCTION

CYLINDER - tilt (See figure 306 for cylinders)

1шт.

21

D32918

STRUT - push, Serial Range: beam-moldboard

1шт.

22

D25279

SNAP RING,M35, Int

RING - snap

4шт.

23

D32931

PIN

- push beam to moldboard, outer

2шт.

24

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

25

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - push beam to moldboard, inner

2шт.

26

REF

INSTRUCTION

CYLINDER - lift (See figure 304 for cylinders)

2шт.

27

D28481

PLUG

- ball retaining

2шт.

28

211-17

BALL,3/4" Dia

- trunnion retaining (.) 3/4" Dia

38шт.

29

D24497

TRUNNION

- lift cylinder mounting

2шт.

30

D28482

PIN

- lift cylinder mounting

4шт.

31

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

32

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

35

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

36

D32932

PIN,31.75mm OD x 112.78mm L

- lift, Serial Range: cylinder-universal

2шт.

37

D32926

UNIVERSAL JOINT

JOINT - universal, lift, Serial Range: cylinder-moldboard

2шт.

38

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN -, Serial Range: universal-moldboard

2шт.

39

D42479

GUAGE - dozer leveling

1шт.

40

D41233

MOLDBOARD - Power Tilt Dozer (88-1/4" wide), Includes: Ref. 41 - 50

1шт.

41

D43100

BEAM - lift

1шт.

42

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- 3/4" x 1-17/64" I.D. x 1-5/8" O.D

4шт.

43

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1" x 1-33/64" I.D. x 1-7/8" O.D

8шт.

44

D32890

BUSHING

- 1" x 1-17/64 I.D. x 1-5/8" O.D

4шт.

45

R31855

EDGE, CUTTING

CUTTING EDGE - end, R.H. HD (With 5 Bolt Holes)

1шт.

46

R23000

EDGE, CUTTING

CUTTING EDGE - center

1шт.

47

R31854

EDGE, CUTTING

CUTTING EDGE - end, L.H. HD (With 5 Bolt Holes)

1шт.

48

19-1032

BOLT,5/8" - 11 x 2", Gr 5

- plow (5/8" - 11 NC x 2")

22шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

22шт.

50

25-1010

NUT,5/8"-11, G5

22шт.

D47996

KIT

- lift beam swivel, Includes: Ref. 51 and 52

1шт.

51

NSS

NOT SOLD SEPARAT

SWIVEL - blade

1шт.

52

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.

53

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2deg.

2шт.
