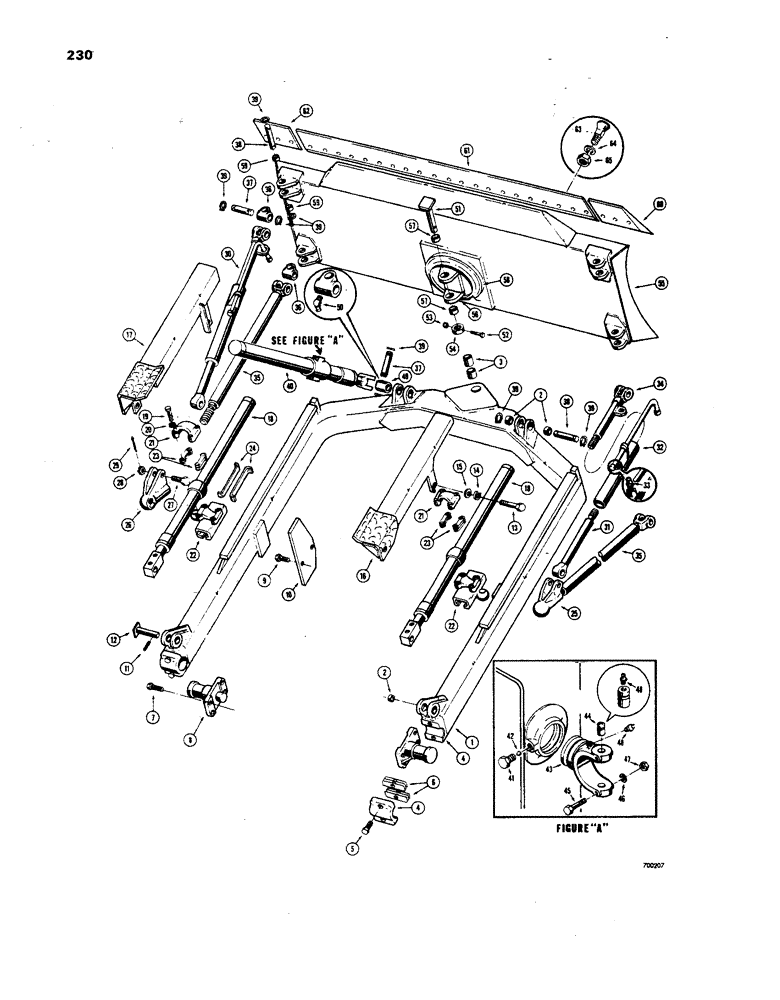

Запчасти Case 850 (230) - POWER ANGLING DOZER - MECHANICAL (05) - UPPERSTRUCTURE CHASSIS

1

D41173

"C" FRAME - power angling dozer, Includes: Ref. 2 - 6

1шт.

2

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- "C" frame, lift and angling cylinder lugs

8шт.

3

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- "C" frame, moldboard pivot

2шт.

D50184

CAP

KIT - pivot bracket, Includes: Ref. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push trunion

1шт.

5

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

6

D33001

SHIM

- push trunnion, 1/32" thick

1шт.

7

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

8

D32977

TRUNNION - push

2шт.

9

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

10

D39581

PLATE - rub.

2шт.

11

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

12

D41266

PIN

- "C" frame to angling cylinder and guard

2шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

15

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

16

D41175

GUARD - angling cylinder, R.H.

1шт.

17

D41174

GUARD - angling cylinder, L.H.

1шт.

18

REF

INSTRUCTION

CYLINDER - angling (See figure 304 for cylinders)

2шт.

D32801

ASSEMBLY - slide, Includes: Ref. 19 - 23

2шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

20

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

21

NSS

NOT SOLD SEPARAT

CAP - slide bracket

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - slide

1шт.

23

D32803

SHIM - slide bracket (0312" thick)

1шт.

24

D32806

STRIP

WEAR STRIP - slide bracket

4шт.

25

D33030

BRACKET

- strut, R.H.

1шт.

26

D33031

- strut, L.H.

1шт.

27

D32802

BOLT

- special (Upper strut mounting)

2шт.

28

25-2316

SLOTTED NUT

- hex., castle (1" - 14 NF)

2шт.

29

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

30

D32800

STRUT

- upper, Includes: Ref. 31 - 34

2шт.

31

D32793

SCREW - strut, eye

1шт.

32

R16408

TURNBUCKLE

1шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" BNPT)

1шт.

34

D32799

SCREW - strut, yoke

1шт.

35

D32774

STRUT

- lower

1шт.

36

D35443

UNIVERSAL JOINT

JOINT - universal, moldboard mounting

4шт.

37

D32932

PIN,31.75mm OD x 112.78mm L

- universal joint and lift cylinder mounting

6шт.

38

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - universal joint and lift cylinder mounting

6шт.

39

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

24шт.

40

REF

INSTRUCTION

CYLINDER - lift (See figure 304 for cylinders)

2шт.

41

D28481

PLUG

- ball retaining

2шт.

42

211-17

BALL,3/4" Dia

- trunnion retaining (.) 3/4" Dia

38шт.

43

D24497

TRUNNION

- lift cylinder mounting

2шт.

44

D28482

PIN

- lift cylinder mounting

4шт.

45

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

46

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

47

25-106

NUT,3/8"-16, G5

FITTING - grease, straight (1/8" NPT)

6шт.

49

D32926

UNIVERSAL JOINT

JOINT - universal, lift cylinder to "C" frame

2шт.

50

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2deg. (1/8" NPT)

2шт.

51

D39577

PIN

- moldboard mounting, swivel

1шт.

52

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

53

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

54

D39580

NO LONGER SERVICED

COLLAR - pin

1шт.

55

D41156

MOLDBOARD - Angling Dozer (110" wide), Includes: Ref. 56 - 65

1шт.

D43435

KIT

- swivel, Includes: Ref. 56 and 57

1шт.

56

NSS

NOT SOLD SEPARAT

SWIVEL - pivot, Includes: Ref. 57

1шт.

57

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- swivel

2шт.

58

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.

59

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- blade lugs

8шт.

60

D51100

EDGE, CUTTING

CUTTING EDGE - end, R.H.

1шт.

61

D32945

EDGE

CUTTING EDGE - center, 4" centers

1шт.

62

D51101

EDGE, CUTTING

CUTTING EDGE - end, L.H.

1шт.

63

19-1032

BOLT,5/8" - 11 x 2", Gr 5

- plow, 5/8" - 11 NC x 2"

27шт.

64

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

27шт.

65

25-1010

NUT,5/8"-11, G5

27шт.
