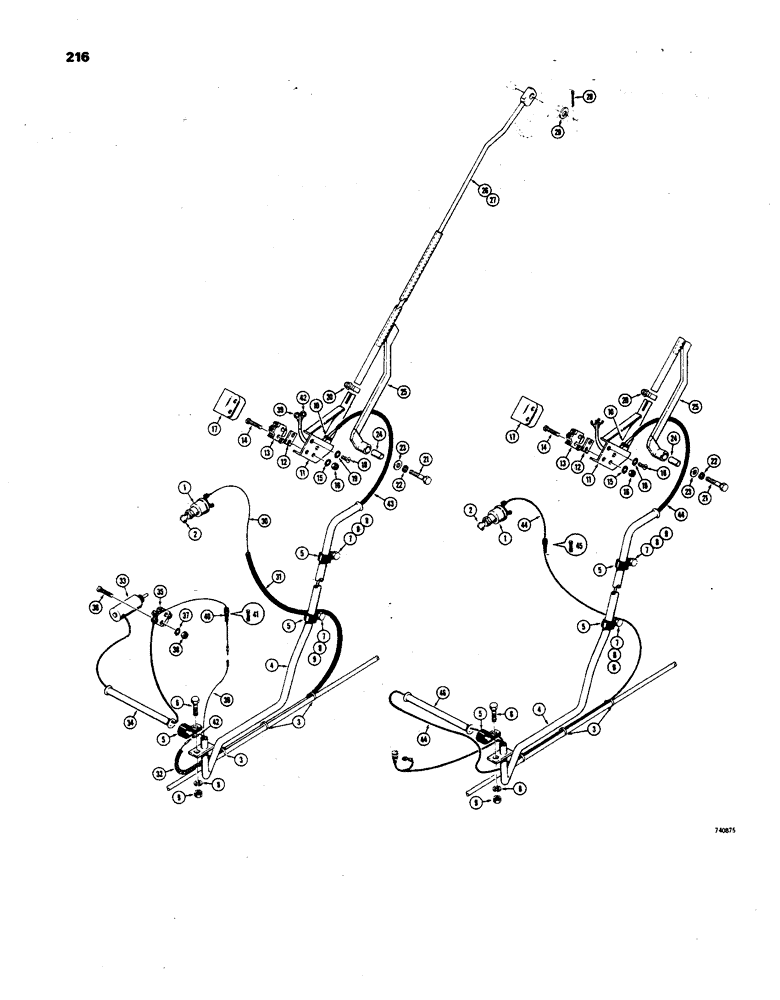

Запчасти Case 850 (216) - RETURN TO DIG (05) - UPPERSTRUCTURE CHASSIS

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

D36822

KEY

- switch, pair

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire tie

3шт.

4

D42925

TUBE - cable guard

1шт.

5

49885

CLAMP

- tube

3шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

10

49560

BAR

- rubber

1шт.

11

D40884

BOX

- switch

1шт.

12

D40924

SHIM

SPACER - switch

1шт.

13

D40921

SWITCH

- limit, Serial Range: return-dig

1шт.

14

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6 - 32 NC x 1-1/4") Zinc plated

2шт.

15

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

16

129-15

NUT,#6-32

2шт.

17

D40922

COVER

- switch box

1шт.

18

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4" (Zinc plated)

2шт.

19

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - tube

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

23

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

24

G49623

SUPPORT TUBE,0.625" OD x 1.255" L

SLEEVE - tube

1шт.

25

D40879

TUBE

- rod support

1шт.

26

D40907

ROD - limit switch (Used before tractor Sn. 7073534)

1шт.

27

D48677

ROD

- limit switch (Used on tractor Sn. 7073534 and after)

1шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

29

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

30

D43163

WIRE - electrical, white (Battery terminal of switch to limit switch), for valve spool detent

1шт.

31

D42930

LOOM - wire protector, models with limit switch for valve spool detent

1шт.

32

D43785

GUARD ASSY.

LOOM - wire protector, models with limit switch for valve spool detent

1шт.

33

D45387

SOLENOID

- electrical, models with limit switch for valve spool detent

1шт.

34

D42927

TUBE

- wire protector, models with limit switch for valve spool detent

1шт.

35

D40921

SWITCH

- limit, return to dig, models with limit for valve spool detent

1шт.

36

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- machine, fillister head (#6 - 32 NC x 1-1/2") Zinc plated, models with limit switch for valve spool detent

2шт.

37

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , Models with limit switch for valve spool detent Ext-Int Tooth, #6

2шт.

38

129-15

NUT,#6-32

Models with limit switch for valve spool detent #6-32

2шт.

39

D45395

CABLE

WIRE - electrical, lead, models with limit switch for valve spool detent

1шт.

40

D44304

HOLDER

- fuse, models with limit switch for valve spool detent

1шт.

41

D44305

FUSE

- electrical, models with limit switch for valve spool detent

1шт.

42

D42928

ELECTRICAL WIRE

WIRE - electrical, white (To common terminal of limit switch), models with limit switch for valve spool detent

1шт.

43

D42930

LOOM - wire protector, models with limit switch for valve spool detent

1шт.

44

R33269

HARNESS

- wiring, models with one piece electrical harness and magnetic valve spool detent, Includes: Ref. 45

1шт.

45

223-27

FUSE,20 Amp, Type 3AG

- 20 amp., 3 AG, models with one piece electrical harness and magnetic valve spool detent

1шт.

46

D42927

TUBE

- wire protector, models with one piece electrical harness and magnetic valve spool detent

1шт.
