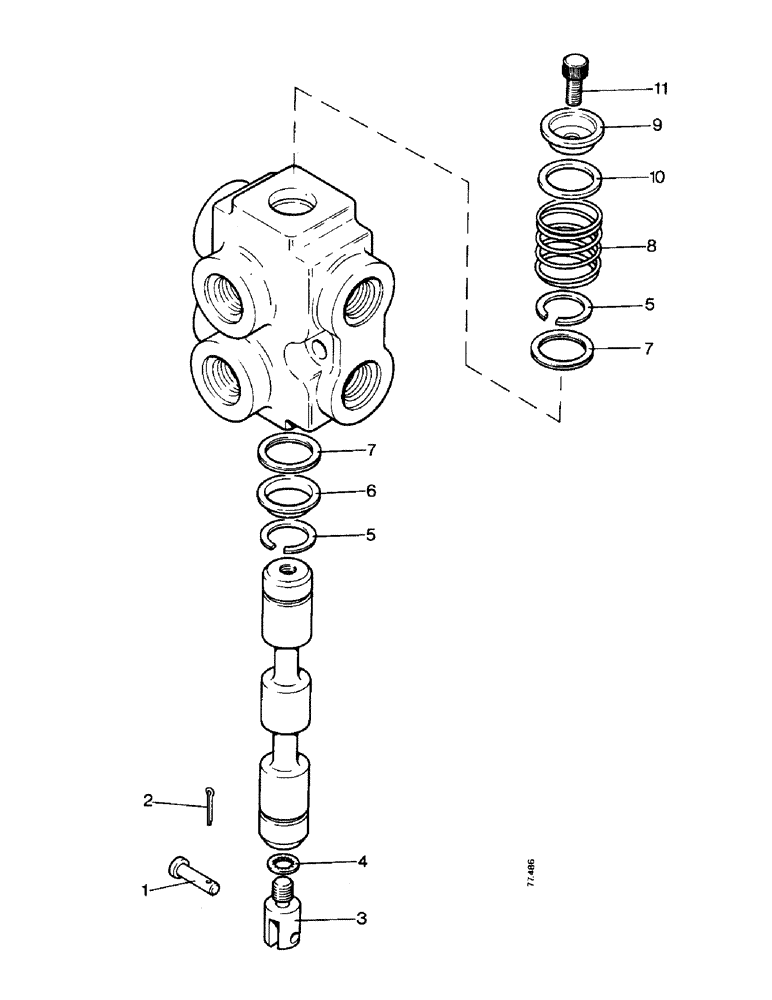

Запчасти Case 850 (H06-1) - ANGLE TILT PITCH DOZER - DIVERSION VALVE (07) - HYDRAULIC SYSTEM

R24819

VALVE

- diversion

1шт.

1

R24869

AXLE PIN

PIN - clevis

1шт.

2

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

3

R24867

CLEVIS

- spool top

1шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

5

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

6

R24871

SEAL

- dust

1шт.

7

R24866

RING

SEAL - quad ring

2шт.

8

R24868

SPRING

1шт.

9

R24872

SPRING SEAT

COLLAR - spool

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrought, 5/16 in

1шт.

11

169-155

SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"

- 1/4 UNC x 1/2 in

1шт.
