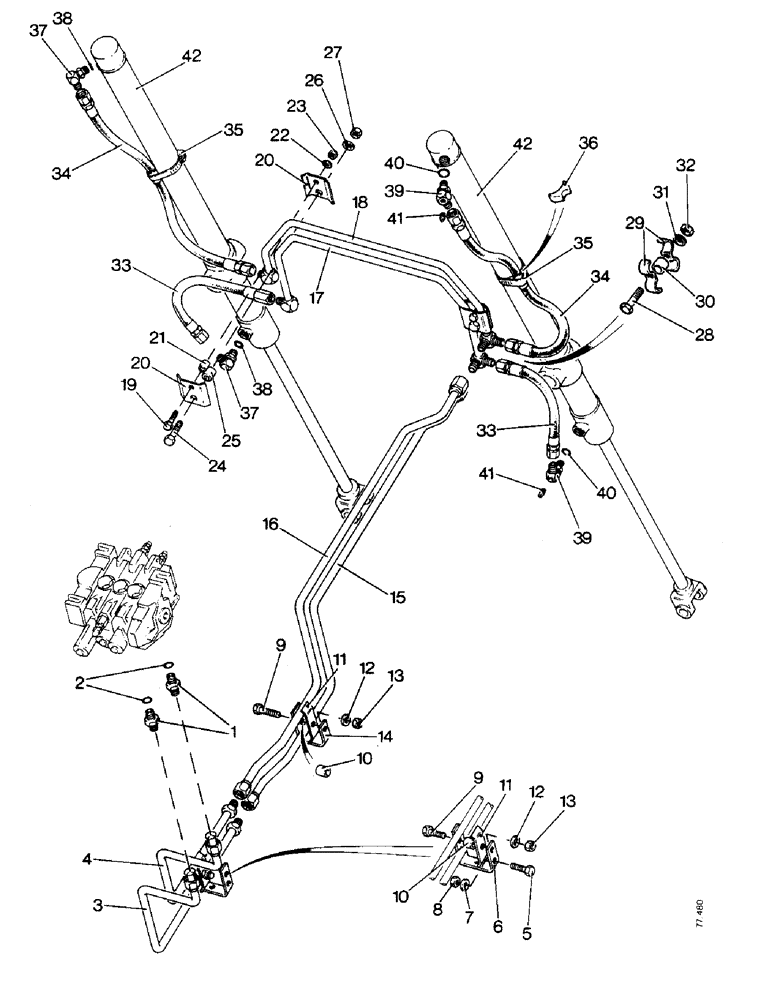

Запчасти Case 850 (H05-1) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTOR - straight, male

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O'RING

1шт.

3

NLS

NO LONGER SERVICED

- valve to lift cylinder, rod end

1шт.

4

D39611

TUBE

- valve to lift cylinder, closed end

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

D39965

BRACKET - tube mounting

1шт.

7

195-25

WASHER,3/8"

- 3/8 in

2шт.

8

131-6

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

10

D36040

BUSHING

SPACER - tube clamp

3шт.

11

D40236

CLAMP

- tube

3шт.

12

195-25

WASHER,3/8"

- 3/8 in

3шт.

13

131-6

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC

3шт.

14

D41389

BRACKET

- tube mounting

1шт.

15

D39613

TUBE

- valve to cylinder, rod end, 5 roller

1шт.

D39615

TUBE

- valve to cylinder, rod end, 6 roller

1шт.

16

D39615

TUBE

- valve to cylinder, closed end, 5 roller

1шт.

D39613

TUBE

- valve to cylinder, closed end, 6 roller

1шт.

17

D50753

TUBE

- crossover, lower, 5 roller

1шт.

E88341

TUBE

- crossover, lower, 6 roller

1шт.

18

D50752

TUBE

- crossover, upper, 5 roller

1шт.

E88340

TUBE

- crossover, upper, 6 roller

1шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 UNC x 1.3/4 in

2шт.

20

R21853

CLAMP

- tube

4шт.

21

D33552

BUSHING

SPACER - clamp

2шт.

22

195-21

WASHER,5/16"

2шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 UNC

2шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 UNC x 1.3/4 in

2шт.

25

D35228

SPACER

- clamp

2шт.

26

195-33

WASHER,1/2"

- 1/2 in

2шт.

27

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 UNC x 1.1/2 in 6 roller

2шт.

29

R15257

CLAMP

- hose 6 roller

4шт.

30

D36488

BUSHING

SPACER - clamp 6 roller

2шт.

31

195-25

WASHER,3/8"

- 3/8 in 6 roller

2шт.

32

131-6

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC 6 roller

2шт.

33

D28524

HOSE

- lift cylinder rod end, 21 in, 5 roller

2шт.

19178

HOSE

- lift cylinder rod end, 33.1/2 in, 6 roller

2шт.

34

D39601

HOSE

- lift cylinder closed end, 30 in, 5 roller

2шт.

36942

HOSE

- lift cylinder closed end, 44 in, 6 roller

2шт.

35

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

36

D38648

BLOCK

SADDLE - hose, 6 roller

2шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj, left hand cylinder 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

R19576

FITTING

ELBOW - adjustable 90degree, right hand cylinder

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8 NPT

2шт.

42

G33738

CYLINDER

- lift, see Figure H09-1

2шт.
