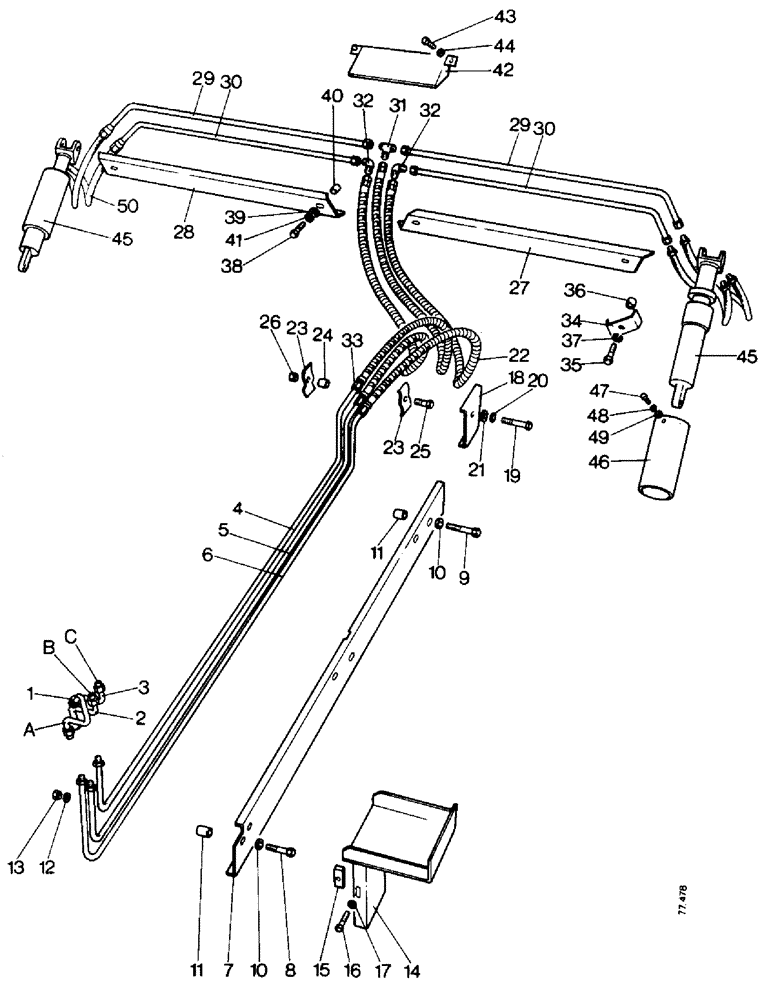

Запчасти Case 850 (H03-1) - ANGLE TILT PITCH DOZER HYDRAULICS, TILT AND PITCH CIRCUIT (07) - HYDRAULIC SYSTEM

1

E88933

TUBE

ASSEMBLY - A connects to A, Figure H02-1

1шт.

2

E88935

PIPE

TUBE ASSEMBLY - B connects to B, Figure H02-1

1шт.

3

E88931

TUBE

ASSEMBLY - C connects to C, Figure H02-1

1шт.

4

E88445

TUBE

- upper

1шт.

5

E88444

TUBE

- centre

1шт.

6

E88443

TUBE

- lower

1шт.

7

E88384

GUARD

- tubes

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 UNC x 1.3/4 in

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

195-33

WASHER,1/2"

- 1/2 in

3шт.

11

D44228

BUSHING

SPACER - tube

3шт.

12

92-8

LOCK WASHER,1/2"

3шт.

13

25-108

NUT,1/2"-13, G5

- 1/2 UNC

3шт.

14

E88989

GUARD - tubes

1шт.

15

D32851

BLOCK - tapped

2шт.

16

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 UNC x 3/4 in

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

E88432

GUARD

- tube, short

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

195-33

WASHER,1/2"

- 1/2 in

1шт.

22

E88929

HOSE

- connecting, 5 roller only

3шт.

D45114

HOSE

- connecting, 6 roller only

3шт.

23

R15257

CLAMP

- hose 6 roller only

4шт.

24

D30863

TUBE

SPACER - clamp 6 roller only

2шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 UNC x 1.1/2 in 6 roller only

2шт.

26

131-6

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC 6 roller only

2шт.

27

D47790

COVER

GUARD - tube, right hand

1шт.

28

D47789

COVER

GUARD - tube, left hand

1шт.

29

E88373

TUBE

- upper, at mould board

2шт.

30

D46995

TUBE

- lower, at mould board

2шт.

31

218-595

TEE,7/8"-14, 37 Degree

- tube

1шт.

32

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- tube

2шт.

33

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- tube, 5 roller only

3шт.

34

38363

PLATE - clamp

2шт.

35

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

36

D44228

BUSHING

SPACER - clamp plate

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

39

195-33

WASHER,1/2"

- 1/2 in

4шт.

40

D44228

BUSHING

SPACER - guard

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

E88378

BRACKET

GUARD - tube

1шт.

43

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 UNC x 3/4 In

2шт.

44

92-8

LOCK WASHER,1/2"

2шт.

45

G34281

CYLINDER

- tilt and pitch, see Figure H08-1

2шт.

46

D42529

GUARD

- cylinder

2шт.

47

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

48

92-6

LOCK WASHER,3/8"

6шт.

49

195-25

WASHER,3/8"

- 3/8 in

6шт.

50

D28081

HOSE

- cylinder to mouldboard tube

4шт.
