(H02-1) - ANGLE TILT PITCH DOZER HYDRAULICS, CONTROL VALVE TO DIVERSION VALVE

Запчасти Case 850 (H02-1) - ANGLE TILT PITCH DOZER HYDRAULICS, CONTROL VALVE TO DIVERSION VALVE (07) - HYDRAULIC SYSTEM

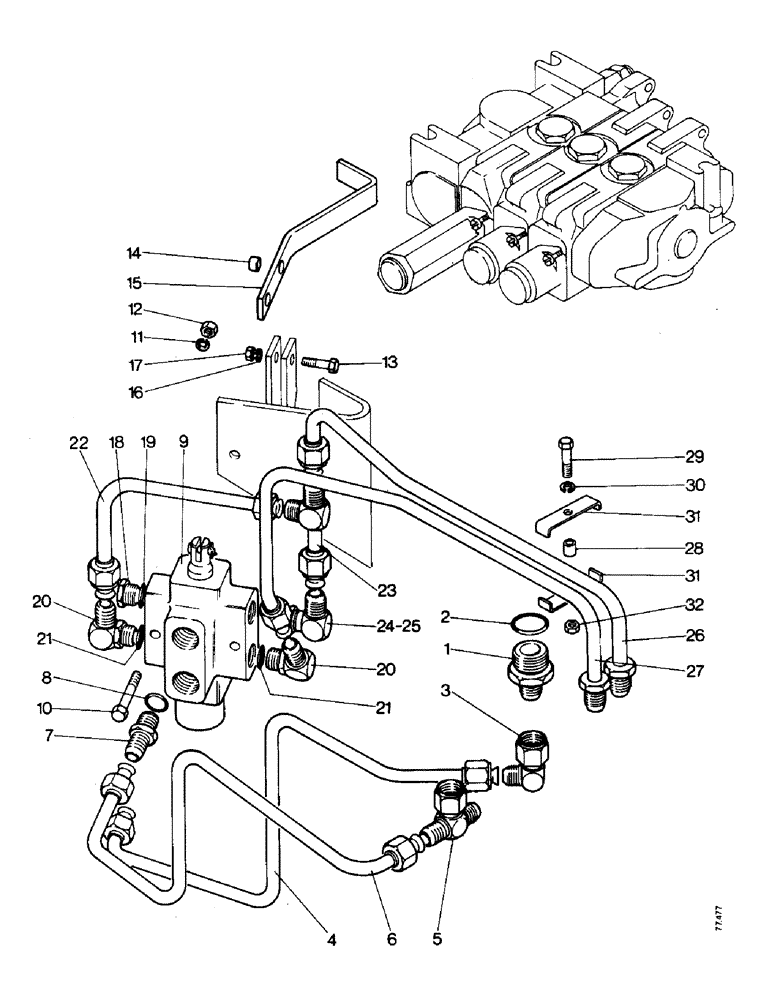

Схема запчастей Case 850 - (H02-1) - ANGLE TILT PITCH DOZER HYDRAULICS, CONTROL VALVE TO DIVERSION VALVE (07) - HYDRAULIC SYSTEM
1
32
20
15
9
31
17
27
4
20
3
18
30
26
19
5
11
10
16
12
2
8
22
25
21
13
28
23
21
24
7
14
29
6
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTOR - straight male

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O'RING

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Special 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

4

E88945

PIPE

TUBE - diversion valve

1шт.

5

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- tube, A connects to A, Figure H03-1

1шт.

6

E88947

PIPE

TUBE - diversion valve

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

9

R24819

VALVE

- diversion, see Figure H06-1

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 UNC x 2.3/4 in

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8 UNC

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

14

R24807

BUSHING

- 0.275 in

1шт.

15

R24806

LEVER

- diversion valve control

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8 UNC

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

20

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90degree special

2шт.

22

E88943

TUBE

- crossover

1шт.

23

E88941

TUBE

- tee

1шт.

24

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Special 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

25

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

26

E88937

PIPE

TUBE ASSEMBLY - C connects to C, Figure H03-1

1шт.

27

E88939

PIPE

TUBE ASSEMBLY - B connects to B, Figure H03-1

1шт.

28

D33552

BUSHING

SPACER - clamp

1шт.

29

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 UNC x 1.3/4 in

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

D33316

CLAMP

- tube

2шт.

32

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 in

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
