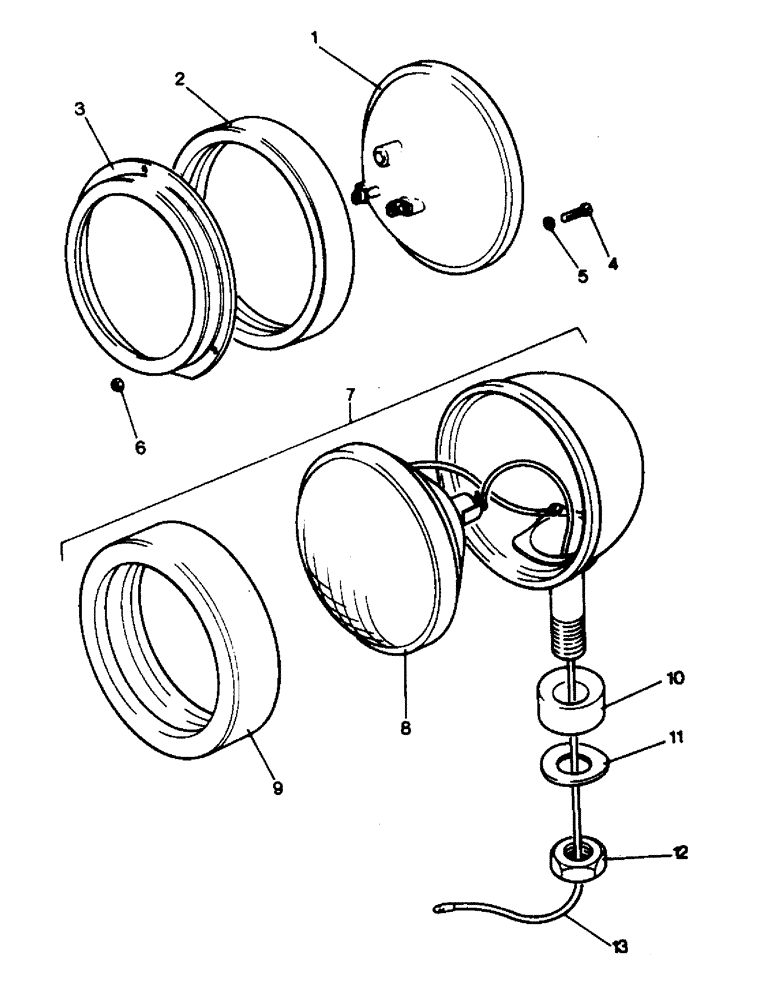

Запчасти Case 850 (K03-1) - HEAD AND TAIL LIGHTS (06) - ELECTRICAL SYSTEMS

1

D33182

LAMP

HEADLIGHT - 12 volt, sealed unit

2шт.

2

D57287

RETAINER

- light

2шт.

3

D57288

RING

- light retainer

2шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- No. 10 UNC x 1/2 in

6шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

6

129-17

NUT,Hex, #10 - 24

NUT - No. 10 UNC

6шт.

7

D34934

LAMP

TAIL LIGHT ASSEMBLY

1шт.

8

A24572

LAMP

- sealed unit

1шт.

9

A25213

RETAINER

- lamp, rubber

1шт.

10

D37048

BUSHING

- pivot

1шт.

11

D37049

WASHER

- special

1шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock, 1/2 UNF

1шт.

13

NLS

NO LONGER SERVICED

LOOM - tail light

1шт.
