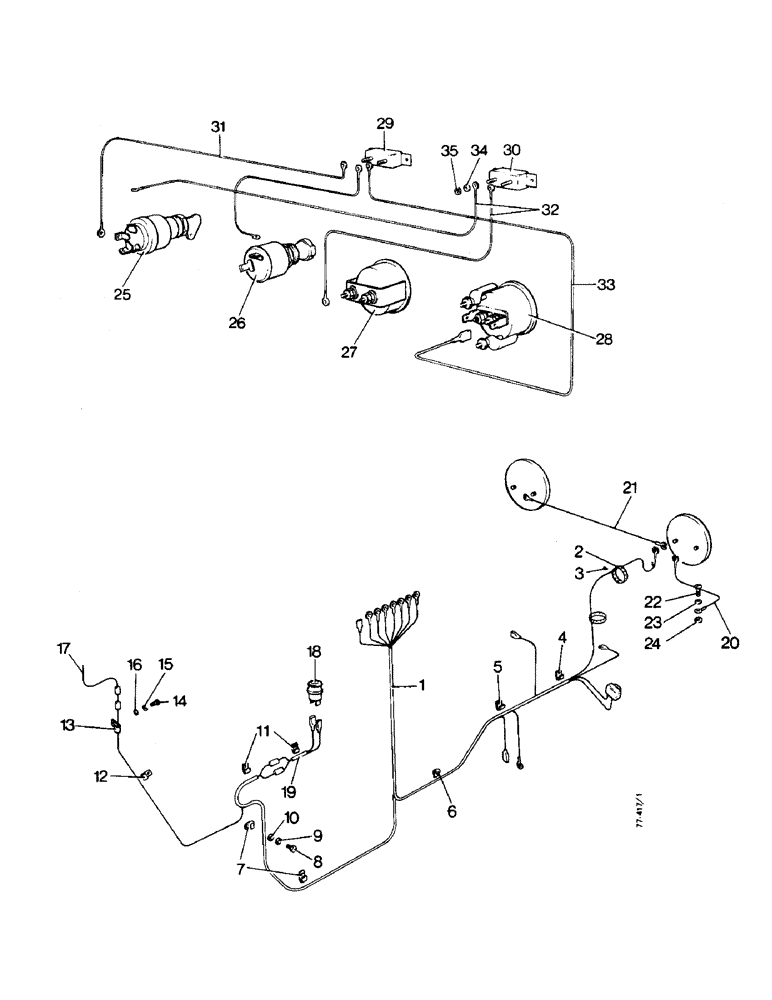

Запчасти Case 850 (K02-1) - MAIN AND INSTRUMENT PANEL WIRING (06) - ELECTRICAL SYSTEMS

1

E81086

HARNESS

WIRING HARNESS - main

1шт.

2

D41076

STRAP

2шт.

3

D41075

STUD

- nylon

2шт.

4

80049853

YOKE

CLIP

1шт.

5

49859

CLAMP

CLIP

1шт.

6

49852

PTO SHAFT

CLIP

1шт.

7

NLS

NO LONGER SERVICED

CLIP

3шт.

8

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 UNC x 3/4 in

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

95-33

WASHER - 1/2 in

1шт.

11

NLS

NO LONGER SERVICED

2шт.

12

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLIP

1шт.

13

49832

CLAMP

CLIP

1шт.

14

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 UNC x 3/4 in

1шт.

15

92-8

LOCK WASHER,1/2"

1шт.

16

95-33

WASHER - 1/2 in

1шт.

17

D35906

LOOM - rear light

1шт.

18

D34924

SWITCH

- starter

1шт.

19

D39130

ELECTRICAL WIRE

WIRE - starter switch

1шт.

20

E81449

CABLE

WIRE - headlamp earth

2шт.

21

E81451

CABLE

JUMPER WIRE - headlamp

1шт.

22

182-45

SCREW,Sl Pan Hd, #6 - 32 x 7/16"

- No. 6 - 32 UNC x 7/16 in

2шт.

23

192-105

LOCK WASHER,#6

WASHER - lock, No. 6

2шт.

24

129-5

NUT,#6-32

2шт.

25

D35092

SWITCH

- ignition

1шт.

26

D35065

SWITCH

- light

1шт.

27

R18748

AMMETER

GAUGE - ammeter

1шт.

28

K921148

ELECTRICAL GAUGE

GAUGE - coolant temperature

1шт.

29

D37203

BREAKER

CIRCUIT BREAKER

1шт.

30

A22877

BREAKER,40A

CIRCUIT BREAKER

1шт.

31

51200220

ELECTRICAL WIRE

JUMPER WIRE

2шт.

32

E88334

JUMPER WIRE

2шт.

33

E89335

ELECTRICAL WIRE

WIRE - coolant temperature gauge

1шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

129-37

NUT,#10-32

4шт.
