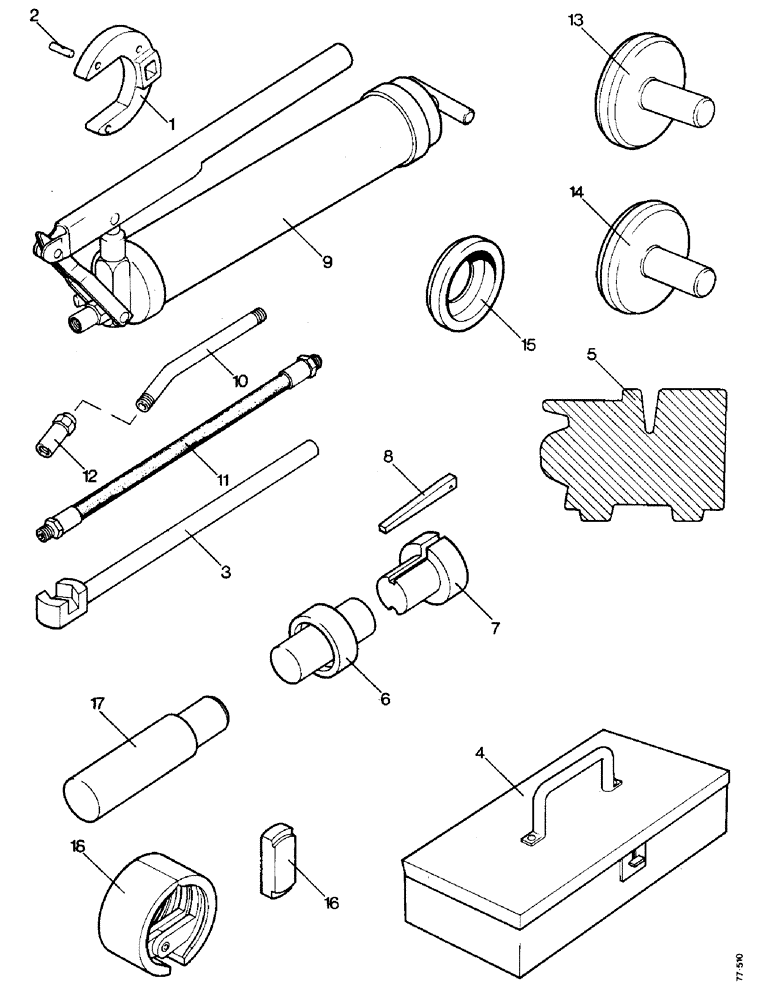

Запчасти Case 850 (M03-1) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

D44110

OPEN END WRENCH

KIT - spanner, for removing and installing packing glands in threaded gland type hydraulic cylinders

1шт.

1

D44111

OPEN END WRENCH

SPANNER - 2.1/2 in I.D. cylinders with 1.1/4 in or 1.1/2 in diameter piston rods

1шт.

D44112

OPEN END WRENCH

SPANNER - 3 in I.D. cylinders with 1.1/2 diameter piston rod

1шт.

D44113

OPEN END WRENCH

SPANNER - 3 in I.D. cylinders with 1.3/4 in diameter piston rod

1шт.

D44114

OPEN END WRENCH

SPANNER - 3.1/2 in I.D. cylinders with 1.3/4 in or 2 in diameter piston rods

1шт.

D44115

OPEN END WRENCH

SPANNER - 4 in I.D. cylinders with 2 in or 2.1/4 in diameter piston rods

1шт.

D44116

OPEN END WRENCH

SPANNER - 4.1/2 in I.D. cylinders with 2.1/2 in diameter piston rod

1шт.

2

D30107

PIN

- spanner, 2.1/2 in to 4 in I.D. cylinders

3шт.

D44118

SPARE PART

PIN - spanner, D44116 spanner only

3шт.

3

R21610

TOOL

SPANNER - track bolt

1шт.

4

E86248

TOOL

KIT - optional

1шт.

5

R24730

ELECTRICAL GAUGE

GAUGE - wear, track components

1шт.

D43421

TOOL KIT - equipment pump servicing

1шт.

6

D43422

TOOL - special, bushing installation

1шт.

7

D43423

TOOL - special, bushing removal

1шт.

8

D43424

KEY - special, bushing removal

1шт.

9

D21098

TOOL

GREASE GUN ASSEMBLY

1шт.

10

D28956

CABLE EXTENSION

EXTENSION - nozzle

1шт.

11

E86174

TUBE

HOSE - 24 in

1шт.

12

E86175

COUPLING - hydraulic

1шт.

13

A43008

TOOL

DRIVER - spacer, use with A50555 seal kit

1шт.

14

A43007

TOOL

DRIVER - spacer, use with A50555 seal kit

1шт.

15

A50387

DRIVER - seal

1шт.

16

R38321

TOOL - special, carrier roller bushing removal

1шт.

R38324

TOOL - special, bottom roller bushing removal

1шт.

17

R38651

TOOL - special, carrier roller bushing removal

1шт.

18

R36791

TOOL - special, bottom and carrier roller installation

1шт.
