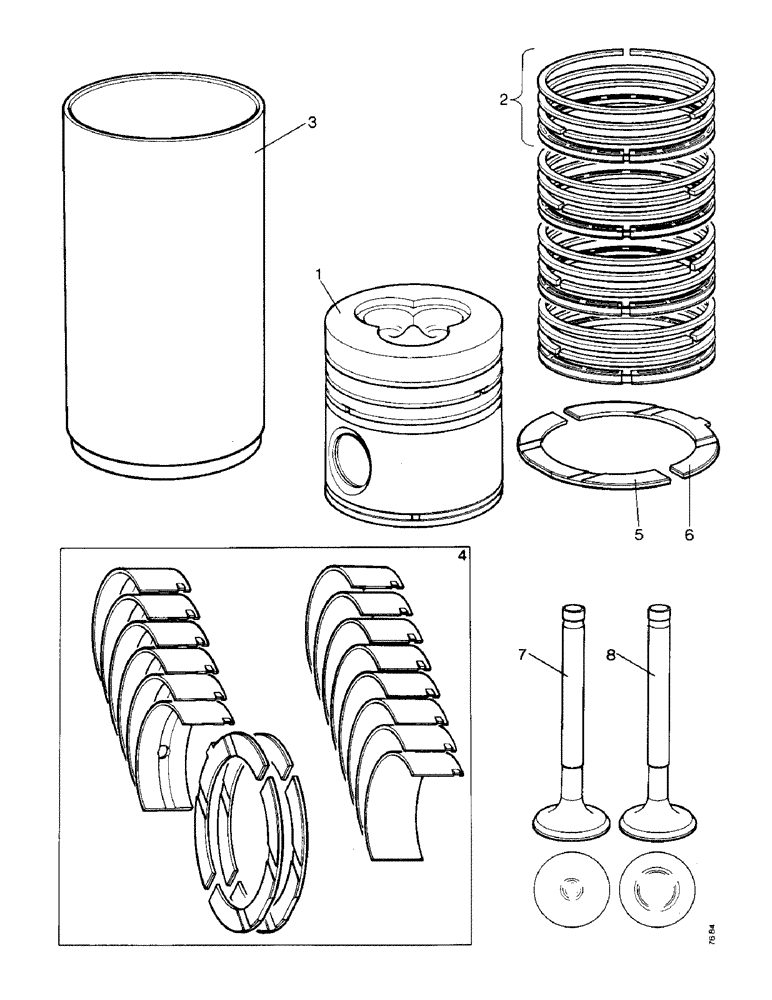

Запчасти Case 850 (M02-1) - SERVICE PARTS (05) - UPPERSTRUCTURE CHASSIS

1

K946354

PISTON

ASSEMBLY - complete, 0.020 in oversize

1шт.

K943885

RING, PISTON

PISTON RING - No. 1 compression

1шт.

K943886

RING, PISTON

PISTON RING - No. 2 and 3 compression

2шт.

K917412

PISTON

RING - scraper

1шт.

2

K964731

RING

OIL CONTROL RING PACK - standard one pack per piston

1шт.

K964730

RING

OIL CONTROL RING PACK - 0.020 in oversize one pack per piston

1шт.

3

K964857

LINER, ENGINE CYLIND

CYLINDER LINER

4шт.

4

K963415

BEARING

MAIN AND BIG END BEARING PACK with thrust washers, standard

1шт.

K928997

BEARING SET

MAIN BEARING - halves with thrust washers, standard

6шт.

K929148

BEARING SET

BIG END BEARING - halves with thrust washers, standard

8шт.

K964890

BEARING

MAIN AND BIG END BEARING PACK 0.010 in undersize

6шт.

K946345

BEARING SET

MAIN BEARING - halves 0.010 in undersize

6шт.

K946351

BEARING SET

BIG END BEARING - halves 0.010 in undersize

8шт.

K964891

BEARING

MAIN AND BIG END BEARING PACK 0.020 in undersize

1шт.

K946346

BEARING SET

MAIN BEARING - halves 0.020 in undersize

6шт.

K946352

BEARING SET

BIG END BEARING - halves 0.020 in undersize

8шт.

5

K928998

WASHER

THRUST WASHER - upper, standard

2шт.

K946347

WASHER

THRUST WASHER - upper, 0.005 in oversize

2шт.

K946349

WASHER

THRUST WASHER - upper, 0.020 in oversize

2шт.

6

K928999

WASHER

THRUST WASHER - lower, standard

2шт.

K946348

WASHER

THRUST WASHER - lower, 0.005 in oversize

2шт.

K946350

WASHER

THRUST WASHER - lower, 0.020 in oversize

2шт.

7

K950100

STD EXHAUST VALVE

VALVE - exhaust, standard stem

1шт.

K950545

VALVE

- exhaust, 0.010 in oversize stem

1шт.

K950546

VALVE

- exhaust, 0.020 in oversize stem

1шт.

8

K928622

STD INLET VALVE

VALVE - inlet, standard stem

1шт.

K928986

VALVE

- inlet, 0.010 in oversize

1шт.

K928987

VALVE

- inlet, 0.020 in oversize

1шт.

K964630

ENGINE ASSEMBLY

SHORT ENGINE BLOCK

1шт.

K964997

GASKET

ENGINE GASKET PACK - decarbonising

1шт.

K964998

KIT

ENGINE GASKET PACK - overhaul

1шт.

K964490

KIT

WATER PUMP REPAIR KIT - with impeller

1шт.
