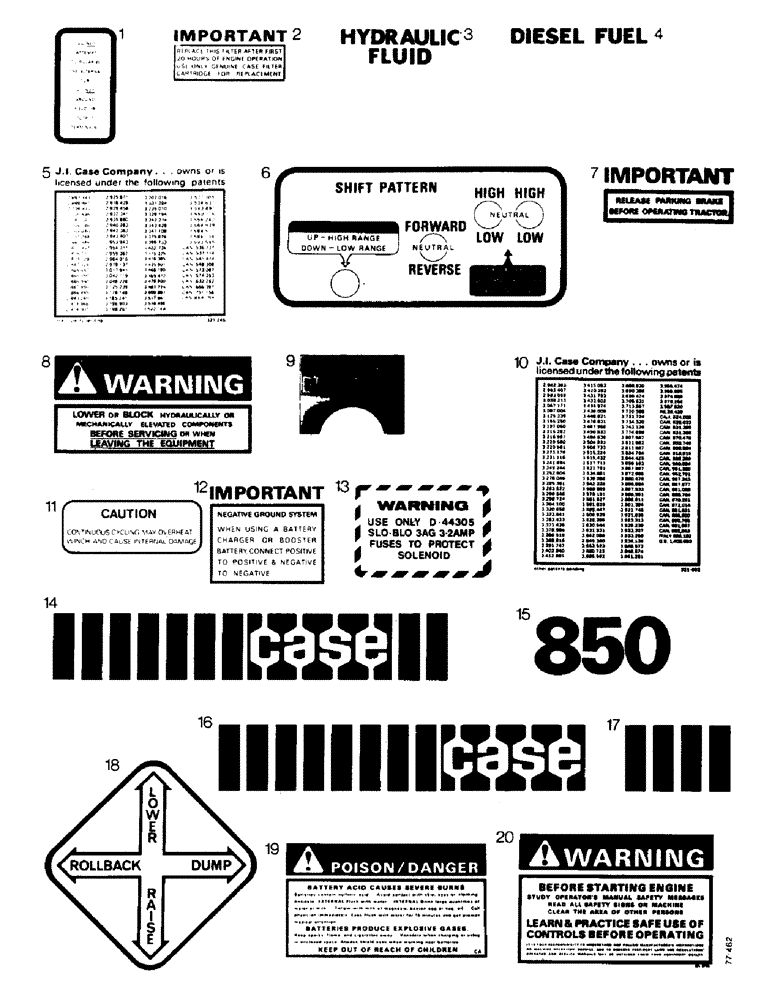

Запчасти Case 850 (M01-1) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-1061

DECAL

- alternator

1шт.

2

321-2101

DECAL

- engine oil filter replacement

1шт.

3

321-229

DECAL

- hydraulic fluid, right hand top of tank

1шт.

4

321-230

DECAL

- diesel fuel, left hand top of tank

1шт.

5

321-246

DECAL

- patent, tractor left hand side

1шт.

6

321-1050

DECAL

- transmission control, on dash

1шт.

7

321-2387

DECAL

- warning parking brake, on dash

1шт.

8

321-3042

DECAL

- warning blocking for service, on dash

1шт.

9

321-3040

DECAL

- warning starting instructions, at starter switch

1шт.

10

321-663

DECAL

- patent, equipment left hand side

1шт.

11

321-912

DECAL

- caution winch, right hand arm rest

1шт.

12

321-1062

DECAL

- battery ground, under left hand arm rest

1шт.

13

321-3038

DECAL

- warning fuse, Serial Range: return-dig

1шт.

14

321-3090

DECAL

- trade mark right hand, 6 in with nine tread marks

1шт.

321-3091

DECAL

- trade mark left hand, 6 in with nine tread marks

1шт.

15

321-3119

DECAL

- 850, each side

2шт.

16

321-3121

DECAL

- trade mark, 6 in with eight tread marks

1шт.

17

321-3120

DECAL

- four tread marks

1шт.

18

321-920

DECAL

- loader controls, on dash

1шт.

19

321-2996

DECAL

- battery hazard

1шт.

20

321-3705

DECAL

- warning before starting engine, on dash

1шт.

321-2114

DECAL

- optional brake system, on heelplate

1шт.

321-4791

DECAL

- master maintenance schedule

1шт.
