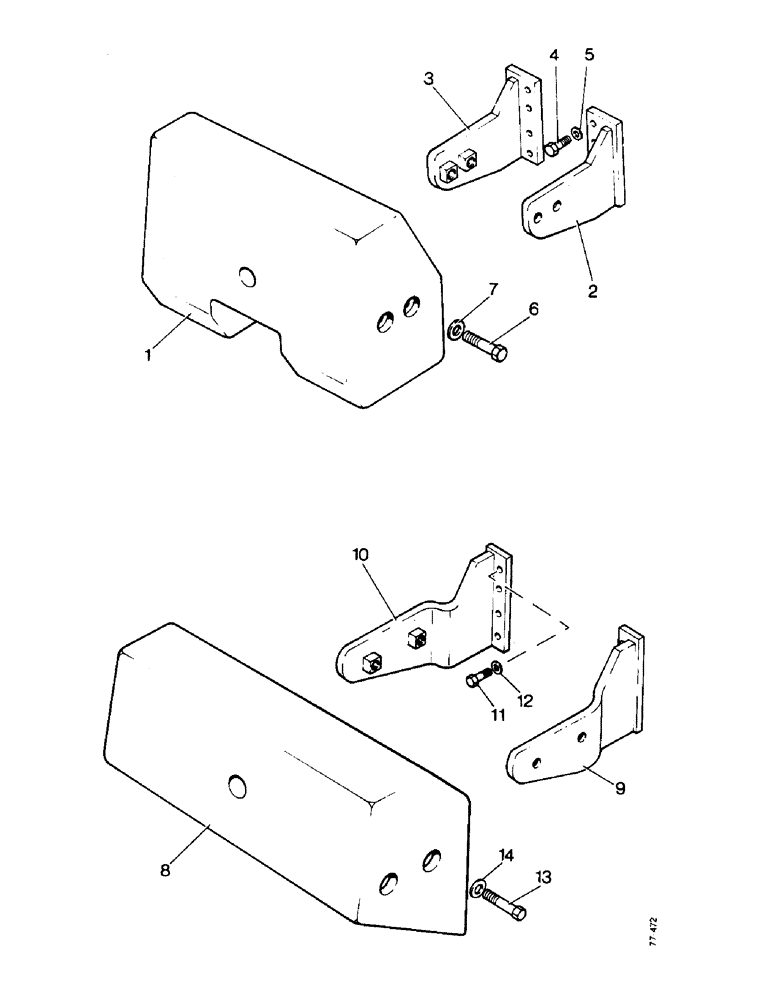

Запчасти Case 850 (L07-1) - LOADER COUNTERWEIGHTS (05) - UPPERSTRUCTURE CHASSIS

1

D40094

COUNTERWEIGHT - rear, 1800 lbs

1шт.

2

R24159

BRACKET

- mounting, right hand

1шт.

3

R24160

BRACKET

- mounting, left hand

1шт.

4

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

6

13-16120

SCREW,Hex, 1" - 8 x 7 1/2", Gr 5

BOLT, Hex, 1"-8 x 7 1/2", G5

4шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.

8

D38567

COUNTERWEIGHT - rear 2500 lbs, Drott Loader only

1шт.

9

D41072

BRACKET

- mounting, right hand

1шт.

10

D41071

BRACKET

- mounting, left hand

1шт.

11

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

13

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

14

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.
