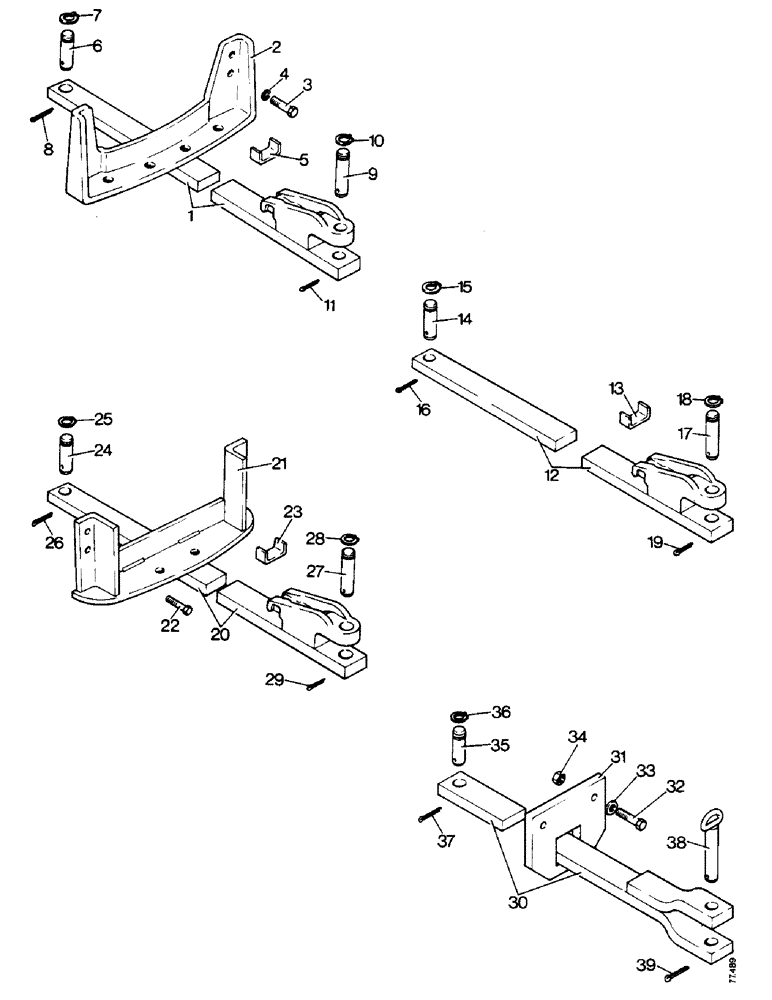

Запчасти Case 850 (L05-1) - DRAWBARS (05) - UPPERSTRUCTURE CHASSIS

1

NLS

NO LONGER SERVICED

DRAWBAR for use without rear mounted equipment

1шт.

2

D42095

NO LONGER SERVICED

GUIDE - drawbar for use without rear mounted equipment

1шт.

3

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

For use without rear mounted equipment Hex, 3/4"-10 x 1 1/2", G5

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , In for use without rear mounted equipment 3/4"

4шт.

5

R21902

PLATE

- wear for use without rear mounted equipment

1шт.

6

R21978

PIN

- drawbar mounting for use without rear mounted equipment

1шт.

7

R21976

RING

- snap for use without rear mounted equipment

1шт.

8

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use without rear mounted equipment 1/4" x 2"

1шт.

9

R21979

PIN

- drawbar hitch for use without rear mounted equipment

1шт.

10

R21976

RING

- snap for use without rear mounted equipment

1шт.

11

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use without rear mounted equipment 1/4" x 2"

1шт.

12

D30455

DRAWBAR for use with ripper

1шт.

13

R21902

PLATE

- wear for use with ripper

1шт.

14

R21978

PIN

- drawbar mounting for use with ripper

1шт.

15

R21976

RING

- snap for use with ripper

1шт.

16

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use with ripper 1/4" x 2"

1шт.

17

R21979

PIN

- drawbar hitch for use with ripper

1шт.

18

R21976

RING

- snap for use with ripper

1шт.

19

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use with ripper 1/4" x 2"

1шт.

20

D33312

DRAWBAR

for use with winch

1шт.

21

D32635

GUIDE

- drawbar for use with winch

1шт.

22

13-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- 7/8 UNC x 3 in for use with winch

4шт.

23

R21902

PLATE

- wear for use with winch

1шт.

24

R21978

PIN

- drawbar mounting for use with winch

1шт.

25

R21976

RING

- snap for use with winch

1шт.

26

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use with winch 1/4" x 2"

1шт.

27

R21979

PIN

- drawbar hitch for use with winch

1шт.

28

R21976

RING

- snap for use with winch

1шт.

29

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use with winch 1/4" x 2"

1шт.

30

D41083

DRAWBAR for use with backhoe

1шт.

31

D41082

BRACKET - support for use with backhoe

1шт.

32

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- 1 in UNC x 3 in for use with backhoe

2шт.

33

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special for use with backhoe

2шт.

34

25-1016

NUT,1"-8, G5

For use with backhoe 1"-8, G5

2шт.

35

R21978

PIN

- drawbar mounting for use with backhoe

1шт.

36

R21976

RING

- snap for use with backhoe

1шт.

37

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use with backhoe 1/4" x 2"

1шт.

38

R24105

DRAWBAR

PIN - drawbar hitch for use with backhoe

1шт.

39

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For use with backhoe 1/4" x 2"

1шт.
