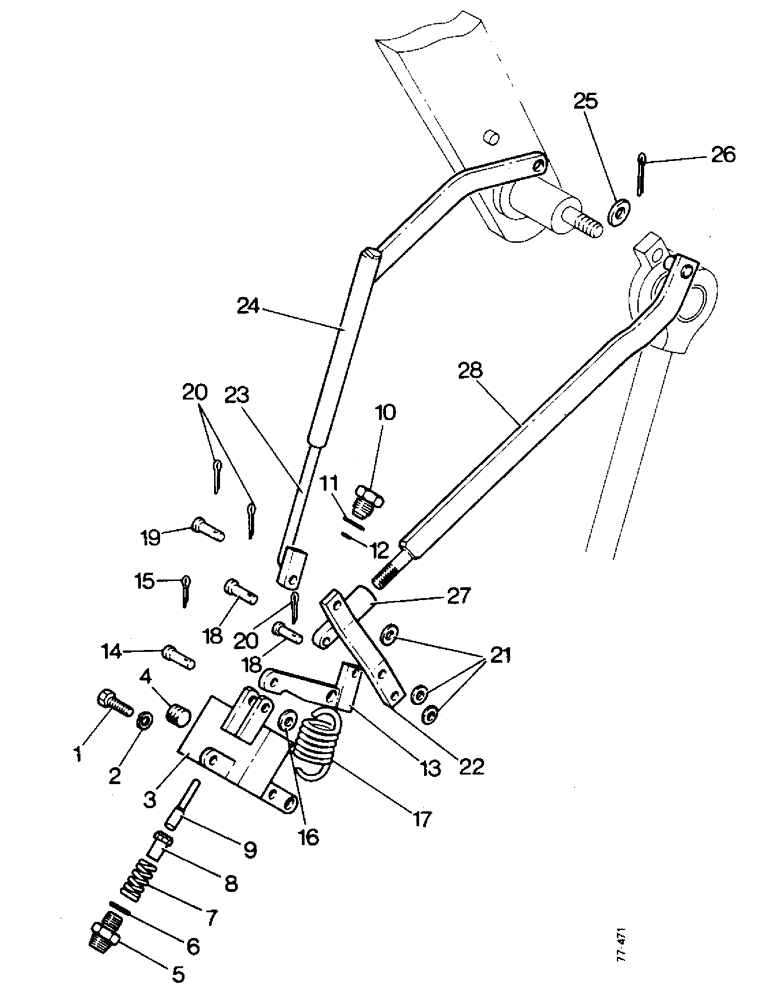

Запчасти Case 850 (J08-1) - ANTI-ROLLBACK MECHANISM (05) - UPPERSTRUCTURE CHASSIS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

D41050

VALVE

- hydraulic lock, anti rollback

1шт.

3

D41063

LOCK

BODY - valve

1шт.

4

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - body, 1/2 NPT

1шт.

5

D43832

FITTING

ADAPTOR - special

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

'O'RING

1шт.

7

D43831

SPRING

- restrictor

1шт.

8

D41036

FITTING

RESTRICTOR - flow control

1шт.

9

D41060

PLUNGER

- valve

1шт.

10

D41051

GLAND

- valve

1шт.

12

D41038

SEAL

'O'RING

1шт.

13

D41059

LEVER

- anti rollback control, at valve

1шт.

14

D42809

PIN

- clevis

1шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

16

195-25

WASHER,3/8"

- 3/8 in

1шт.

17

D41041

SPRING

- lever return

1шт.

18

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

19

141-11

CLEVIS PIN,3/8" x 1 1/4"

PIN - clevis

1шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

21

195-25

WASHER,3/8"

- 3/8 in

3шт.

22

D43128

- connecting, at rollback adjustment and pushrods

1шт.

23

D43127

ROD

- push, valve closing

1шт.

24

NLS

NO LONGER SERVICED

TUBE - push rod engagement

1шт.

25

195-33

WASHER,1/2"

- 1/2 in

1шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

27

D41044

ROD

END - rollback adjustment

1шт.

28

D41066

ROD

- rollback adjustment

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
