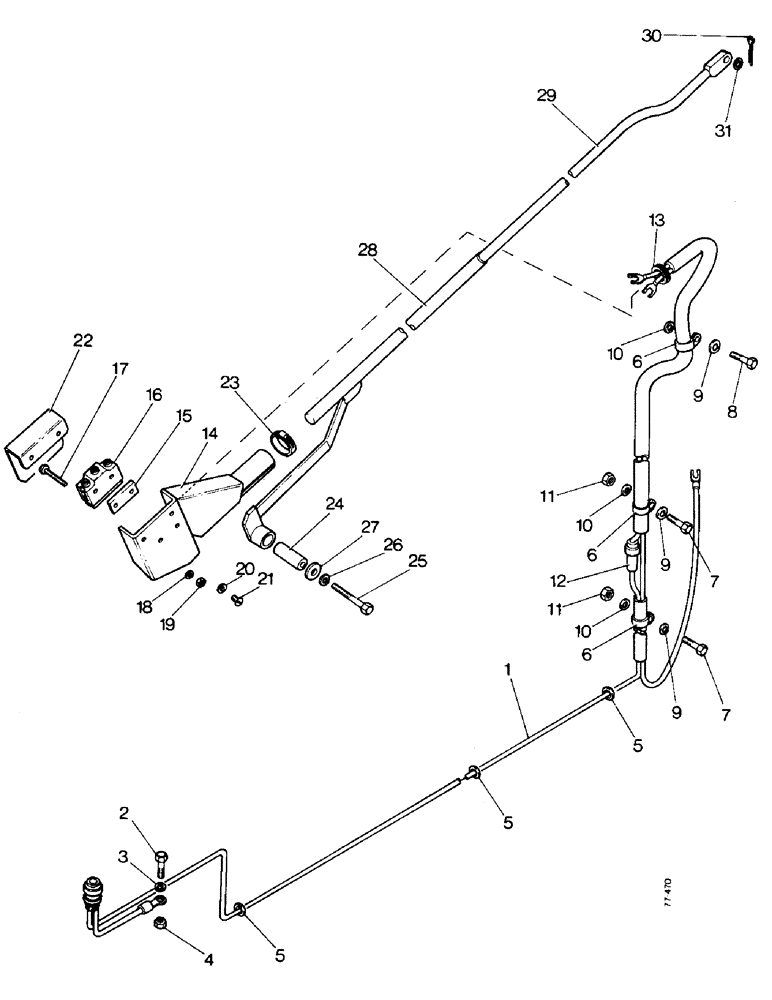

Запчасти Case 850 (J07-1) - RETURN TO DIG MECHANISM (05) - UPPERSTRUCTURE CHASSIS

1

E81199

HARNESS

- wiring

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8 UNC

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire tie

3шт.

6

49838

CLAMP

CLIP - cable

3шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

195-25

WASHER,3/8"

- 3/8 in

3шт.

11

25-106

NUT,3/8"-16, G5

- 3/8 UNC

2шт.

12

D44305

FUSE

- SLO BLO

1шт.

13

NLS

NO LONGER SERVICED

- rubber

1шт.

14

D40884

BOX

- switch

1шт.

15

D40924

SHIM

SPACER - switch

1шт.

16

E88234

SWITCH

- limit, Serial Range: return-dig

1шт.

17

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- No 6 UNC x 1.1/4 in

2шт.

18

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

19

129-15

NUT,#6-32

2шт.

20

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

21

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- No 8 UNC x 1/4 in

2шт.

22

D40922

COVER

- switch box

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - tube

1шт.

24

D40925

SPACER

SLEEVE - tube

1шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

195-25

WASHER,3/8"

- 3/8 in

1шт.

28

D40879

TUBE

- rod support

1шт.

29

D48677

ROD

- limit switch

1шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

31

195-33

WASHER,1/2"

- 1/2 in

1шт.
