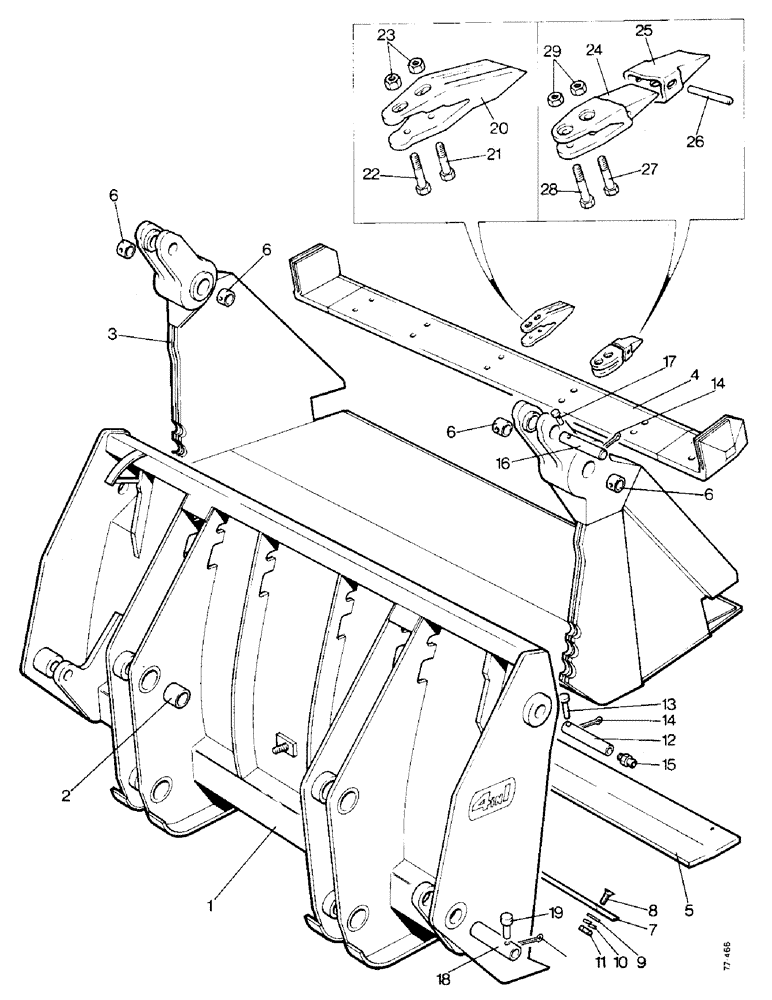

Запчасти Case 850 (J03-1) - 4-IN-1 BUCKET (05) - UPPERSTRUCTURE CHASSIS

E87865

BUCKET ASSEMBLY - 1.1/4 cubic yard, without teeth. Includes items shown on Figures J04-1 and J05-1

1шт.

1

E87692

BLADE ASSEMBLY

1шт.

2

E87696

BUSHING

BUSH - blade assembly

8шт.

3

E89119

BUCKET

CLAM ASSEMBLY

1шт.

4

E89120

BLADE

CUTTING EDGE - clam

1шт.

5

E87698

RADIATOR

PLATE - compaction

1шт.

6

E89121

BUSHING

BUSH - clam

4шт.

7

E87697

BLADE

- cutting edge

1шт.

8

19-1028

NUT,5/8" - 11 x 1 3/4", Gr 5

BOLT - plough, 5/8 UNC x 1.3/4 in

13шт.

9

95-10

WASHER,5/8"

- 5/8 in

13шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

11

25-1010

NUT,5/8"-11, G5

13шт.

12

E86207

PIN

-, Serial Range: clam-blade

2шт.

13

E86208

CLEVIS

PIN - clevis

2шт.

14

E86209

PIN

- split

6шт.

15

E86180

FITTING

- grease

2шт.

16

E86211

PIN

-, Serial Range: clam-cylinder

2шт.

17

E86208

CLEVIS

PIN - clevis

2шт.

18

E87695

PIN

- pivot

2шт.

19

E86226

PIN

- clevis

2шт.

ref

Part No.

English

1шт.

E88910

TOOTH

SET - single piece

1шт.

20

E88911

TOOTH

- bucket, single piece

8шт.

21

E88913

BOLT

- 1/2 UNF x 2.1/4 in, single piece tooth

8шт.

22

E88914

BOLT

- 1/2 UNF x 2.1/2 in, single piece tooth

8шт.

95-8

WASHER,1/2"

single piece tooth 1/2"

16шт.

23

25-118

NUT,1/2"-20, G5

- 1/2 UNF, single piece tooth

16шт.

ref

Part No.

English

1шт.

E87866

TOOTH SET - two piece, with shank

1шт.

24

E86215

SHANK

- tooth

8шт.

25

E86212

TOOTH

TIP - tooth, with shank

8шт.

26

138-307

LOCK PIN,3/8" x 2 3/8", Slotted

Pin, , tooth, with shank 3/8" x 2 3/8", Slotted

8шт.

27

E88913

BOLT

- 1/2 UNF x 2.1/4 in, tooth with shank

8шт.

28

E88914

BOLT

- 1/2 UNF x 2.1/2 in, tooth with shank

8шт.

95-8

WASHER,1/2"

tooth with shank 1/2"

16шт.

29

25-118

NUT,1/2"-20, G5

- 1/2 UNF, tooth with shank

16шт.
