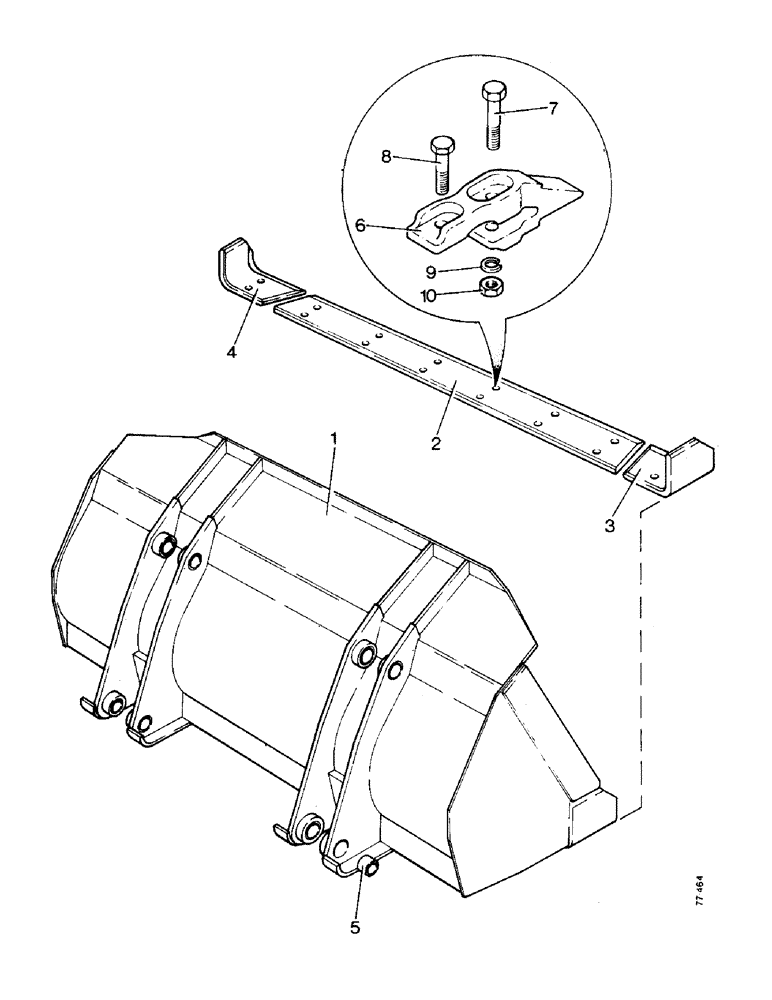

Запчасти Case 850 (J02-1) - LOADER BUCKET, 1.3/8 CUBIC YARD BUCKET WITH 9 IN CUTTING EDGE (05) - UPPERSTRUCTURE CHASSIS

1

E87999

BUCKET ASSEMBLY - without teeth

1шт.

2

E87934

CUTTING EDGE - centre, 9 in

1шт.

3

E87935

CUTTING EDGE - end, right hand

1шт.

4

E87936

CUTTING EDGE - end, left hand

1шт.

5

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

ref

Part No.

English

1шт.

1

D49232

BUCKET ASSEMBLY - without teeth, 1.3/8 cubic yard with 8" cutting edge

1шт.

2

D49231

CUTTING EDGE

- centre, 8 in, 1.3/8 cubic yard bucket with

1шт.

3

D49200

BLADE

CUTTING EDGE - end, right hand, 1.3/8 cubic yard bucket with 8"

1шт.

4

D49201

BLADE

CUTTING EDGE - end, left hand, 1.3/8 cubic yard bucket with 8"

1шт.

5

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear, 1.3/8 cubic yard with 8" cutting edge

8шт.

ref

Part No.

English

1шт.

E87931

TOOTH ASSEMBLY - bucket

8шт.

6

E87932

TOOTH

- bucket

8шт.

7

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth Hex, 5/8"-11 x 3 1/4", G5

8шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Bucket teeth Hex, 5/8"-11 x 2 1/2", G5

8шт.

9

195-41

WASHER,5/8"

- lock, 5/8 in, Bucket teeth

16шт.

10

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

16шт.
