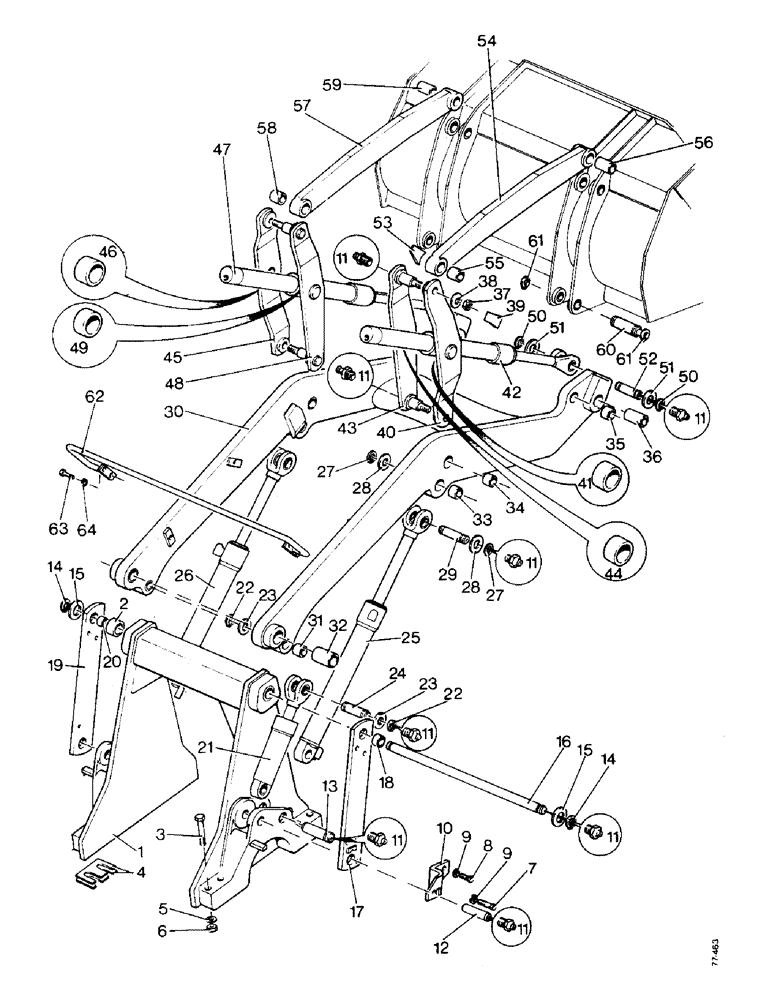

Запчасти Case 850 (J01-1) - LOADER - MECHANICAL PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D40062

FRAME - upright

1шт.

E89125

BRACKET - cab mounting

2шт.

2

D40443

BUSHING

- frame

2шт.

3

13-20104

BOLT,Hex, 1-1/4" - 7 x 6-1/2", Gr 5

- 1.1/4 UNC x 6.1/2 in

8шт.

4

D40034

SHIM,.0558" Thk

Upright frame .0558" Thk

1шт.

5

D38676

WASHER

- special

8шт.

6

230-41120

LOCK NUT,1 1/4"-7, GA

NUT - lock, 1.1/4 UNC

8шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

E81624

STRAP

- pin retaining, right hand

1шт.

E81623

STRAP

- pin retaining, left hand

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 NPT

16шт.

12

D40029

PIN

- Hydra levelling cylinder to upright frame

2шт.

13

D40028

PIN

- lift cylinder to upright frame

2шт.

14

D40439

RING

- retaining

2шт.

15

D41472

WASHER

- special

2шт.

16

D40042

ROD

SHAFT - pivot, lift frame

1шт.

17

R33819

STRAP

- tension, right hand

1шт.

18

D41446

BUSHING

- strap

1шт.

19

R33818

STRAP

- tension, left hand

1шт.

20

D41446

BUSHING

- strap

1шт.

21

G33635

CYLINDER

- hydraulic, Hydra Levelling, see Figure J12-1

2шт.

22

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

23

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1.13/16 in

4шт.

24

D40040

PIN

- Hydra Levelling cylinder to lift frame

2шт.

25

D32690

CYLINDER - lift, right hand, see Figure J13-1

1шт.

26

D32689

CYLINDER - lift, left hand, see Figure J13-1

1шт.

27

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.

28

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2.1/16 in

4шт.

29

D40041

PIN

- lift cylinder to lift frame

2шт.

30

D47983

FRAME - loader lift

1шт.

31

D40089

BUSHING

- at Hydra Levelling cylinder

2шт.

32

D41383

BUSHING

- at upright frame

2шт.

33

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

- at lift cylinder

2шт.

34

D43508

BUSHING

- at dump linkage

2шт.

35

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- at cump cylinder

2шт.

36

D33627

BUSHING

- at bucket

2шт.

37

25-1016

NUT,1"-8, G5

4шт.

38

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.

39

D40045

ELECTRICAL GAUGE

LEVELLING GAUGE - bucket, dump link

1шт.

40

D47988

LINK

- dump, right hand outer

1шт.

41

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

42

G32577

CYLINDER

- dump, right hand, see Figure J11-1

1шт.

43

D47990

LINK

- dump, right hand inner

1шт.

44

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

45

D47989

LINK

- dump, left hand outer

1шт.

46

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

47

G32578

CYLINDER

- dump, left hand, see Figure J11-1

1шт.

48

D47991

LINK

- dump, left hand inner

1шт.

49

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

50

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

51

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

4шт.

52

D40037

PIN,38.1mm OD x 127mm L

- dump cylinder to lift frame

2шт.

53

D40033

GAUGE

LEVELLING GAUGE - bucket dump arm

1шт.

54

D47864

LINK ASSY.

ARM - dump, right hand

1шт.

55

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- arm 2 in, at dump link

1шт.

56

D33627

BUSHING

- arm 3.1/4 in, at bucket

1шт.

57

D47865

POWER ARM

ARM - dump, left hand

1шт.

58

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- arm 2 in, at dump link

1шт.

59

D33627

BUSHING

- arm 3.1/4 in, at bucket

1шт.

60

R27061

PIN

- bucket

4шт.

61

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ex

8шт.

62

D43507

HANDLE

HANDRAIL - loader

1шт.

63

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

64

92-8

LOCK WASHER,1/2"

4шт.
