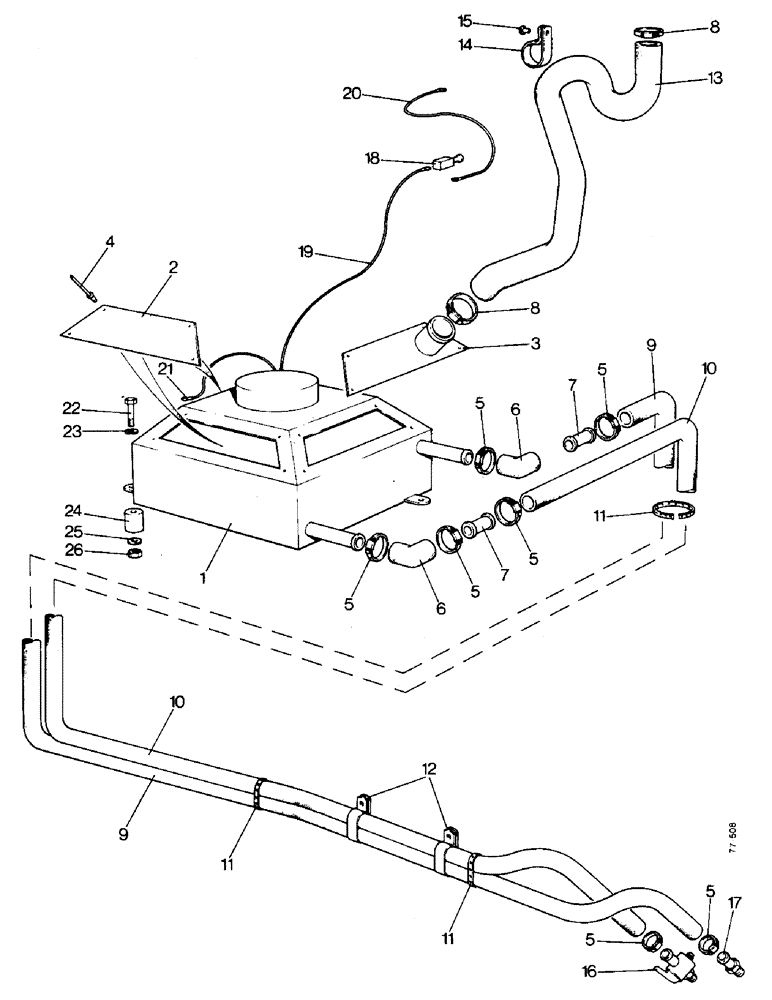

Запчасти Case 850 (G12-1) - DOZER CAB HEATER (05) - UPPERSTRUCTURE CHASSIS

E81155

HEATER ASSEMBLY - cab

1шт.

1

E87732

HEATER

UNIT - 12 volt

1шт.

2

E88007

COVER

- plain

2шт.

3

E88026

PLATE

COVER - adaptor

1шт.

E88008

PLATE

COVER - door

1шт.

4

E89452

RIVET

- heater covers

16шт.

5

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

8шт.

6

E87738

CONNECTOR, ELEC

ELBOW - 90

2шт.

7

E87739

HOSE

CONNECTOR - hose

2шт.

8

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

9

E81458

HOSE

- heater, 55 in

1шт.

10

E81459

HOSE - heater, 58 in

1шт.

11

D41076

STRAP

3шт.

D41075

STUD

- strap

3шт.

12

E81149

CLAMP

- hose

2шт.

13

E88020

HOSE

- demist

1шт.

14

E88021

CLAMP

CLEAT - demist hose

2шт.

15

E89432

RIVET

- avex

2шт.

16

E87737

VALVE

TAP - 3/8 NPT to 1/2 in hose

1шт.

17

E81151

ADAPTER

ADAPTOR - 3/8 BSP to 1/2 in hose

1шт.

18

E87733

SWITCH

- heater, 12 volt

1шт.

19

E81456

CABLE

- heater unit to heater switch, 108 in

1шт.

20

E81457

CABLE

- heater switch to ignition switch, 12 in

1шт.

21

E89232

TERMINAL CONNECTOR

TERMINAL - ring, 2 BA

1шт.

22

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

4шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

E87704

BLOCK

- heater mounting

4шт.

25

95-4

WASHER,1/4"

- 1/4 in

4шт.

26

25-104

NUT,1/4"-20, G5

4шт.
