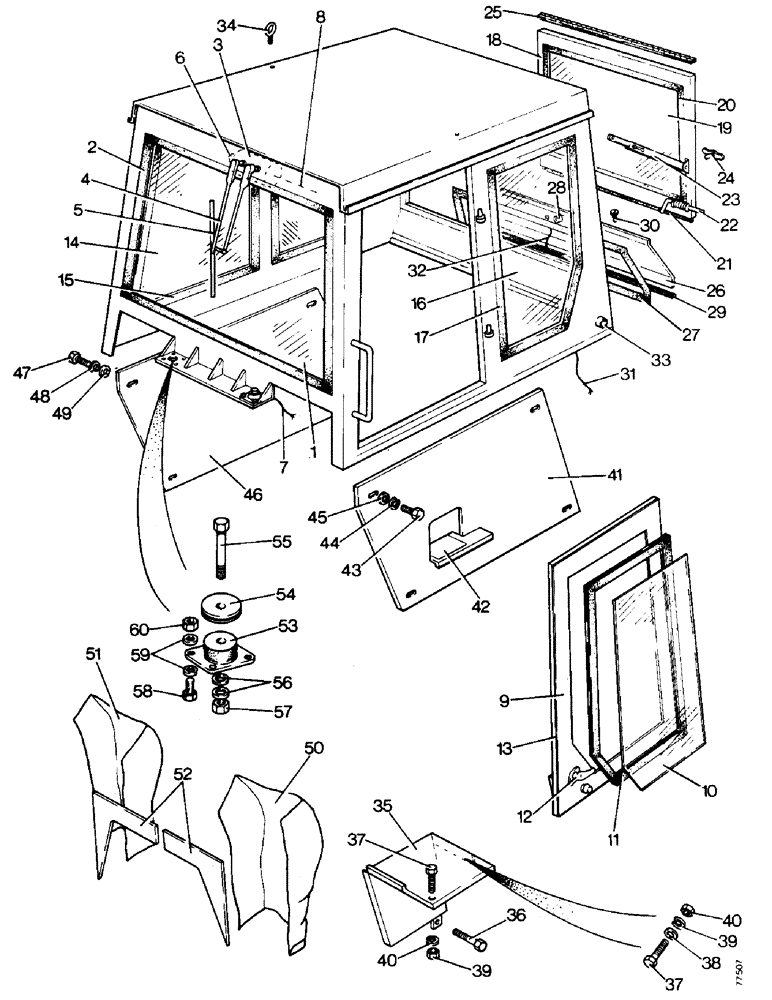

Запчасти Case 850 (G11-1) - LOADER CAB - TYPE 462 (05) - UPPERSTRUCTURE CHASSIS

E81177

CAB

- Loader, complete

1шт.

1

E89739

GLASS

WINDSCREEN - cab

1шт.

2

E89740

STRIP

WEATHERSTRIP - windscreen

1шт.

3

E81173

WIPER

MOTOR - windscreen wiper

1шт.

4

E81227

WIPER

ARM - wiper, 16 in panto

1шт.

5

E86434

WIPER BLADE

BLADE - windscreen wiper, 16 in

1шт.

6

E89462

SWITCH

- wiper motor

1шт.

7

E81197

CABLE - wiper motor supply, 96 in

1шт.

8

E81196

CABLE - wiper motor ground, 12 in

1шт.

9

E89744

DOOR

- cab, complete

1шт.

10

E89741

GLASS - door

1шт.

11

E89742

STRIP

WEATHERSTRIP - door glass

1шт.

12

E89754

LOCK

HANDLE - door locking, chrome

1шт.

E89433

LOCK

- door

1шт.

13

E81193

DOOR

DRAUGHT EXCLUDER - door

1шт.

14

E89753

GLASS

- front, right hand side window

1шт.

15

E89743

SPARE PART

WEATHERSTRIP - front, right hand side window

1шт.

16

E89752

SPARE PART

GLASS - rear, right and left hand side windows

2шт.

17

E89745

WEATHERSTRIP - rear, side windows

2шт.

18

E81175

DOOR - cab rear, complete

1шт.

19

E89749

GLASS - rear door

1шт.

20

E89748

X

WEATHERSTRIP - door glass

1шт.

21

E81191

DRAUGHT EXCLUDER - door

1шт.

22

E88887

BOLT

- spring loaded

2шт.

23

E89750

STAY

- door support

2шт.

24

E81219

HANDLE

- door locking, chrome

1шт.

25

E81204

HINGE - door

1шт.

26

E81210

BOOT LID - complete

1шт.

27

E81188

SEAL

DRAUGHT EXCLUDER - boot lid

1шт.

28

E81176

LOCK

- boot lid

1шт.

29

E81205

HINGE

- boot lid

1шт.

30

K11942

SCREW - 2 BA x 3/4 in

5шт.

31

E81197

CABLE - rear light supply, 96 in

1шт.

32

E81196

CABLE - rear light ground, 12 in

1шт.

33

E89747

RETAINER

- cab door stop

1шт.

34

E81174

EYE - lifting

2шт.

E81202

INSULATION - roof

1шт.

35

E89160

SPARE PART

STEP PLATE - left hand side

1шт.

E89210

SPARE PART

FLOOR PLATE - right hand side

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

38

95-6

WASHER,3/8"

4шт.

39

92-6

LOCK WASHER,3/8"

6шт.

40

25-106

NUT,3/8"-16, G5

- 3/8 UNC

6шт.

41

E81657

PANEL - side, left hand

1шт.

42

E89587

SPARE PART

STRIP - safety walk

1шт.

43

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

195-33

WASHER,1/2"

- 1/2 in

4шт.

46

E89223

PANEL, SIDE

PANEL - side, right hand

1шт.

47

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

195-33

WASHER,1/2"

- 1/2 in

4шт.

50

E89694

LINING

DRAUGHT EXCLUDER - left hand

1шт.

51

E89695

LINING

DRAUGHT EXCLUDER - right hand

1шт.

52

E89453

SPARE PART

DRAUGHT EXCLUDER

2шт.

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- No. 8 - 32 UNC x 3/8 in rear light ground cable securing

1шт.

129-16

NUT,#8-32

Rear light ground cable securing #8-32

1шт.

53

E89536

MOUNTING PARTS

MOUNTING - anti-vibration

4шт.

54

E89329

WASHER

- rebound

4шт.

55

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- 5/8 UNC x 4.1/4 in

4шт.

56

E89545

WASHER

- 5/8 in

8шт.

57

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8 UNC

4шт.

58

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

59

195-25

WASHER,3/8"

- 3/8 in

32шт.

60

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8 UNC

16шт.
